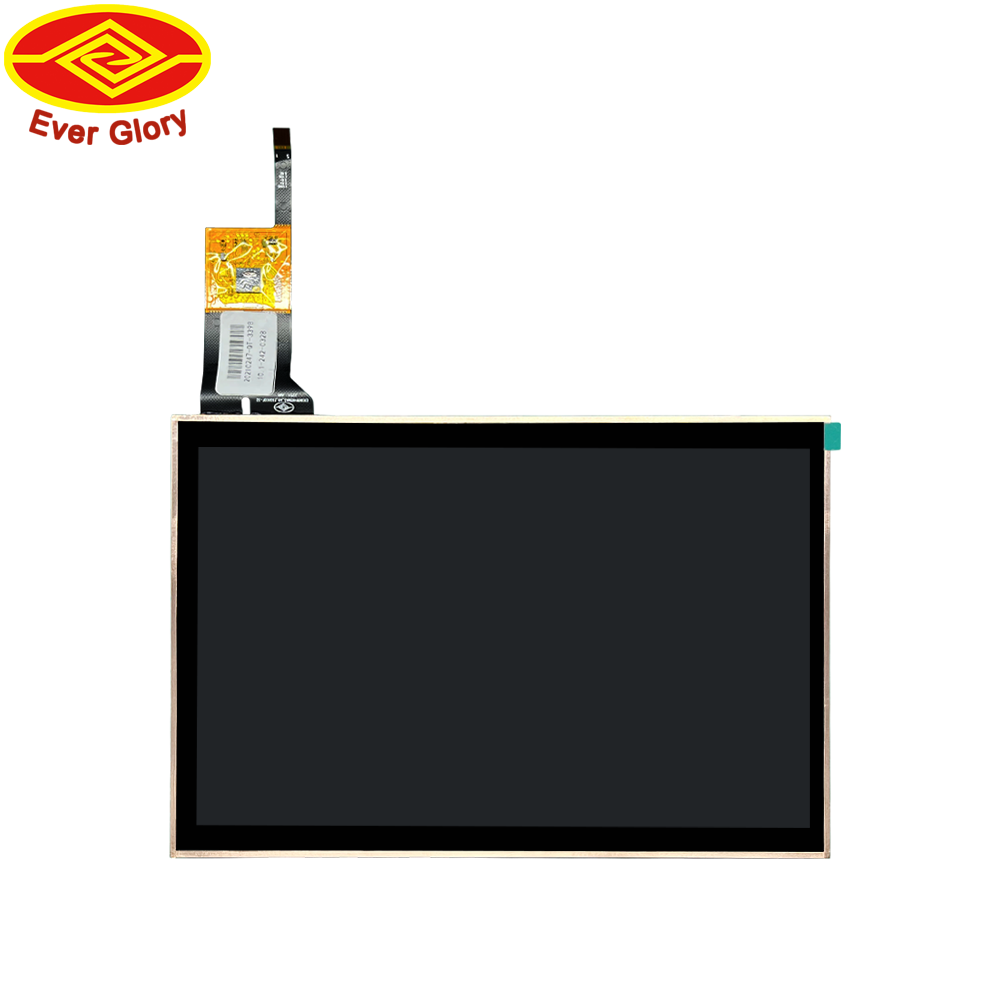

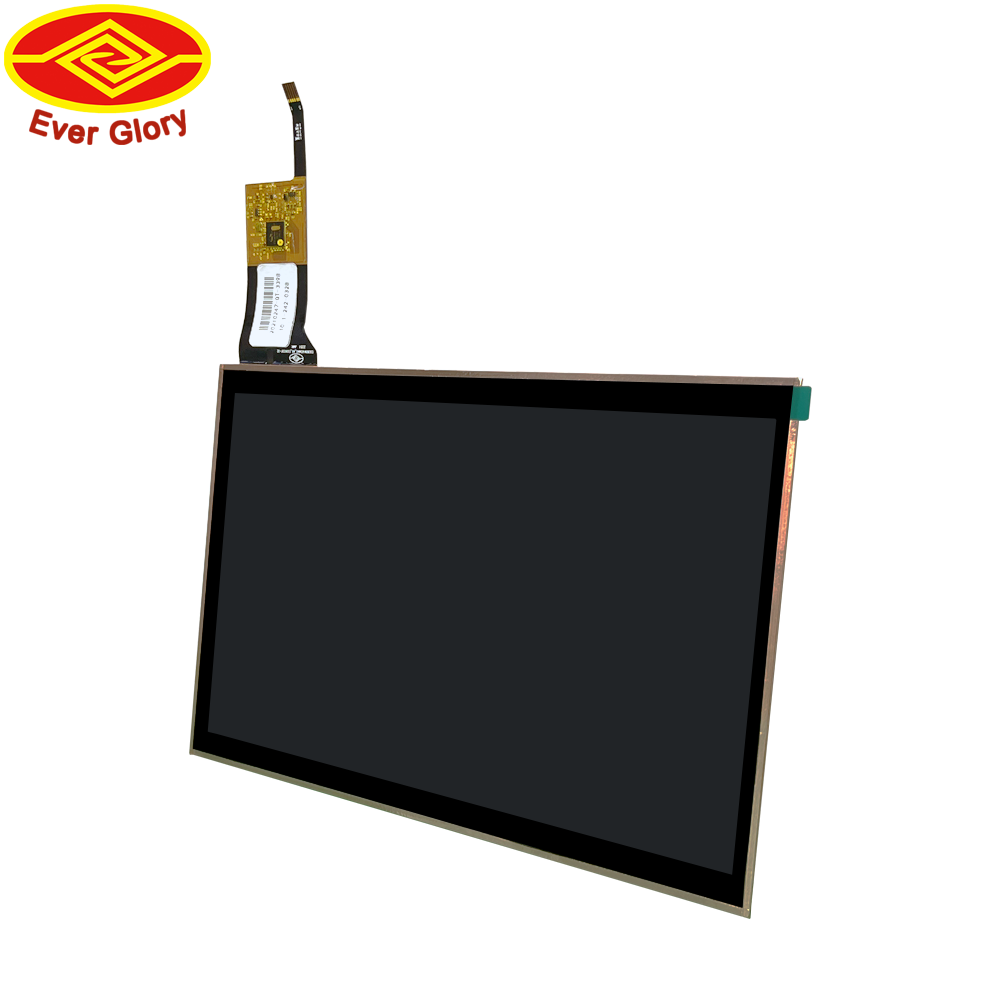

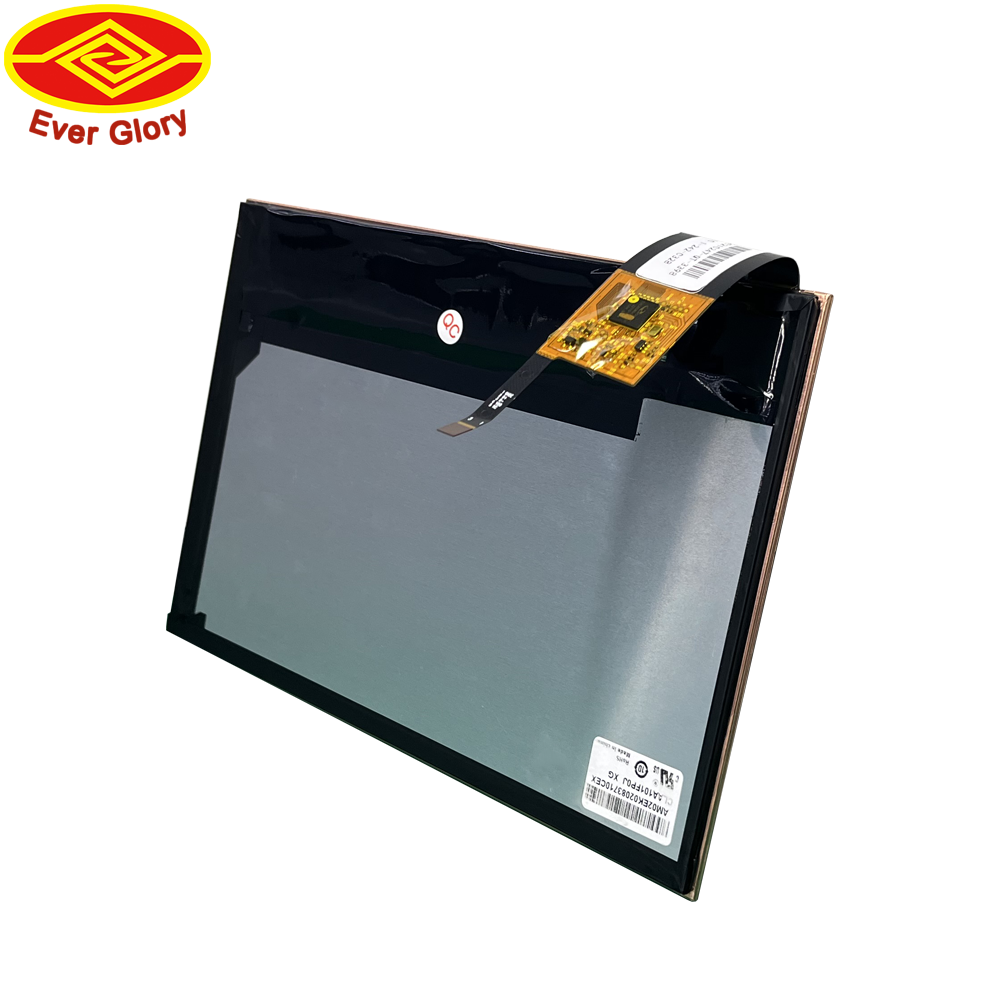

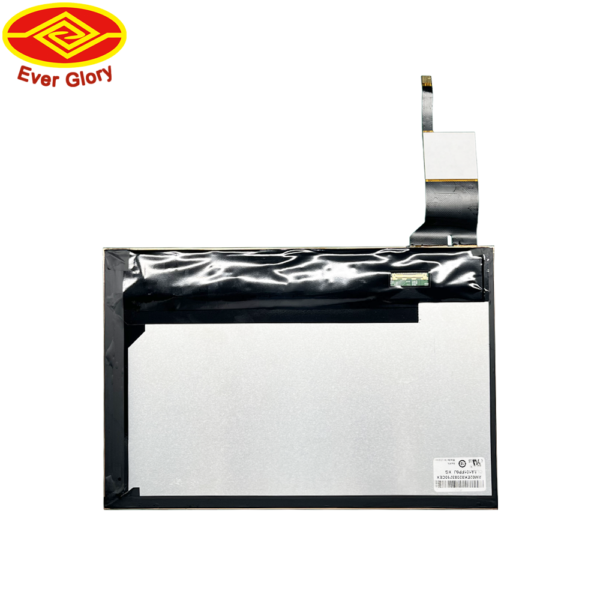

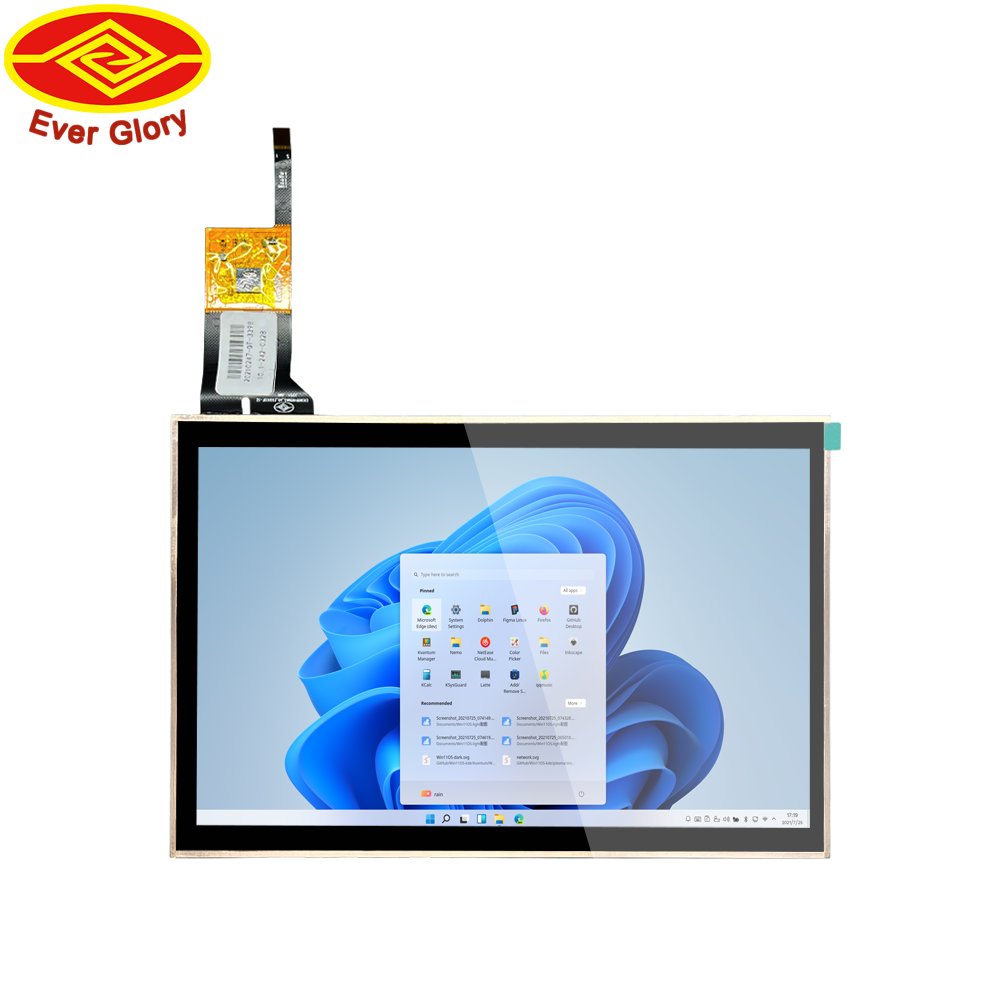

Tempered Glass 24 Inch LCD Display Panel COF Front

Additional information

Product Name

Touch With Display

Touch Panel P/N

EG-24-A-1609V1

Display P/N

G24HAN01.1

Screen Diagonal

24/16:9

Cover Outline Dimension

567.44*336.86mm

Touch Panel View Area

527.44*296.86mm

Touch Panel Active Area

528.44*297.86mm

Touch Panel Thickness

2.9mm

Display Outline Dimension

543*317.4mm

Display Active Area

527.04*296.46mm

Display Thickness

11.15mm

Total Thickness

15.05mm

Cover surface hardness

≥6H

Ink adhesion

≥4B

Impact resistance

≥IK07

Touch Points

10 points Typ.

Controller Interface

USB Typ.

Controller Supply Voltage

USB 5V Typ.

Touch Report Rate

≥100hz

Transmittance

>85%

Pixels H×V

1280 x R.G.B. x 800

Support Color

262k/16.7M

Contrast Ratio

1000 Typ.

Additional information

Product Name

Touch With Display

Touch Panel P/N

EG-24-A-1609V1

Display P/N

G24HAN01.1

Screen Diagonal

24/16:9

Cover Outline Dimension

567.44*336.86mm

Touch Panel View Area

527.44*296.86mm

Touch Panel Active Area

528.44*297.86mm

Touch Panel Thickness

2.9mm

Display Outline Dimension

543*317.4mm

Display Active Area

527.04*296.46mm

Display Thickness

11.15mm

Total Thickness

15.05mm

Cover surface hardness

≥6H

Ink adhesion

≥4B

Impact resistance

≥IK07

Touch Points

10 points Typ.

Controller Interface

USB Typ.

Controller Supply Voltage

USB 5V Typ.

Touch Report Rate

≥100hz

Transmittance

>85%

Pixels H×V

1280 x R.G.B. x 800

Support Color

262k/16.7M

Contrast Ratio

1000 Typ.

Dongguan Ever Glory Photoelectric Co., Ltd., founded in 2011, is a high-tech enterprise with independent intellectual property rights. We operate 20,000㎡ production facilities located in Shenzhen and Dongguan. We specialize in providing high-quality 5″ to 75″ G+G and G+F capacitive touch panels, display solutions, and touch monitors and panel PCs.

As a rapidly growing and innovative company, we were among the first in mainland China to initiate research and production of large-size PCAP technology, and we hold patents for lamination technology, equipment, and adhesives.

We are committed to being your one-stop touch solution partner. With over ten years of experience, we have developed extensive expertise across various applications, including industrial, outdoor, medical, banking, education, automotive, home automation,and entertainment sectors.

Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2.Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
