ENGINEERING-LED INDUSTRIAL SELECTION
Industrial Touch Screens
for HMI & Automation
From PCAP sensors to panel PCs, plan the right HMI integration for your equipment.
EverGlory helps OEM teams compare touch panels, display modules, industrial monitors and panel PCs, then review mounting, display and touch interfaces, and sample validation before prototype development.
From standalone PCAP sensors and optical-bonded display modules to panel-mount monitors and industrial panel PCs, each configuration is reviewed against your cabinet cutout, electrical noise environment and operator input conditions.
INDUSTRIAL HMI
ENGINEERING PRINCIPLES
- 01 · 4 Integration Levels
PCAP panel, display module, monitor and panel PC
- 02 · Configuration Controlled
Drawing, BOM, cable, controller and firmware revision
- 03 · Installed-System Focus
Touch behavior checked in the real host environment
- 04 · Relevant Test Records
Match internal checks and third-party reports to your selected configuration
01 / CHOOSE THE INTEGRATION BOUNDARY
Four Product Paths for Industrial Equipment
Use these four hardware levels as engineering starting points. The quoted model, interface, optical stack, enclosure and validation plan remain project-specific.
Custom PCAP Touch Panels
For OEMs that control the LCD, enclosure and host electronics and need a defined cover-glass, sensor, FPC and controller solution.
Touch Display Modules
For embedded industrial equipment that needs an LCD and PCAP touch stack with a controlled mechanical, optical and electrical interface.

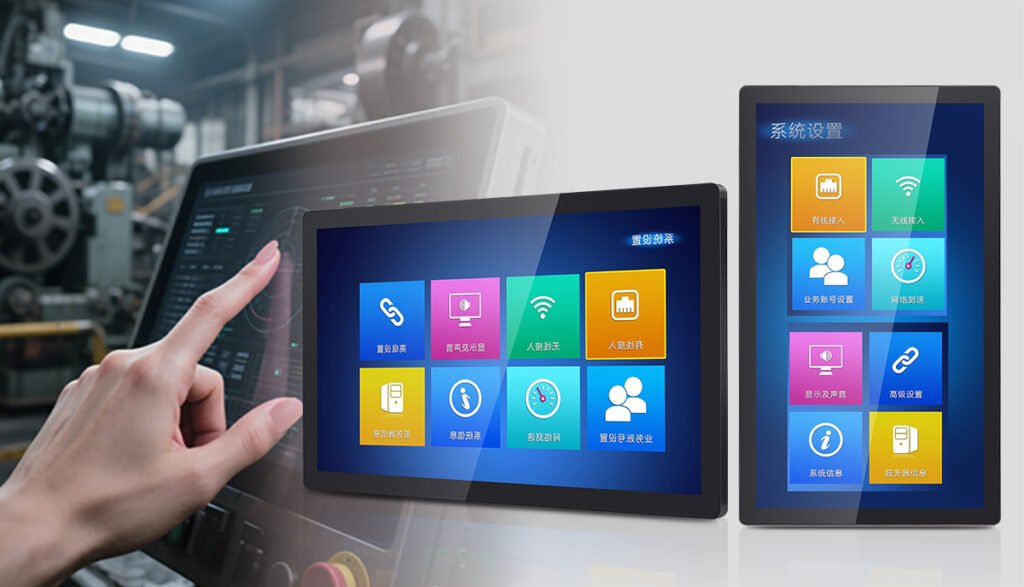

Industrial Touch Monitors
For machinery and control cabinets using video and touch interfaces with project-defined mounting, front sealing, brightness and housing requirements.

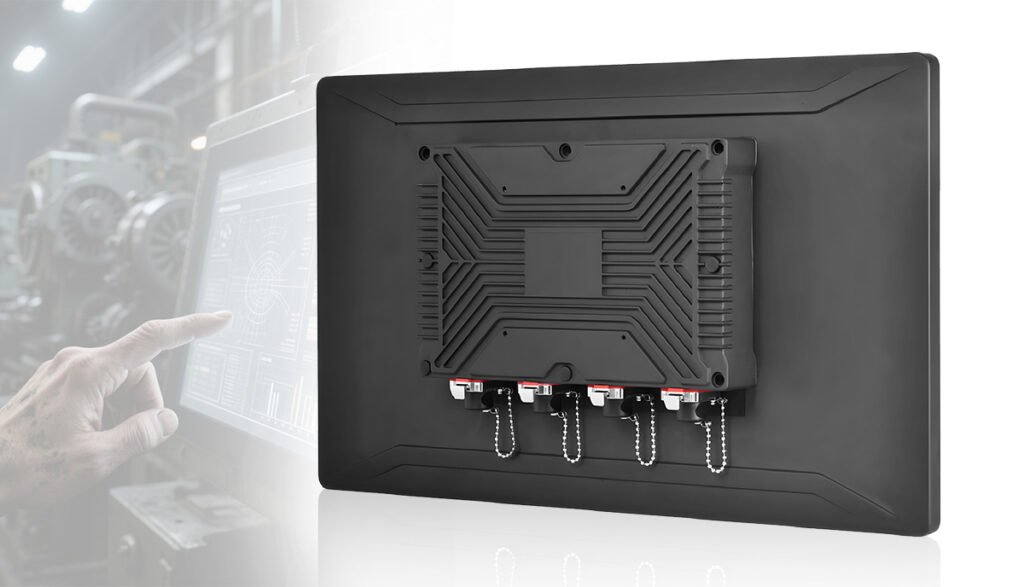

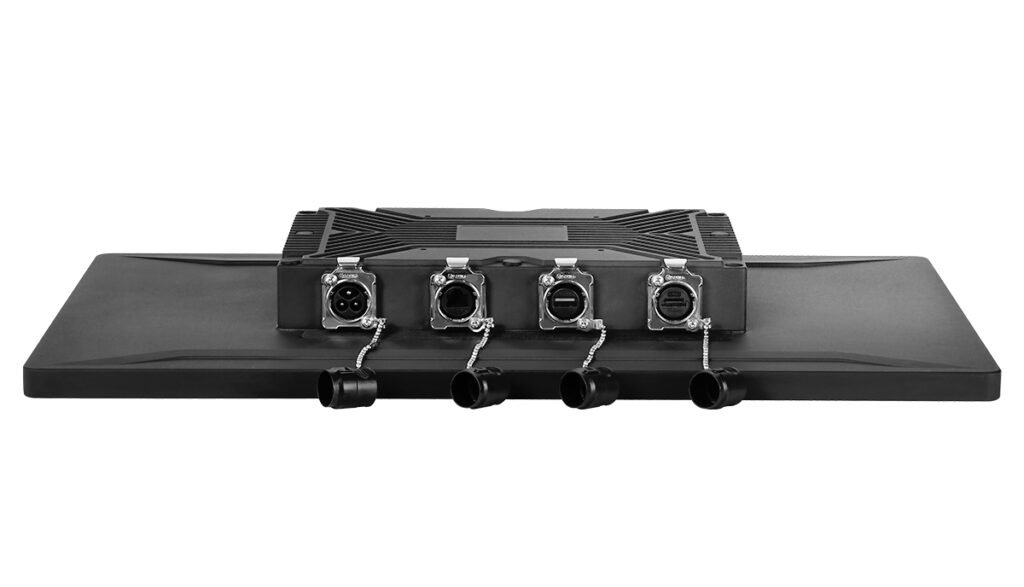

Industrial Panel PCs
For HMI terminals that combine display, touch, computing board, industrial I/O and enclosure thermal decisions in one configured system.
02 / DESIGN INPUTS & FACTORY ENGINEERING
Define Conditions Before Choosing Specifications
Factory operator panels face switching noise from drives, gloved or oily hands, washdown moisture and strict cabinet cutout tolerances.
Seven Required Design Inputs
Clarify these parameters before freezing your HMI configuration:
- Mechanical & Optical Datum: Viewing area, active area, outline and mounting datum.
- Cover-Glass Construction: Material, thickness, edge chamfering, cutouts and surface treatment (AG/AR/AF).
- Display Specification: LCD size, resolution, luminance, viewing angle and signal interface (LVDS/eDP/MIPI/HDMI).
- Touch & Grounding Route: Touch interface (USB/I2C/RS232), controller IC, FPC or cable route and chassis grounding.
- Operator Interaction: Bare finger, glove material/thickness, wet-touch, oil mist or active stylus requirements.
- Operating Environment: Ambient/storage temperature, humidity, vibration profile, cleaning agents and electrical noise.
- Compliance & Evidence Scope: Target market standards and required supplier qualification package.
VFD, Servo & Switching-Noise Mitigation
Review controller selection, available firmware settings, cable shielding and chassis grounding around cabinet noise sources. Define the applicable IEC 61000 parts, levels and acceptance criteria for testing in the installed system.

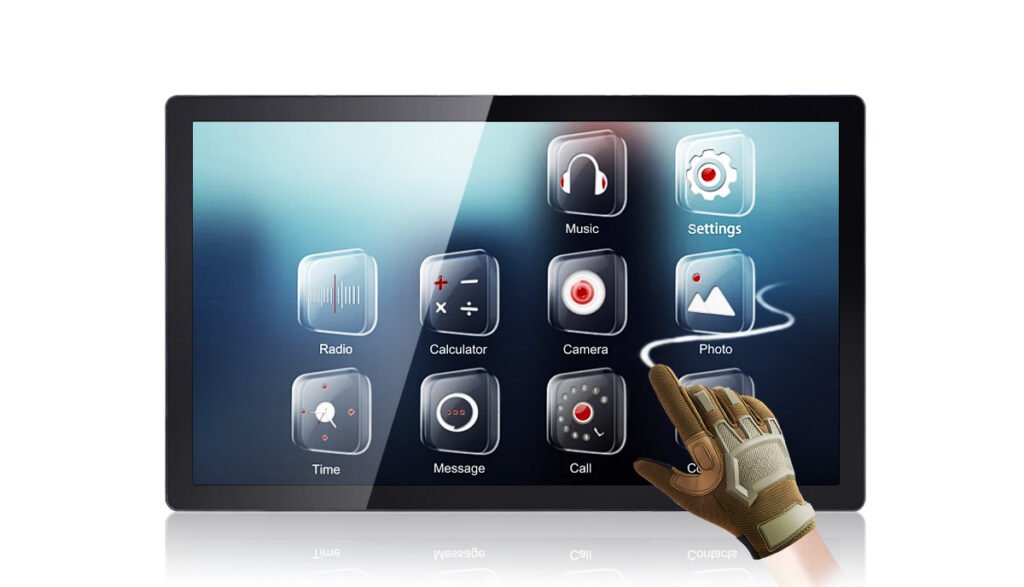

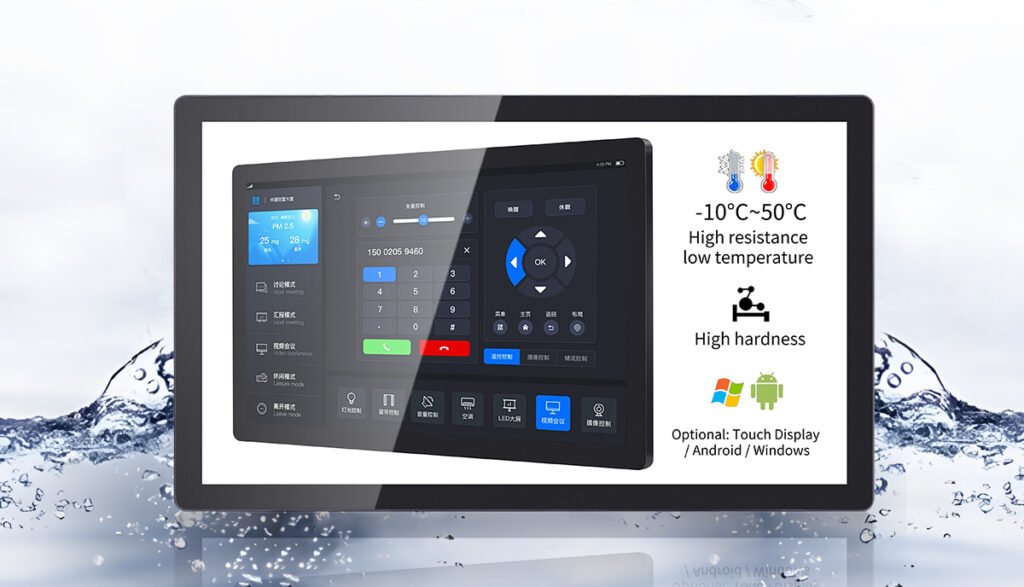

Work Gloves, Oil Mist & Washdown Tuning
Define the actual gloves, oil or coolant exposure, water conditions and required gestures, then evaluate controller tuning on a configured sample. Treat intentional input, false-touch rejection and washdown sealing as separate requirements.

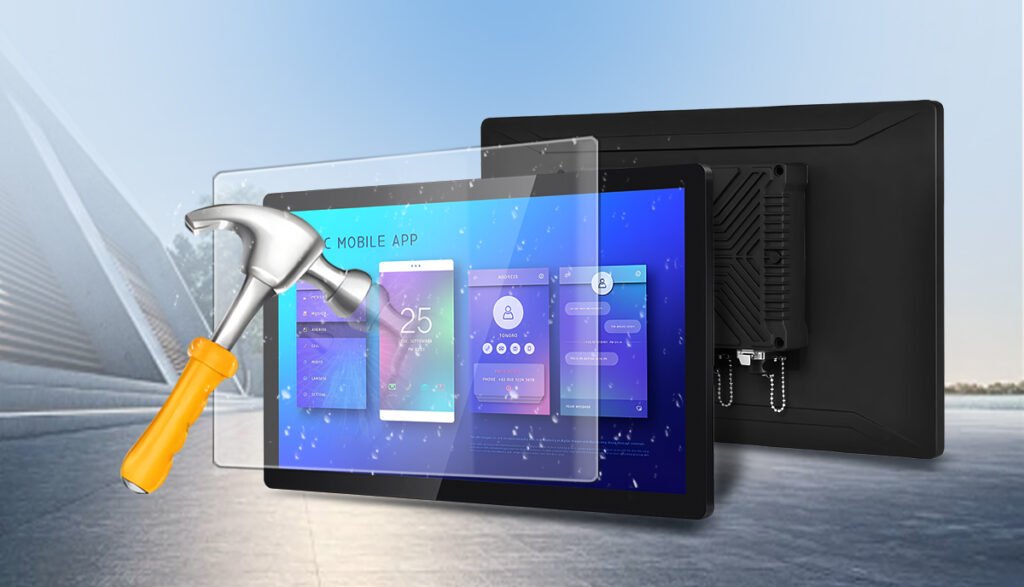

Anti-Glare Optics & Cover-Glass Durability
Define cover-glass thickness, edge chamfering, E-stop or button apertures, optical bonding and AG/AR/AF coatings around factory overhead lighting and impact targets.
Controlled BOM, Drawing & Revision Discipline
Freeze the approved drawing, display panel, touch IC, firmware parameter file and cable routing before pilot runs so repeat OEM batches stay consistent.
03 / MOUNTING & ENVIRONMENT MATRIX
How Cabinet Mounting and Field Conditions Shape the HMI Stack-Up
Match your installation structure and factory environment with the appropriate mechanical, optical and controller design approach before sample build.
Engineering selection reference. Front-panel ingress protection, EMC immunity and touch tracking depend on the complete installed assembly and agreed test conditions.
↔ Scroll sideways to see all columns on small screens. Keyboard: focus table and use ← and →.
| Installation / Field Condition | Recommended Stack-Up & Design Approach | Validation & Boundary Checkpoint | Applicable Product Paths |
|---|---|---|---|
| Panel-Mount Control Cabinet (Front IP65 Target) | Flush cover glass with perimeter gasket, panel-mount clamps or studs, and rigid front bezel support. | Front-panel ingress check on the installed cutout; front protection does not establish whole-enclosure IP rating. | Touch Monitors, Panel PCs |
| Open-Frame Rear / Flush Bezel Integration | Rear side-brackets or flange mounting aligned to the customer's front housing opening and gasket datum. | Mechanical stack-up tolerance review, viewing-area alignment and bezel compression check. | Touch Display Modules, Open-Frame Monitors |
| High-EMI Cabinet (Near VFDs, Relays & Servo Drives) | Controller and firmware options selected with cable shielding, FPC routing and chassis grounding for the identified noise sources. | Define the applicable IEC 61000 parts, including ESD and EFT where required, with test levels, ports and acceptance criteria; validate in the installed host setup. | PCAP Panels, Display Modules, Monitors, Panel PCs |
| Gloved, Oily or Wet-Washdown Operation | Evaluate available glove and wet-touch settings with the cover-glass thickness, dielectric stack and system grounding. | Sample validation using the actual glove material/thickness, liquid droplets or film, and operator gestures. | PCAP Panels, Display Modules, Monitors, Panel PCs |
| High Ambient Bay Light or Semi-Outdoor Canopy | Optical bonding paired with AG/AR surface treatment and brightness selected for ambient lux and thermal budget. | Optical inspection (bubble/Mura check), readability review and enclosure thermal measurement. | Touch Display Modules, Monitors, Panel PCs |
| Continuous Machine Vibration & Thermal Swing | Review bonding method, FPC strain relief, connector retention and LCD selection against the mechanical and thermal requirements. | Validate against the agreed operating/storage temperature profile and vibration spectrum on the mounted assembly. | Touch Display Modules, Monitors, Panel PCs |
04 / VALIDATION LOOP & SUPPLIER EVIDENCE
Sample Validation and Supplier Documentation
Coordinate sample validation gates, procurement deliverables and configuration-matched compliance records in one structured workflow.
SIX-STEP VALIDATION LOOP
From Requirement Review to Controlled Production
- 01
Requirements
Collect drawing, interface, environment and acceptance targets.
- 02
DFM Review
Review stack-up, tolerances, cable exit, mounting and service needs.
- 03
Configuration Freeze
Freeze the proposed display, touch, controller and mechanical configuration.
- 04
Prototype Build
Build an identified sample revision and record firmware/hardware settings.
- 05
Installed Validation
Evaluate the sample under agreed conditions in the host setup and close findings.
- 06
Production Handover
Release drawing, BOM, control plan, inspection items and change process.
EVIDENCE-LED SOURCING
Documents Procurement Should Request
Use these four document gates to keep engineering and purchasing aligned from prototype to pilot run:
Scroll sideways for all document gates. Keyboard: focus the table and use the arrow keys.
| Document | Purpose | Acceptance Gate |
|---|---|---|
| Approved specification & approval drawing | Defines the commercial and technical baseline. | Revision agreed before sample or order. |
| Prototype verification record | Links observations to sample configuration and test conditions. | Issues assigned and closed before the next build. |
| Compliance applicability matrix | Maps requested standards to available model documents. | Model and report scope confirmed before release. |
| Production control & traceability plan | Defines IQC, FAI, IPQC, OQC and change controls. | Released before pilot or mass-production build. |
SUPPLIER-QUALIFICATION EVIDENCE
Documented Evidence Available for an Industrial HMI RFQ
The records below are examples from the company document register. Confirm the model, revision, test conditions and report scope against your selected configuration.
PCAP Touch Panel Evidence
- CE EMC attestation:
AOC2502T60408E-02 - RoHS report:
2502T60409E(10.1-inch tested sample) - Production quality control route:
WI-QC-015-001
Touch Display Module Evidence
- CE EMC attestation:
AOC2502T60410E-02 - RoHS:
2502W60411E(10.1-inch tested sample); REACH:DG3240326-15563E - Optical-bonding process control route where specified
Industrial Monitor & Panel PC Evidence
- Monitor FCC Part 15B report:
2502Z30476E-00(YL-133MT1C-V1 reference) - Monitor and panel-PC CE / REACH documentation files
- Installed-system validation defined by final configuration
05 / COMMON ENGINEERING QUESTIONS
Frequently Asked Questions for Industrial HMI Projects
Practical answers on integration boundaries, glove and wet-touch tuning, cabinet EMC, front-panel sealing and RFQ inputs.
Which product level should an industrial HMI project start with?
Start with the integration boundary. Choose a Custom PCAP Touch Panel when your team controls the LCD and mechanics, a Touch Display Module when a combined LCD and touch stack is needed, an Industrial Touch Monitor for standard video and touch interfaces, or an Industrial Panel PC when computing and I/O are included.
Can wet or glove touch be guaranteed from a generic product statement?
No. Glove material and thickness, water or oil condition, cover-glass thickness, grounding, controller selection and the installed host system must be defined and evaluated together on a configured sample.
How is EMC risk handled for factory control cabinets?
EverGlory reviews grounding, FPC and cable routing, shielding, controller configuration and installed-system behavior. A formal compliance statement requires the applicable test record or third-party report for the defined product configuration.
What is the difference between a front-panel IP65 target and a whole-device IP rating?
A panel-mount monitor or panel PC often targets IP65 protection at the front bezel only—which depends on a flat cabinet cutout, proper gasket compression and clamp torque. Rear electronics and cable exits remain inside the cabinet unless a fully sealed enclosure is specified and tested.
Do management-system certificates or sample CE/FCC reports cover every custom configuration?
No. Management-system documents cover the named organization, sites and activities. Product reports cover the specified samples, tests and configurations. Confirm the current document status and its applicability to your BOM, mechanical revision and final equipment.
What should be sent for an engineering quotation?
Send your target screen size or active area, mechanical drawing (DXF, STEP or PDF), display brightness/interface requirements, mounting method, operating environment (EMI, gloves, moisture, temperature), required standards and estimated prototype or annual volume.
06 / START YOUR INDUSTRIAL HMI PROJECT
Choose the Correct Industrial Integration Level
Send your application, mechanical drawing, display requirement, interfaces, installation method, operating environment and project stage.
Our engineering team will review your parameters and recommend the appropriate PCAP panel, touch display module, industrial monitor or panel-PC path, along with the applicable validation and compliance scope.
