Custom PCAP Touch Panels
for OEM Industrial Projects
Factory-direct projected capacitive touch panels with custom cover glass, FPC, USB HID/I2C interface, controller tuning and optical bonding support for European OEMs.
Built Around Your Housing, Mainboard and Operating Environment
Custom PCAP projects are decided by the details: active area, outer dimension, cover glass, FPC exit, controller protocol, bonding stack and environmental tuning. This page keeps those decisions visible before sample tooling starts.
Custom Size and Cover Glass
4.3 to 75 inch project range with printed border, logo, rounded edge, shaped glass, strengthened glass and AG / AR / AF surface options.
USB / I2C / RS232 Options
Controller selection for Windows, Linux, Android and embedded boards, with touch tuning for wet, glove and EMI-sensitive use.
FPC Customization
Tail length, exit direction, stiffener, connector pitch and pinout can be aligned with your PCB and enclosure layout.
Optical Bonding Support
For sunlight readability, condensation control, impact resistance and a tighter front-stack feel in professional equipment.
Fast Parameters for Engineering and Procurement Screening
Use this matrix to check whether the project fits before uploading a drawing. Final values are confirmed after mechanical and electrical review.
| Item | Typical Range | Custom Choices | RFQ Detail to Confirm |
|---|---|---|---|
| Panel size | 4.3 to 75 inch project range | 4.3, 7, 10.1, 15.6, 21.5, 32, 55, 75 inch by project | Outer dimension, active area, visible area and tolerance. |
| Sensor structure | G+G, G+F+F | Industrial, medical, kiosk and embedded device stacks | Thickness, optical target, impact needs and cost target. |
| Interface | USB HID / I2C | RS232, custom FPC pinout and connector direction | Host board, OS, cable length and grounding method. |
| Cover glass | Shaped glass, 0.3-6 mm | AG / AR / AF, printing and strengthened lens | Color, border width, logo, edge profile and cosmetic standard. |
| Touch performance | 1-10 touch points | Wet touch, glove touch, palm rejection by project | Water condition, glove material, EMI and operating temperature. |
| Assembly | Air bonding or optical bonding | LCD matching and touch display module assembly | Brightness, reflection, condensation and enclosure design. |
Where Custom PCAP Panels Usually Win the RFQ
These projects need supplier input beyond a catalog part number because the front glass, FPC and controller must match the final device.
Industrial Controllers
EMI attention, stable USB touch and cover glass matched to metal enclosures.
Medical Devices
Clean front glass, documentation exchange and stable touch with protective gloves.
Self-Service Kiosks
Durable front surface, optical bonding option and scalable batch supply.
Transport Equipment
Vibration-aware FPC routing, sunlight readability and locked connector planning.
Outdoor Panels
Wet touch, UV-resistant printing, AG coating and sealed-front coordination.
Custom Instruments
Low-volume sample support before committing to tooling and volume production.
Give Your Team the Right RFQ Starting Point
Each file is lightweight and built for quick qualification. The download buttons are instrumented for GTM using the requested event hook.
PCAP size range, cover glass choices, interfaces and tuning options.
Download DatasheetOutline review checklist for active area, visible area, FPC and cover glass.
Download CAD PDFController, grounding, bonding and enclosure notes for OEM engineers.
Download GuideFactory Evidence for Procurement Confidence

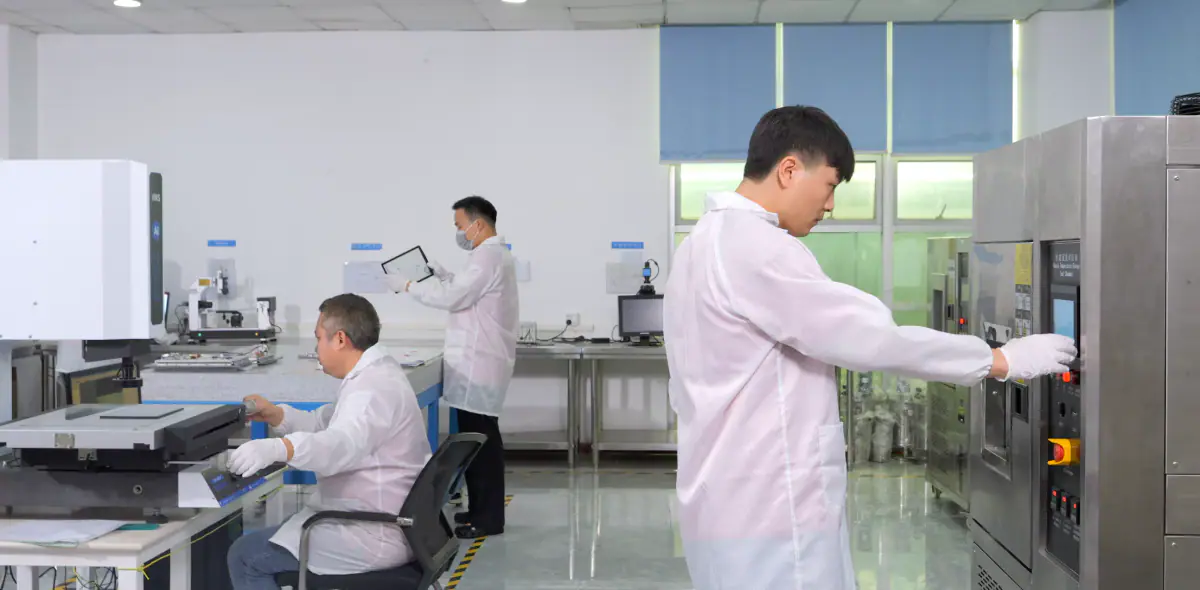

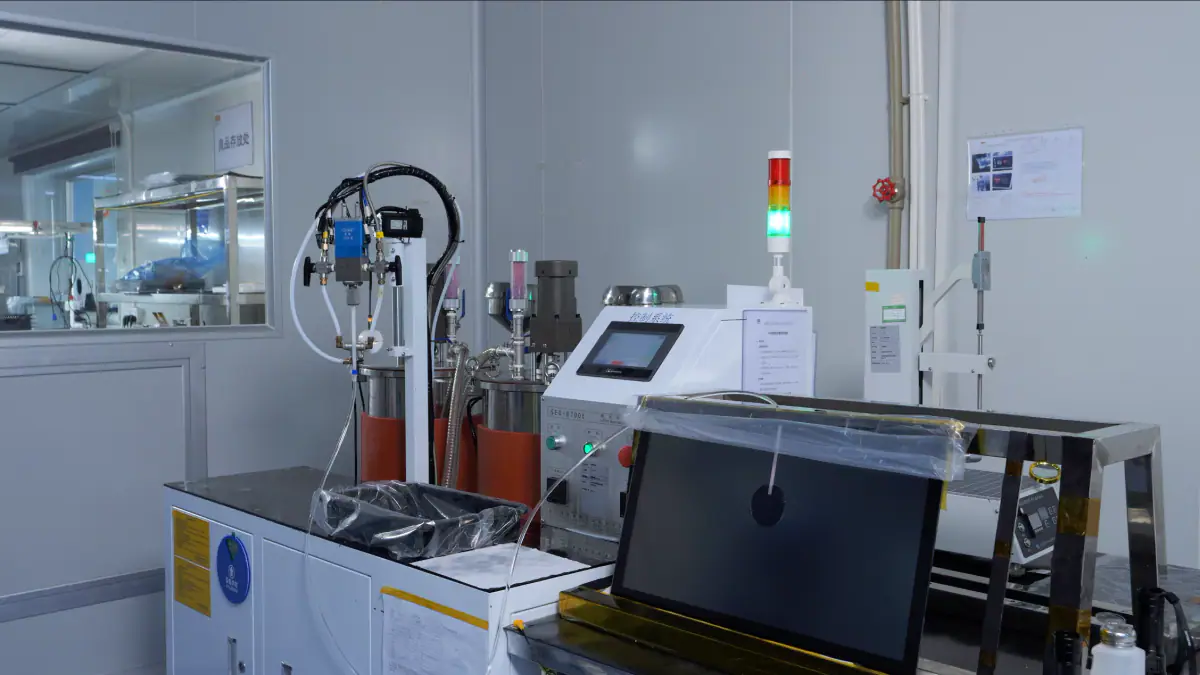

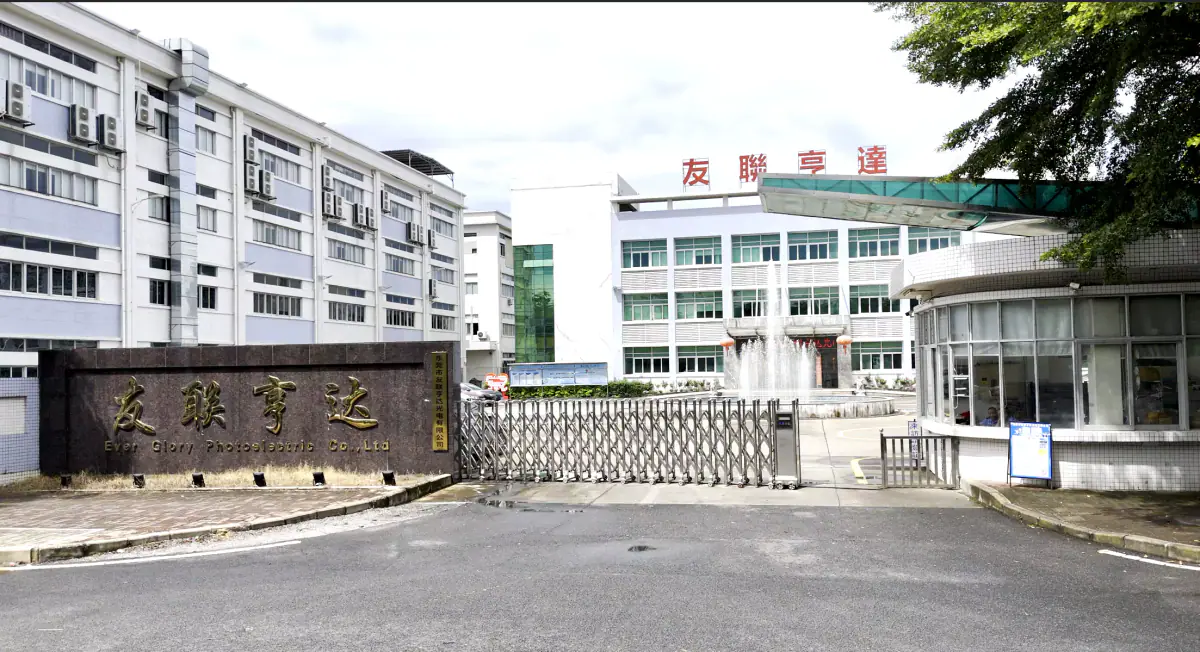

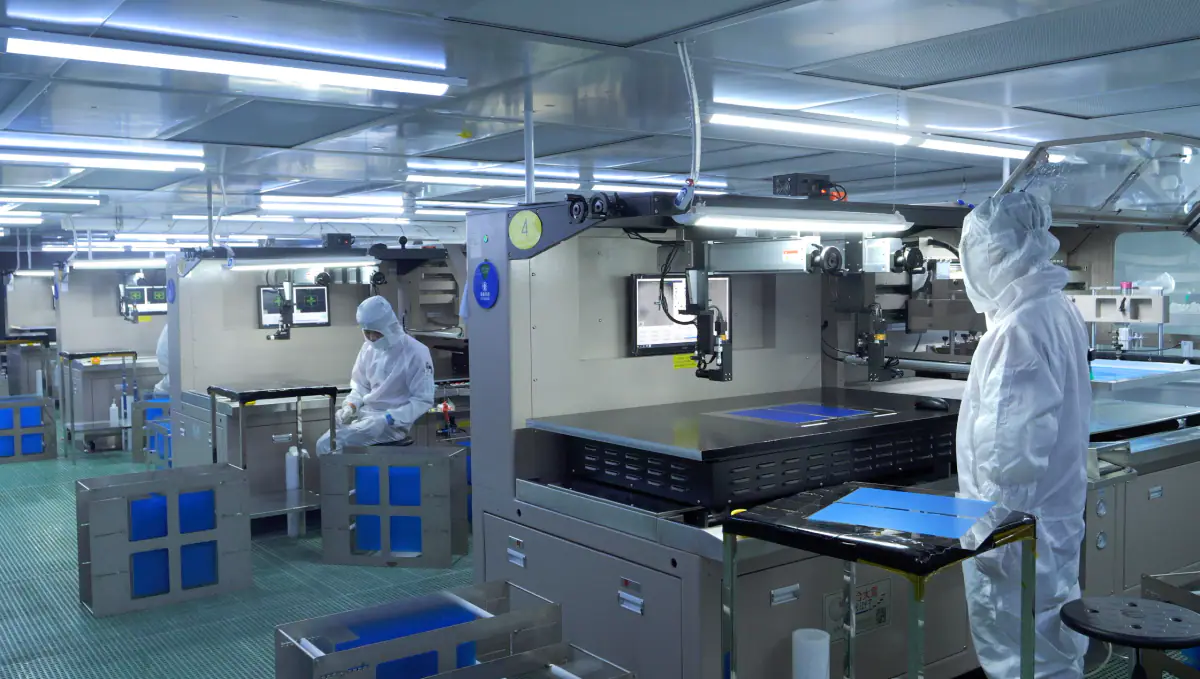

Show the production base, bonding process and testing discipline before asking a European buyer to send drawings or forecast quantities.
Send the Drawing Before the Housing Is Frozen
Upload a 2D drawing, CAD screenshot or basic sketch. EverGlory can check cover glass geometry, FPC direction, touch controller and bonding risk before sample cost is locked.
Upload Drawing
Outer dimension, active area, viewing area, FPC exit and connector target.
Engineering Review
Controller, interface, bonding, cover glass and environmental details checked.
Sample Route
Receive feasibility notes, quote direction, tooling needs and next questions.
Common Questions Before a Custom PCAP RFQ
Can EverGlory customize the FPC tail and connector?
Yes. FPC length, exit direction, stiffener, connector position and pinout can be reviewed against your mechanical drawing and PCB layout.
Can you support wet touch or glove touch?
Yes, but the controller, glass thickness, grounding and real use condition need to be checked together. Share water exposure, glove material and OS details during RFQ.
Do you offer optical bonding with LCD modules?
Yes. PCAP panels can be supplied alone or coordinated with LCD matching and optical bonding when the project needs a complete touch display stack.
What files should we upload for the fastest response?
A 2D drawing, target size, cover glass thickness, interface, controller preference, annual volume and application environment are enough for an initial engineering check.
Ready to check your PCAP drawing?
Send the outer dimension, active area, cover glass target and interface requirement. EverGlory will help confirm the practical stack before prototype tooling.
