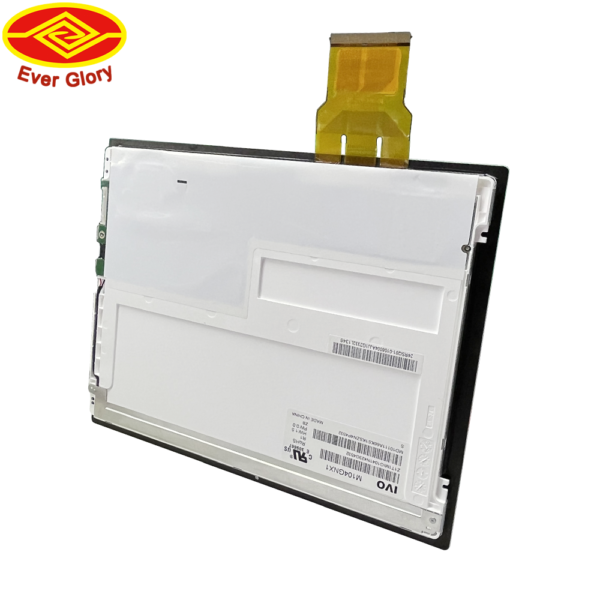

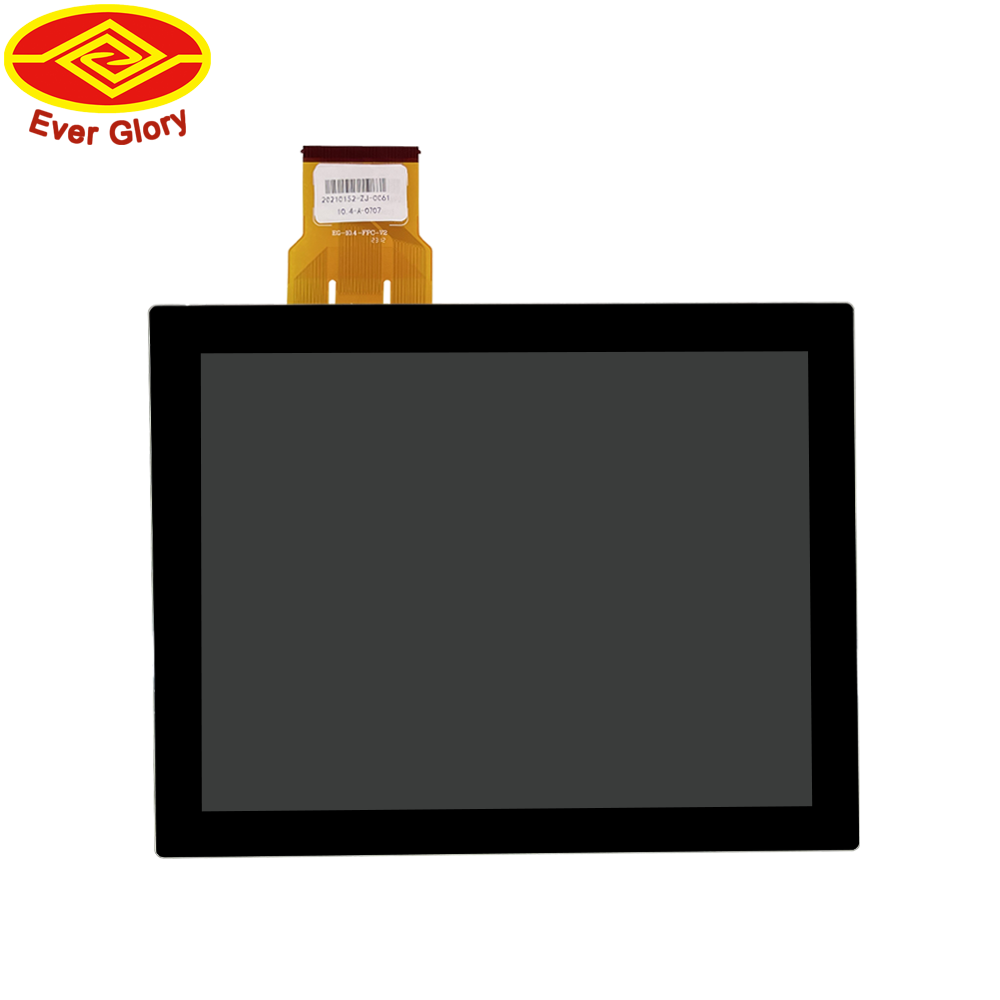

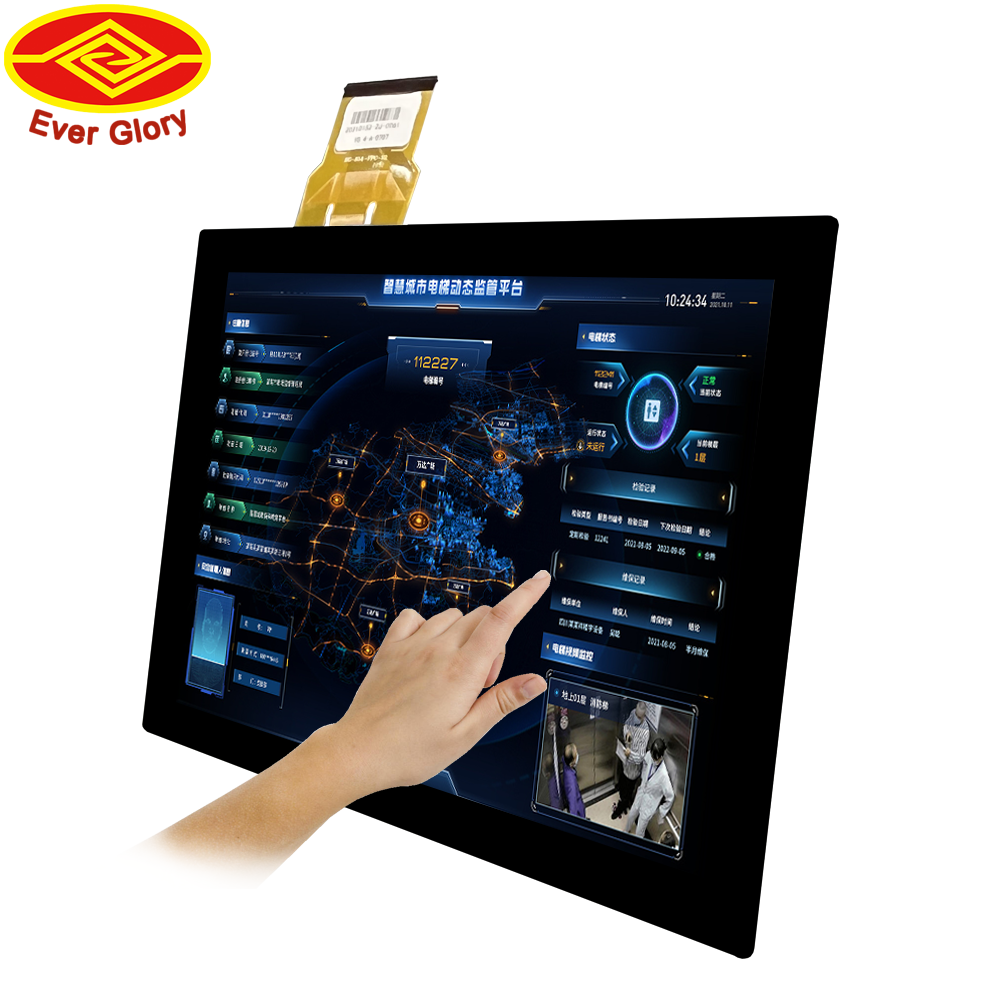

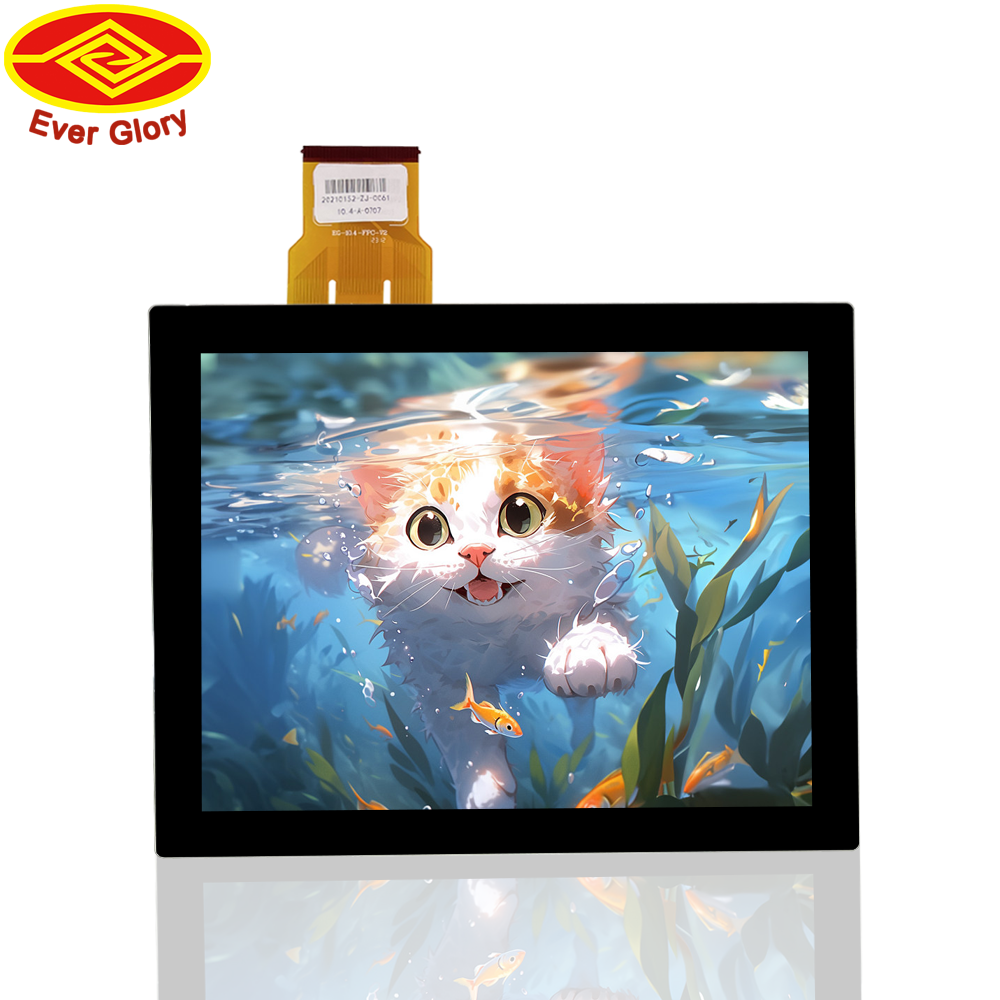

10.4 Inch OEM IP65 Waterproof USB ILITEK G+G Capacitive Touch Display
| Product Name | Touch With Display |
|---|---|
| Touch Panel P/N | EG-10.4-A-0403V1 |
| Display P/N | M104GNX1 R1 |
| Screen Diagonal | 10.4/4:3 |
| Cover Outline Dimension | 242.8*190.2mm |
| Touch Panel View Area | 211.8*159.2mm |
| Touch Panel Active Area | 212.8*160.2mm |
| Touch Panel Thickness | 2.75mm |
| Display Outline Dimension | 236*176.9mm |
| Display Active Area | 211.2*158.4mm |
| Display Thickness | 5.7mm |
| Total Thickness | 8.95mm |
| Cover surface hardness | ≥6H |
| Impact resistance | ≥IK07 |
| Support Touch Points | 10 points Typ. |
| Controller Interface | USB Typ. |
| Controller Supply Voltage | USB 5V Typ. |
| Touch Response Time | ≤25ms |
| Pixels H×V | 1,024 x 768 |
| Support Color | 262k/16.7M |
| Contrast Ratio | 900 Typ. |
| Display Surface Treatment | Anti-Glare |
| Product Name | Touch With Display |
|---|---|
| Touch Panel P/N | EG-10.4-A-0403V1 |
| Display P/N | M104GNX1 R1 |
| Screen Diagonal | 10.4/4:3 |
| Cover Outline Dimension | 242.8*190.2mm |
| Touch Panel View Area | 211.8*159.2mm |
| Touch Panel Active Area | 212.8*160.2mm |
| Touch Panel Thickness | 2.75mm |
| Display Outline Dimension | 236*176.9mm |
| Display Active Area | 211.2*158.4mm |
| Display Thickness | 5.7mm |
| Total Thickness | 8.95mm |
| Cover surface hardness | ≥6H |
| Impact resistance | ≥IK07 |
| Support Touch Points | 10 points Typ. |
| Controller Interface | USB Typ. |
| Controller Supply Voltage | USB 5V Typ. |
| Touch Response Time | ≤25ms |
| Pixels H×V | 1,024 x 768 |
| Support Color | 262k/16.7M |
| Contrast Ratio | 900 Typ. |
| Display Surface Treatment | Anti-Glare |
10.4″ OEM IP65 Waterproof Touch Display Module (USB ILITEK, G+G PCAP)
A compact, deployment-ready touch display module engineered for industrial HMIs, sealed kiosks, and outdoor terminals.
Built around a G+G projected capacitive (PCAP) touch stack with an ILITEK controller and USB touch interface, with front IP65 sealing options for wet and dusty environments.
- Best for: industrial HMI panels, cabinet HMIs, outdoor controllers, self-service terminals, marine/vehicle UI (project-based)
- Core features: 10.4″ size • G+G PCAP • USB touch • ILITEK controller • front IP65 sealing option
- OEM support: stack recommendation + integration notes (mounting stress, grounding, cable routing)
Request a Spec Review — send your enclosure drawing + environment requirements.
Key highlights
Front IP65 sealing option
Designed for wet zones and dust exposure. Sealing performance depends on bezel design, gasket compression, and assembly process.
Stable PCAP touch (G+G)
Glass-to-glass structure supports better durability and consistent touch behavior in industrial use.
USB touch + ILITEK controller
OEM-friendly USB integration. Controller tuning can be aligned to glove/wet touch requirements (project-based).
Core specifications
| Screen Size | 10.4 inch |
| Touch Technology | Projected Capacitive (PCAP) |
| Touch Structure | G+G (Glass + Glass) |
| Touch Controller | ILITEK |
| Touch Interface | USB (HID) |
| Waterproof | Front IP65 sealing option (assembly-dependent) |
| LCD Resolution | e.g., 1024×768 / 1280×800 |
| Brightness (Typical) | standard / high brightness option |
| Operating Temp | -20~70°C / wide-temp |
Browse the category:
Touch Display Module
What you can configure
- Front sealing strategy: gasket, bezel compression, cable entry and connector protection
- Glove / wet touch tuning: validate with your real glove type and water film conditions
- Cover lens & coatings: thickness, black border printing, AG/AR/AF (project-based)
- Readability: brightness strategy + glare control for outdoor deployments
- Mechanical integration: mounting method to prevent stress-induced edge dead zones
Send requirements — we will propose a stable stack and integration notes.
Integration notes (IP sealing + stability)
Bezel pressure control
Uneven compression is a common root cause of edge dead zones and drift. Ensure uniform support and controlled torque.
Grounding & cable routing
Most “ghost touch” issues trace to EMI, grounding, and routing near power lines. Re-test after final assembly.
Seal reality check
IP sealing is a system outcome (glass + gasket + bezel + assembly). Always validate with the final enclosure.
Recommended QA before deployment
For industrial projects, validate baseline touch performance first, then validate again after enclosure integration.
Most field failures appear after mounting due to stress, grounding changes, and real water film conditions.
FAQ
Is IP65 guaranteed for the full product?
Front IP65 is achievable as a system design (glass + gasket + bezel + assembly).
Final performance depends on your enclosure design and gasket compression control.
Can the module support glove touch and wet touch?
Yes, PCAP can be tuned for glove and wet touch. Validate with your real glove type and water film conditions in the final enclosure.
What do you need for a quick recommendation?
Screen size confirmation, target brightness, environment (water/dust/temperature), glove/wet requirements,
interface constraints, and your enclosure drawing.
Dongguan Ever Glory Photoelectric Co., Ltd., founded in 2011, is a high-tech enterprise with independent intellectual property rights. We operate 20,000㎡ production facilities located in Shenzhen and Dongguan. We specialize in providing high-quality 5″ to 75″ G+G and G+F capacitive touch panels, display solutions, and touch monitors and panel PCs. All production is completed in-house, with a dedicated cover glass production line, a Class-100 dust-free lamination workshop, and a monitor assembly line.
As a rapidly growing and innovative company, we were among the first in mainland China to initiate research and production of large-size PCAP technology, and we hold patents for lamination technology, equipment, and adhesives.
We are committed to being your one-stop touch solution partner. With over ten years of experience, we have developed extensive expertise across various applications, including industrial, outdoor, medical, banking, education, automotive, home automation,and entertainment sectors.
Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2.Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
10.4 Inch OEM IP65 Waterproof USB ILITEK G+G Capacitive Touch Display Engineering Information
10.4 Inch OEM IP65 Waterproof USB ILITEK G+G Capacitive Touch Display is a 10.4 inch touch display module for embedded display, OEM equipment, kiosk and HMI integration. It should be reviewed with LCD model, touch interface, video input, backlight, bonding and mechanical mounting so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Display Module
- Product Role
- touch display module
- Size / Format
- 10.4 inch
- Best Fit
- embedded display, OEM equipment, kiosk and HMI integration
- Review Focus
- LCD model, touch interface, video input, backlight, bonding and mechanical mounting
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and 10.4 inch display or housing requirement.
- LCD model, touch interface, video input, backlight, bonding and mechanical mounting.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications
OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects that need stronger enclosure design, stable touch performance and long-term field reliability.
This page is positioned under Touch Display Module, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this touch display module ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send LCD model, touch interface, video input, backlight, bonding and mechanical mounting, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
