This stainless steel Android touch panel PC is designed for industrial environments that require frequent cleaning,
water spray resistance, and long service life. Therefore, it combines an all-in-one Android platform with a rugged enclosure,
stable PCAP touch, and flexible mounting options. In addition, the configuration can be customized for CPU/RAM/storage,
I/O, brightness, and sealing requirements.
For sealing methods and IP65 definition in practice, review
waterproof touch screens (IP65).
If the unit is used outdoors, match sealing with brightness and wet touch tuning.
See outdoor touch screen solutions.
| Item | Specification |
|---|---|

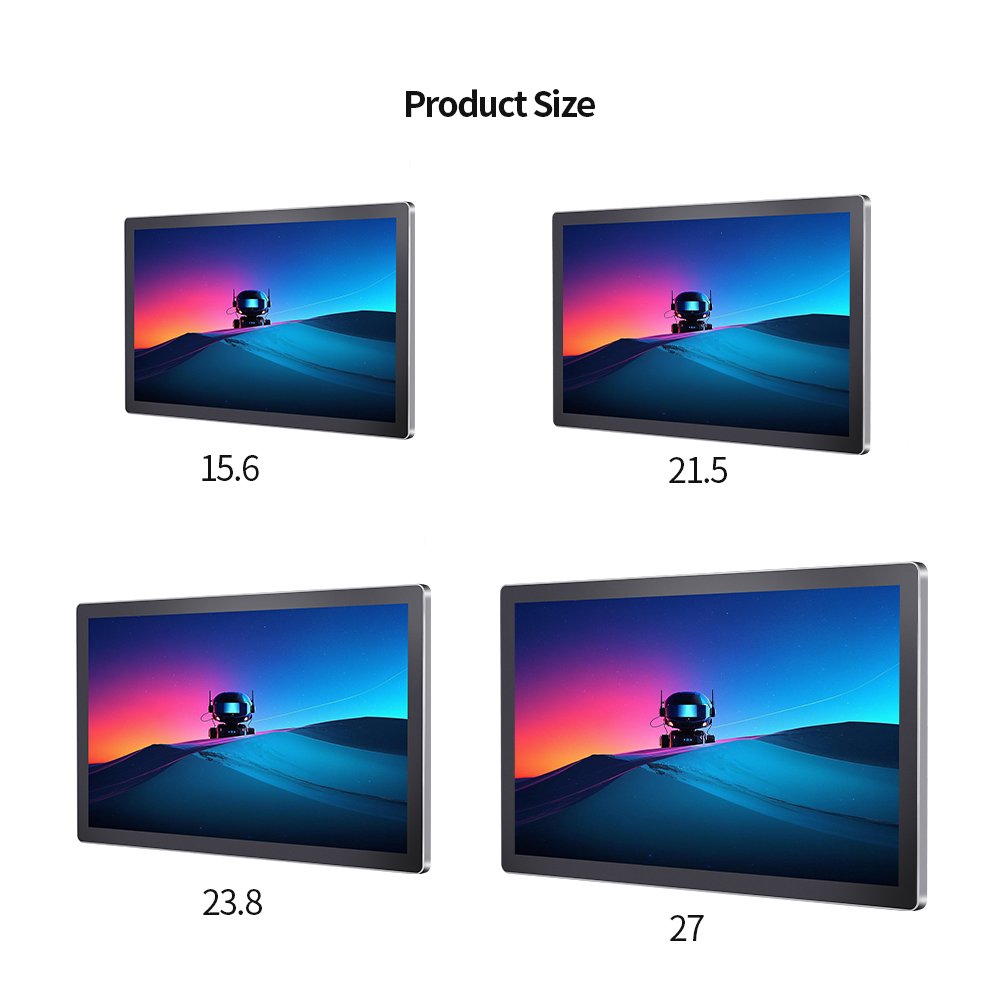

| Screen sizes | 15.6″ / 18.5″ / 21.5″ / 24″ / 27″ (select based on project) |
| System | Android (version configurable) |
| CPU / RAM / Storage | Configurable (define workload and apps) |
| Touch | PCAP multi-touch; glove and wet touch tuning optional |

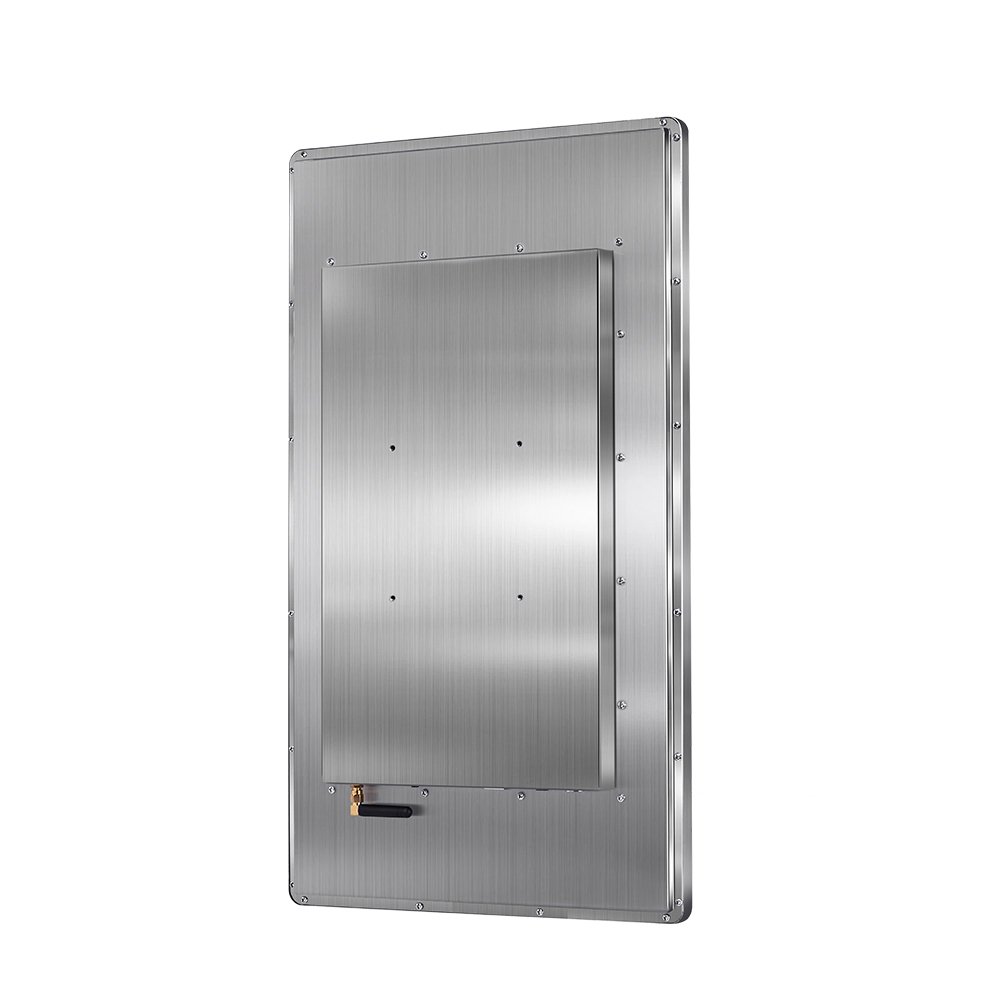

| Housing | Stainless steel (washdown-friendly structure) |
| Waterproof level | Typically front sealing based on design; confirm target IP and stack-up |
| Brightness | Standard / high brightness option (define target nits) |

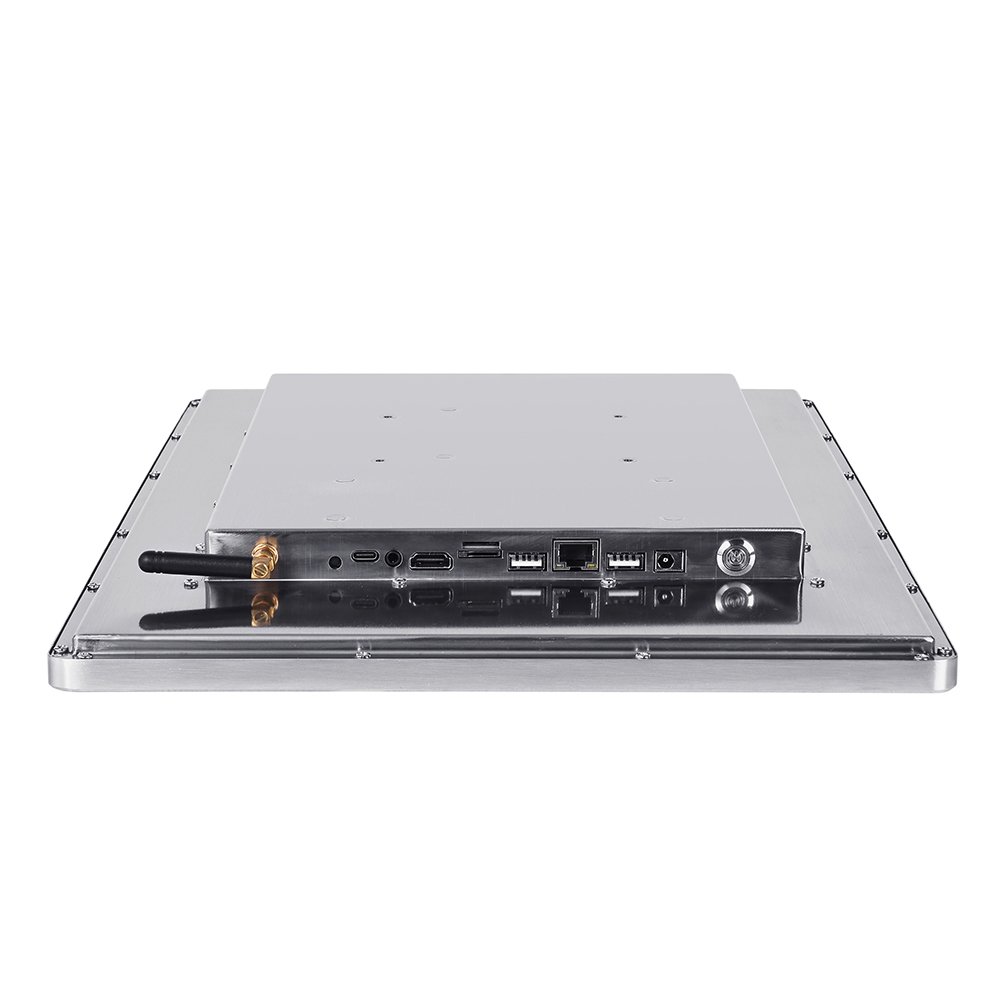

| I/O | LAN / USB / serial (RS232/RS485) / GPIO options (confirm per project) |
| Power | Industrial power input (confirm range for your site) |
| Mounting | VESA / wall mount / panel mount / bracket options |
Food & beverage lines
Washdown cleaning and humid environments benefit from stainless steel durability.
Pharma and cleanrooms
Define cleaning protocol and sealing requirements early to avoid redesign later.
Industrial HMI stations
Android AIO simplifies deployment for dedicated apps and controlled workflows.
Humid utilities / wet rooms
Sealing and cable entry design are key for long-term stability.
For PCAP fundamentals and touch behavior under gloves/water, read
how capacitive touch screens work.
For outdoor readability planning, see
sunlight readable touch displays.
1) Touch accuracy and edges
Run line tracking and edge sweeps before and after final mounting.
2) Glove and wet touch
Validate with real gloves and water film to confirm stability and false touch behavior.
3) Sealing verification
Check gasket compression, connector sealing, and cable entry under your cleaning method.
4) Soak test
Run a 2–8 hour stability test and record events as PASS / PASS with notes / FAIL.
Use the step-by-step checklist here:
touchscreen test checklist.
For deeper workflow and EMI checks, see:
touchscreen tester.
This product is an Android all-in-one Panel PC. Therefore, you can run dedicated Android apps without an external computer.
Waterproof performance depends on the full system design. In many projects, the front is sealed and the connector area is protected by cable glands. Share your target IP level and cleaning method for confirmation.
Yes. PCAP touch can be tuned for glove and wet touch. In addition, it should be validated under real gloves and water film conditions.
Food & beverage, pharma, cleanrooms, and humid factories use stainless steel to improve sanitation and corrosion resistance.
Please share screen size, Android version, CPU/RAM/storage needs, I/O, target IP level, brightness, mounting method, and your cleaning protocol.
Next step: Send your specs for a waterproof configuration proposal.
Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2.Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
