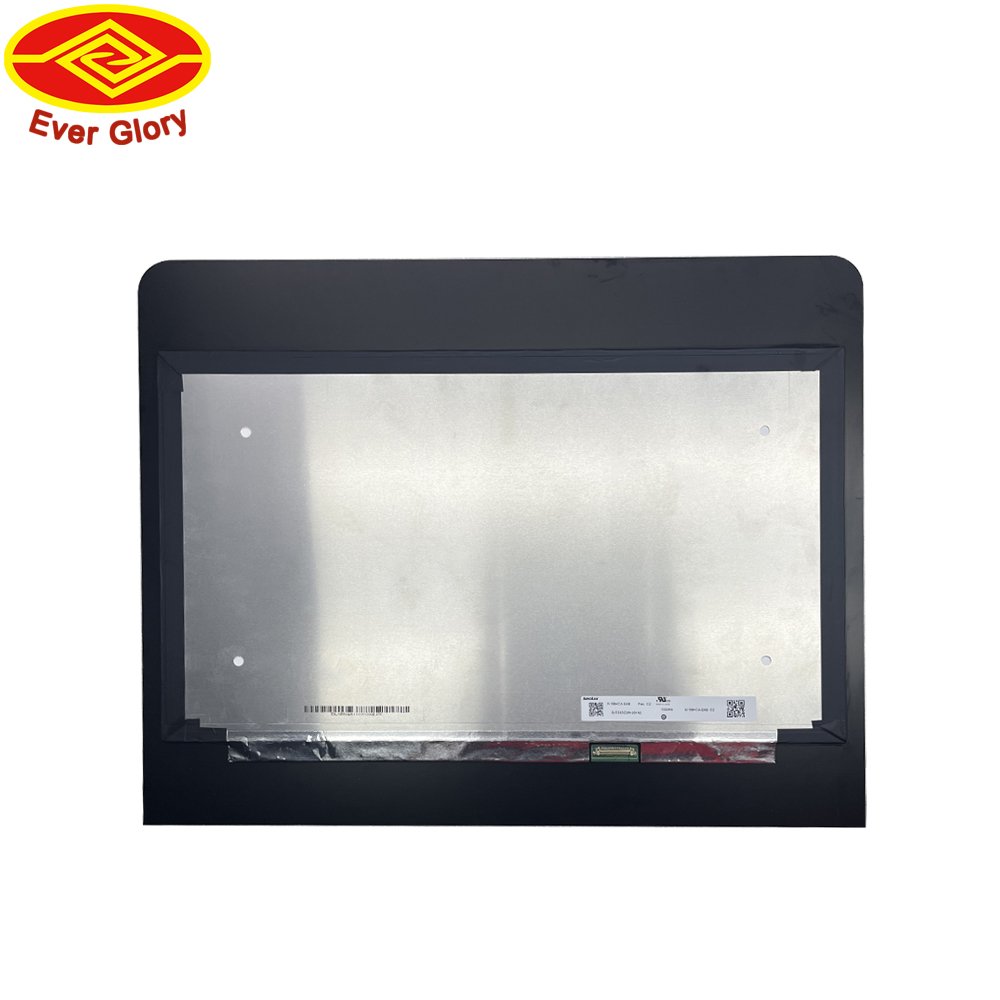

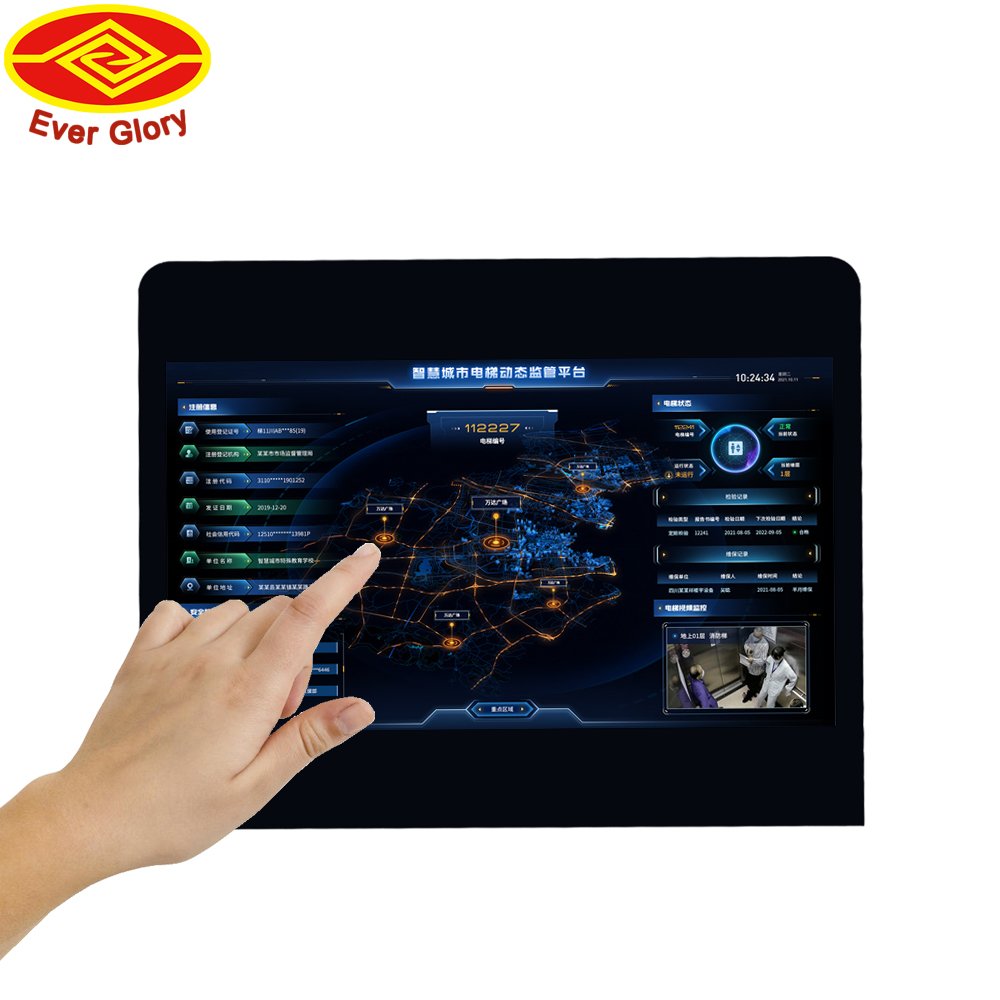

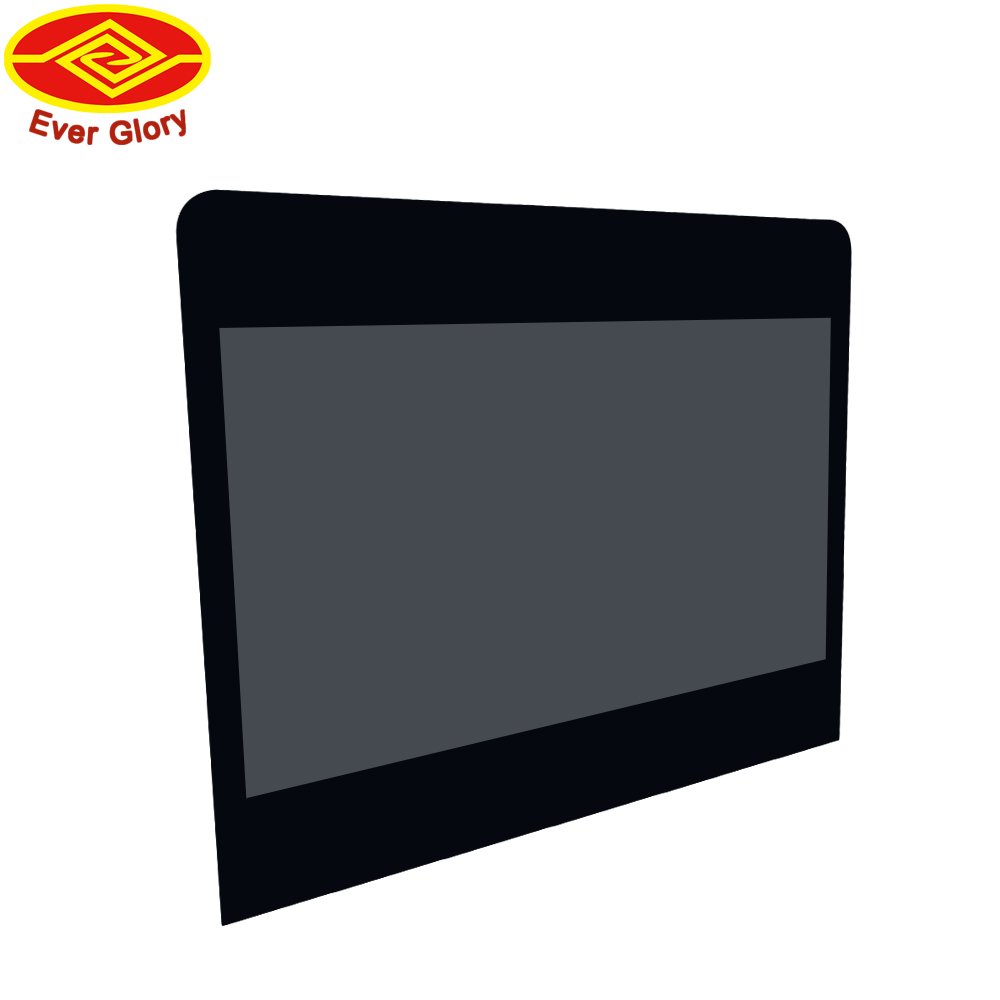

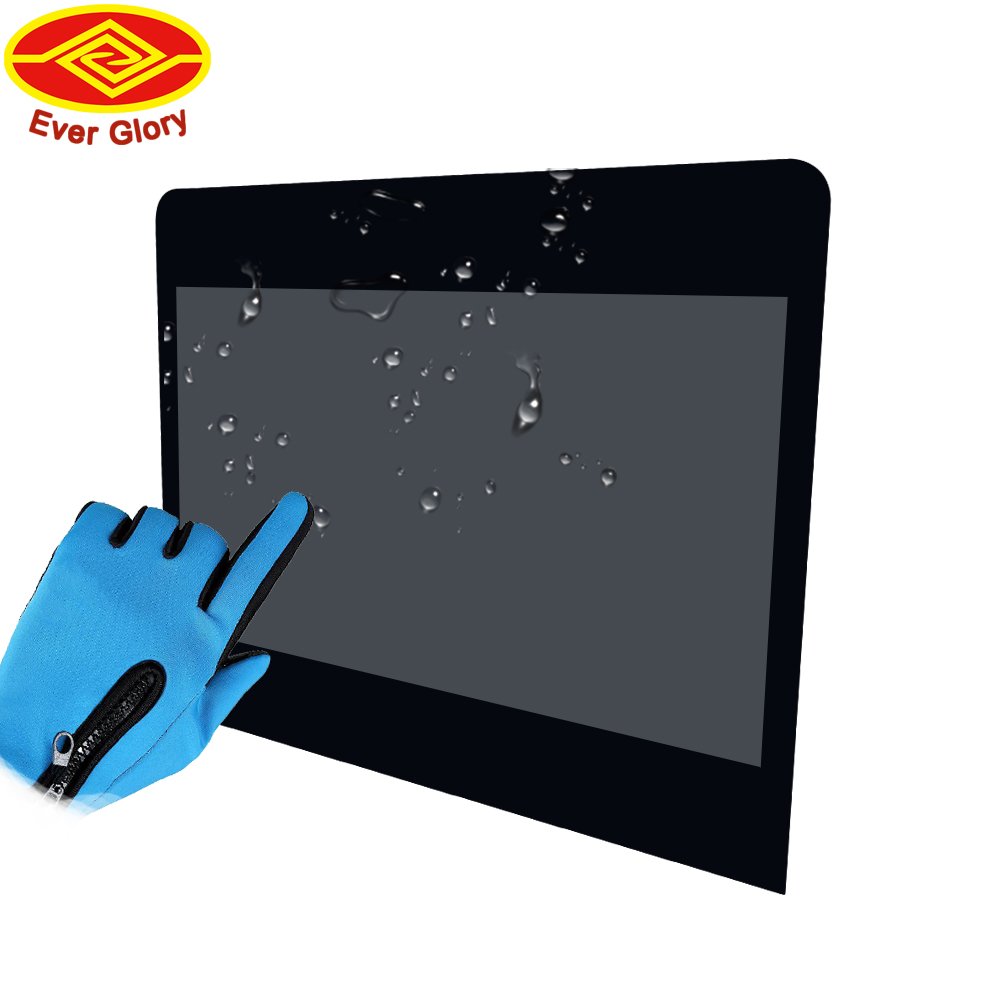

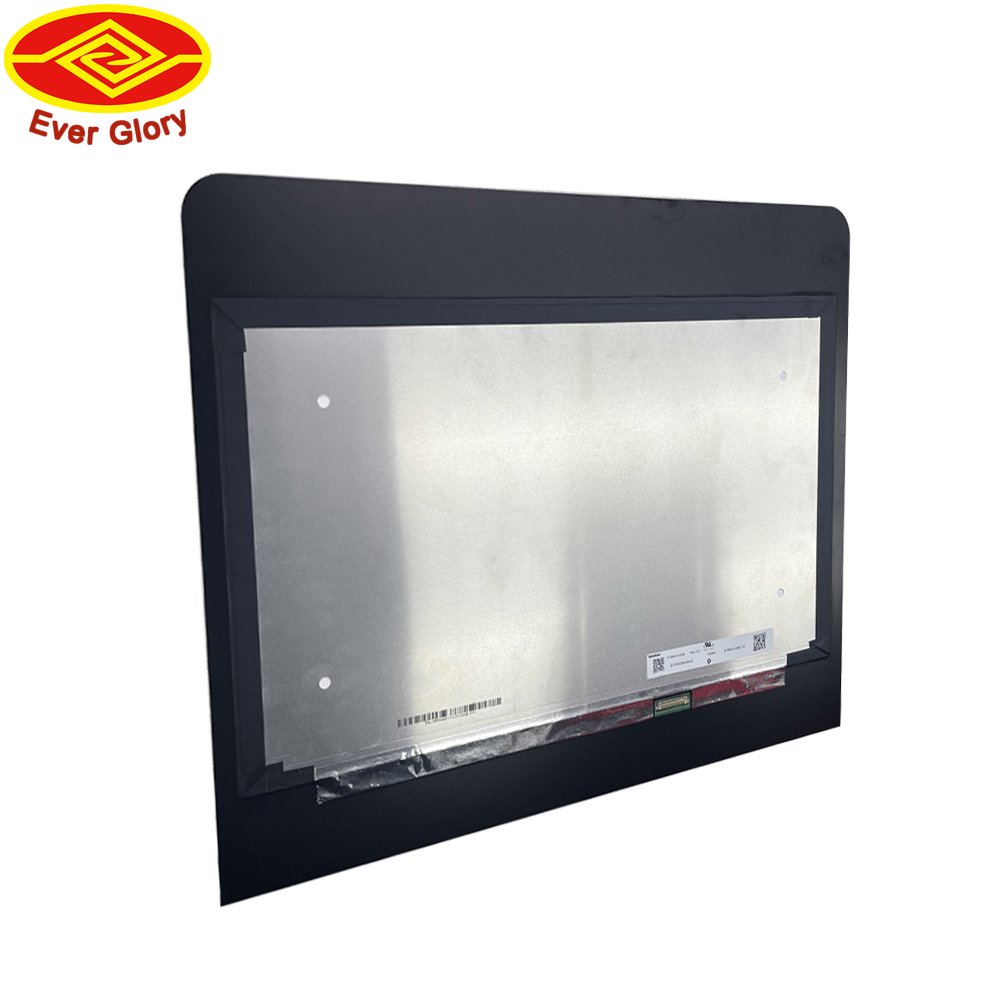

15.6 Inch LCD Module IP65 Waterproof Touch Display
| Product Name | Touch With Display |
|---|---|
| Touch Panel P/N | EG-15.6-A-1609V1 |
| Display P/N | G156HAN02.1 |
| Screen Diagonal | 15.6/16:9 |
| Cover Outline Dimension | 380.56*229.99mm |
| Touch Panel View Area | 344.56*193.99mm |
| Touch Panel Active Area | 345.56*194.99mm |
| Touch Panel Thickness | 2.9mm |
| Display Outline Dimension | 363.8*215.9mm |
| Display Active Area | 344.16*193.59mm |
| Display Thickness | 8.8mm |
| Total Thickness | 12.7mm |
| Cover surface hardness | ≥6H |
| Impact resistance | ≥IK07 |
| Lamination to display | Airbonding(gap1mm) |
| Touch Points | 10 points Typ. |
| Controller Interface | USB Typ. |
| Touch Report Rate | ≥100Hz |
| Pixels H×V | 1920 x 3(RGB) x 1080 |
| Support Color | 16.7M Colors ( RGB 8-bits ) |
| Contrast Ratio | 1000 Typ. |
| Display Surface Treatment | Anti-glare 3H |
| Product Name | Touch With Display |
|---|---|
| Touch Panel P/N | EG-15.6-A-1609V1 |
| Display P/N | G156HAN02.1 |
| Screen Diagonal | 15.6/16:9 |
| Cover Outline Dimension | 380.56*229.99mm |
| Touch Panel View Area | 344.56*193.99mm |
| Touch Panel Active Area | 345.56*194.99mm |
| Touch Panel Thickness | 2.9mm |
| Display Outline Dimension | 363.8*215.9mm |
| Display Active Area | 344.16*193.59mm |
| Display Thickness | 8.8mm |
| Total Thickness | 12.7mm |
| Cover surface hardness | ≥6H |
| Impact resistance | ≥IK07 |
| Lamination to display | Airbonding(gap1mm) |
| Touch Points | 10 points Typ. |
| Controller Interface | USB Typ. |
| Touch Report Rate | ≥100Hz |
| Pixels H×V | 1920 x 3(RGB) x 1080 |
| Support Color | 16.7M Colors ( RGB 8-bits ) |
| Contrast Ratio | 1000 Typ. |
| Display Surface Treatment | Anti-glare 3H |
Dongguan Ever Glory Photoelectric Co., Ltd., founded in 2011, is a high-tech enterprise with independent intellectual property rights. We operate 20,000㎡ production facilities located in Shenzhen and Dongguan. We specialize in providing high-quality 5″ to 75″ G+G and G+F capacitive touch panels, display solutions, and touch monitors and panel PCs. All production is completed in-house, with a dedicated cover glass production line, a Class-100 dust-free lamination workshop, and a monitor assembly line.
As a rapidly growing and innovative company, we were among the first in mainland China to initiate research and production of large-size PCAP technology, and we hold patents for lamination technology, equipment, and adhesives.
We are committed to being your one-stop touch solution partner. With over ten years of experience, we have developed extensive expertise across various applications, including industrial, outdoor, medical, banking, education, automotive, home automation,and entertainment sectors.
Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2.Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
15.6 Inch LCD Module IP65 Waterproof Touch Display Engineering Information
15.6 Inch LCD Module IP65 Waterproof Touch Display is a 15.6 inch touch display module for embedded display, OEM equipment, kiosk and HMI integration. It should be reviewed with LCD model, touch interface, video input, backlight, bonding and mechanical mounting so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Display Module
- Product Role
- touch display module
- Size / Format
- 15.6 inch
- Best Fit
- embedded display, OEM equipment, kiosk and HMI integration
- Review Focus
- LCD model, touch interface, video input, backlight, bonding and mechanical mounting
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and 15.6 inch display or housing requirement.
- LCD model, touch interface, video input, backlight, bonding and mechanical mounting.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications
OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects that need stronger enclosure design, stable touch performance and long-term field reliability.
This page is positioned under Touch Display Module, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this touch display module ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send LCD model, touch interface, video input, backlight, bonding and mechanical mounting, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
