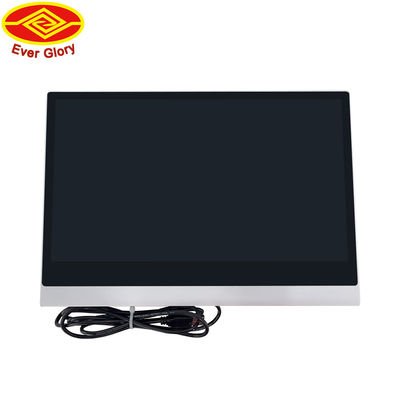

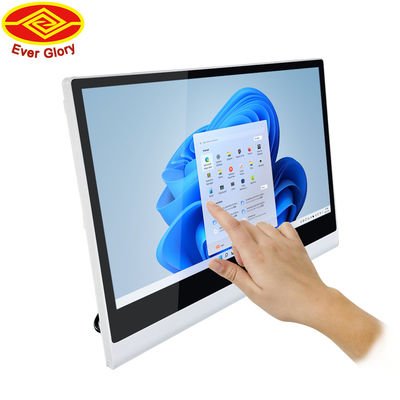

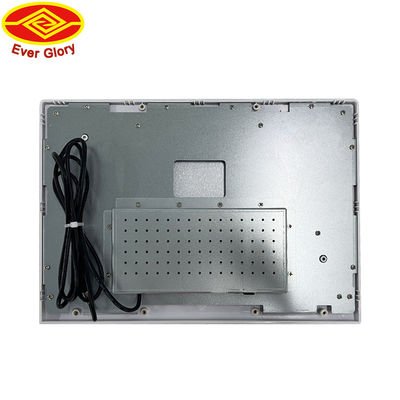

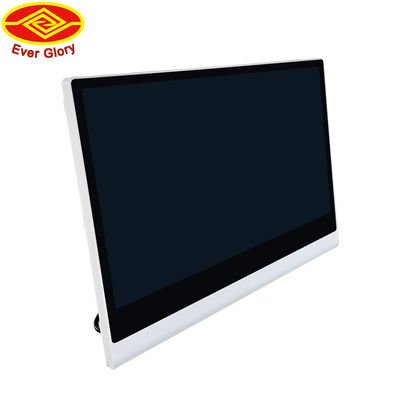

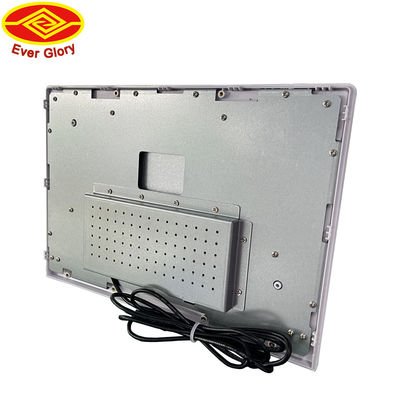

Customized 13.3 Inch Optical Bonding Touch Screen For Shipping

Additional information

Touch Panel P/N

EG-13.3-A-1609V1

Display P/N

G133HAN01.1

Screen Diagonal

13.3/16:9 inch

Cover Outline Dimension

324.1*207.8 mm

Touch Panel View Area

292.76*164.24 mm

Touch Panel Active Area

293.76*165.24 mm

Display Outline Dimension

309.7*184.1 mm

Display Active Area

293.472 (H) x 165.078 (V) mm

Total Thickness

12.85 mm

View angle

89/89/89/89, Full view angle

Pixels H×V

1920 x 3(RGB) x 1080 pixel

Pixel Pitch

0.15285x 0.15285 mm

Luminance, white

500cd/m2&700cd/m2

Operation Conditions

10%-90%RH

Touch Response Time

≤25 ms

Support Color

16.7M Colors ( RGB 8-bits )

Additional information

Touch Panel P/N

EG-13.3-A-1609V1

Display P/N

G133HAN01.1

Screen Diagonal

13.3/16:9 inch

Cover Outline Dimension

324.1*207.8 mm

Touch Panel View Area

292.76*164.24 mm

Touch Panel Active Area

293.76*165.24 mm

Display Outline Dimension

309.7*184.1 mm

Display Active Area

293.472 (H) x 165.078 (V) mm

Total Thickness

12.85 mm

View angle

89/89/89/89, Full view angle

Pixels H×V

1920 x 3(RGB) x 1080 pixel

Pixel Pitch

0.15285x 0.15285 mm

Luminance, white

500cd/m2&700cd/m2

Operation Conditions

10%-90%RH

Touch Response Time

≤25 ms

Support Color

16.7M Colors ( RGB 8-bits )

Dongguan Ever Glory Photoelectric Co., Ltd., founded in 2011, is a high-tech enterprise with independent intellectual property rights. We operate 20,000㎡ production facilities located in Shenzhen and Dongguan. We specialize in providing high-quality 5″ to 75″ G+G and G+F capacitive touch panels, display solutions, and touch monitors and panel PCs. All production is completed in-house, with a dedicated cover glass production line, a Class-100 dust-free lamination workshop, and a monitor assembly line.

As a rapidly growing and innovative company, we were among the first in mainland China to initiate research and production of large-size PCAP technology, and we hold patents for lamination technology, equipment, and adhesives.

We are committed to being your one-stop touch solution partner. With over ten years of experience, we have developed extensive expertise across various applications, including industrial, outdoor, medical, banking, education, automotive, home automation,and entertainment sectors.

Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2.Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
