15.6″ TFT LCD Module | FHD 1920×1080 | OEM Integration
| Size | 15.6 inch |
|---|---|
| Cover Outline Dimension | 380.56*229.99 mm |
| Brightness | 800cd/m2 |
| Touch Panel View Area | 344.56*193.99 mm |
| Touch Panel Active Area | 345.56*194.99 mm |
| Touch Panel Thickness | 3.2 mm |
| Display Outline Dimension | 363.8*215.9 mm |
| Support Touch Points | 10 points |
| Controller Interface | USB Typ. |
| Controller Supply Voltage | USB 5V Typ. |
| Pixels H×V | 1920 x 3(RGB) x 1080 pixel |
| Support Color | 16.7M Colors ( RGB 8-bits ) |
| Contrast Ratio | 2000 Typ. |
| Size | 15.6 inch |
|---|---|
| Cover Outline Dimension | 380.56*229.99 mm |
| Brightness | 800cd/m2 |
| Touch Panel View Area | 344.56*193.99 mm |
| Touch Panel Active Area | 345.56*194.99 mm |
| Touch Panel Thickness | 3.2 mm |
| Display Outline Dimension | 363.8*215.9 mm |
| Support Touch Points | 10 points |
| Controller Interface | USB Typ. |
| Controller Supply Voltage | USB 5V Typ. |
| Pixels H×V | 1920 x 3(RGB) x 1080 pixel |
| Support Color | 16.7M Colors ( RGB 8-bits ) |
| Contrast Ratio | 2000 Typ. |

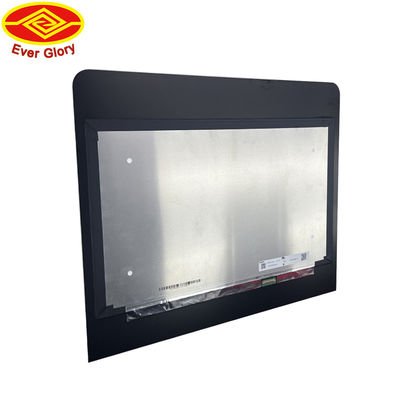

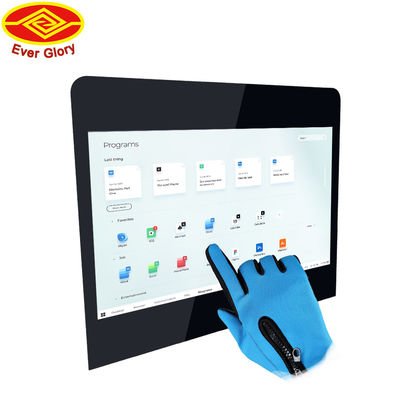

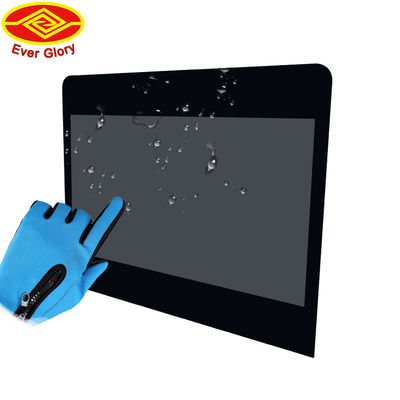

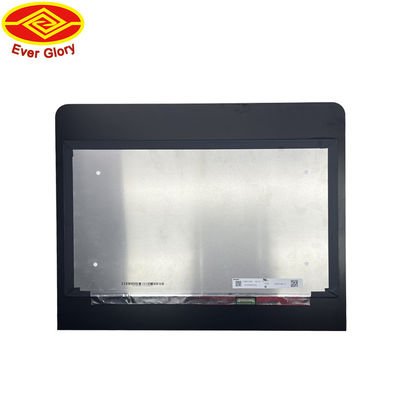

15.6″ TFT LCD Display Module for OEM/ODM Integration
Our 15.6 inch TFT LCD module is a stable, supply-ready TFT LCD module designed for industrial HMI, kiosks, EV charging, and embedded devices. This 15.6 inch TFT LCD module helps OEM teams reduce integration risk with clear mechanical references, interface options, and validation support.
- Best for: embedded HMI, control cabinets, kiosks, test equipment, infotainment, industrial terminals
- Options: high brightness, wide temperature, anti-glare, custom cover lens / touch integration (project-based)
- Service model: B2B engineering support + stable BOM & supply continuity
Get a Quote — Send your target specs and enclosure constraints.
Key highlights
Clear readability
Brightness and surface options can be matched to indoor or high ambient-light environments (project-based).
OEM-friendly integration
The 15.6 inch TFT LCD module includes interface and mechanical references that help reduce bring-up time and integration surprises.
Reliability options
Wide-temperature and industrial-grade components can be applied based on deployment requirements.
Core specifications
Replace the fields below with your confirmed module specs.
| Screen Size | 15.6 inch |
| Aspect Ratio | 16:9 |
| Resolution | 1920×1080 (FHD) |
| Brightness (Typical) | 700 nits |
| Interface | [LVDS |
| Viewing Angle | IPS |
| Operating Temp | -20~70°C / wide-temp |
| Supply Status | B2B project supply (BOM stabilized) |
Need touch integration (PCAP + cover lens + bonding)? We can deliver it as a complete Touch Display Module stack. Our 15.6 inch TFT LCD module could be the perfect fit for your needs.
Send requirements.
Integration notes (OEM)
Mainboard & interface
Confirm interface type (LVDS/eDP/MIPI), connector, and cable routing early to avoid EMI and signal instability.
Mechanical stress control
Avoid uneven bezel pressure on the panel area. Provide uniform support points and controlled torque.
Readability in real scenes
For outdoor or reflective environments, plan brightness + glare control as a system decision, not a single part choice.
Customization & upgrades
- High brightness: matched to sunlight/strong ambient light targets
- Surface treatment: AG / AR / AF (project-based)
- Wide-temperature: industrial-grade component selection
- Touch integration: PCAP + cover lens + air/optical bonding as a complete module
- Front sealing: if you need IP-rated front design, we can propose stack + gasket strategy
Get engineering support — share your environment and enclosure constraints related to the 15.6 inch TFT LCD module.
Applications
- Industrial HMI and control cabinets
- Self-service kiosks and terminals
- EV charging equipment (as part of a full touch display stack)
- Test instruments and embedded devices
- Transportation and rugged terminals (project-based)
FAQ
Is this a standalone monitor?
No. This is an LCD display module intended for OEM integration. If you need a finished monitor with enclosure and I/O, choose a Touch Screen Monitor solution.
Can you provide a complete touch + display module?
Yes. We can integrate PCAP touch, cover lens, bonding, and controller selection as a complete Touch Display Module stack for your device. This stack includes our 15.6 inch TFT LCD module.
What do you need to quote quickly?
Target resolution, brightness, interface, operating temperature, mechanical constraints, and expected volume. Enclosure drawing speeds up integration decisions.
Dongguan Ever Glory Photoelectric Co., Ltd., founded in 2011, is a high-tech enterprise with independent intellectual property rights. We operate 20,000㎡ production facilities located in Shenzhen and Dongguan. We specialize in providing high-quality 5″ to 75″ G+G and G+F capacitive touch panels, display solutions, and touch monitors and panel PCs. All production is completed in-house, with a dedicated cover glass production line, a Class-100 dust-free lamination workshop, and a monitor assembly line. The 15.6 inch TFT LCD module is part of this advanced offering.
As a rapidly growing and innovative company, we were among the first in mainland China to initiate research and production of large-size PCAP technology, and we hold patents for lamination technology, equipment, and adhesives.
We are committed to being your one-stop touch solution partner. With over ten years of experience, we have developed extensive expertise across various applications, including industrial, outdoor, medical, banking, education, automotive, home automation, and entertainment sectors.
Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2.Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
15.6 TFT LCD Module | FHD 1920×1080 | OEM Integration Engineering Information
15.6 TFT LCD Module | FHD 1920×1080 | OEM Integration is a custom size touch display module for embedded display, OEM equipment, kiosk and HMI integration. It should be reviewed with LCD model, touch interface, video input, backlight, bonding and mechanical mounting so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Display Module
- Product Role
- touch display module
- Size / Format
- custom size
- Best Fit
- embedded display, OEM equipment, kiosk and HMI integration
- Review Focus
- LCD model, touch interface, video input, backlight, bonding and mechanical mounting
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and custom size display or housing requirement.
- LCD model, touch interface, video input, backlight, bonding and mechanical mounting.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications
OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects where display integration, touch stability and mechanical fit need to be confirmed before production.
This page is positioned under Touch Display Module, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this touch display module ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send LCD model, touch interface, video input, backlight, bonding and mechanical mounting, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
