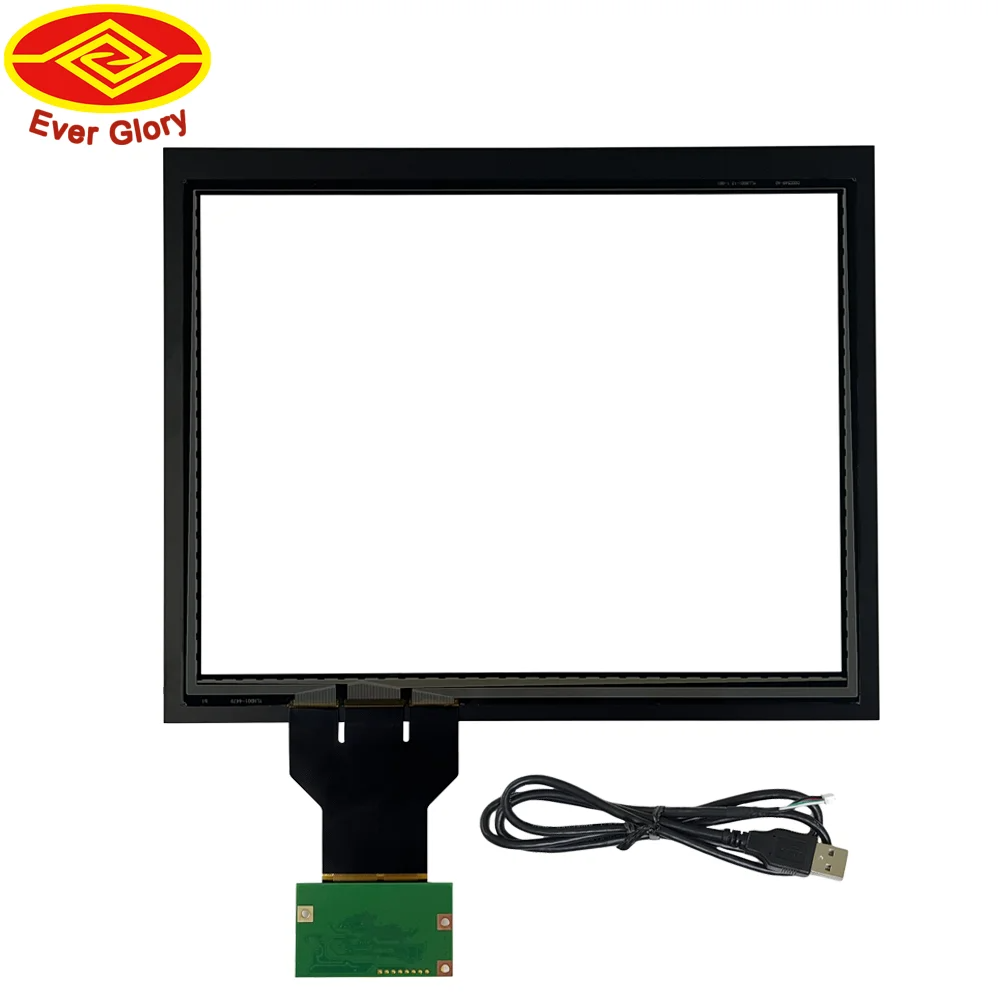

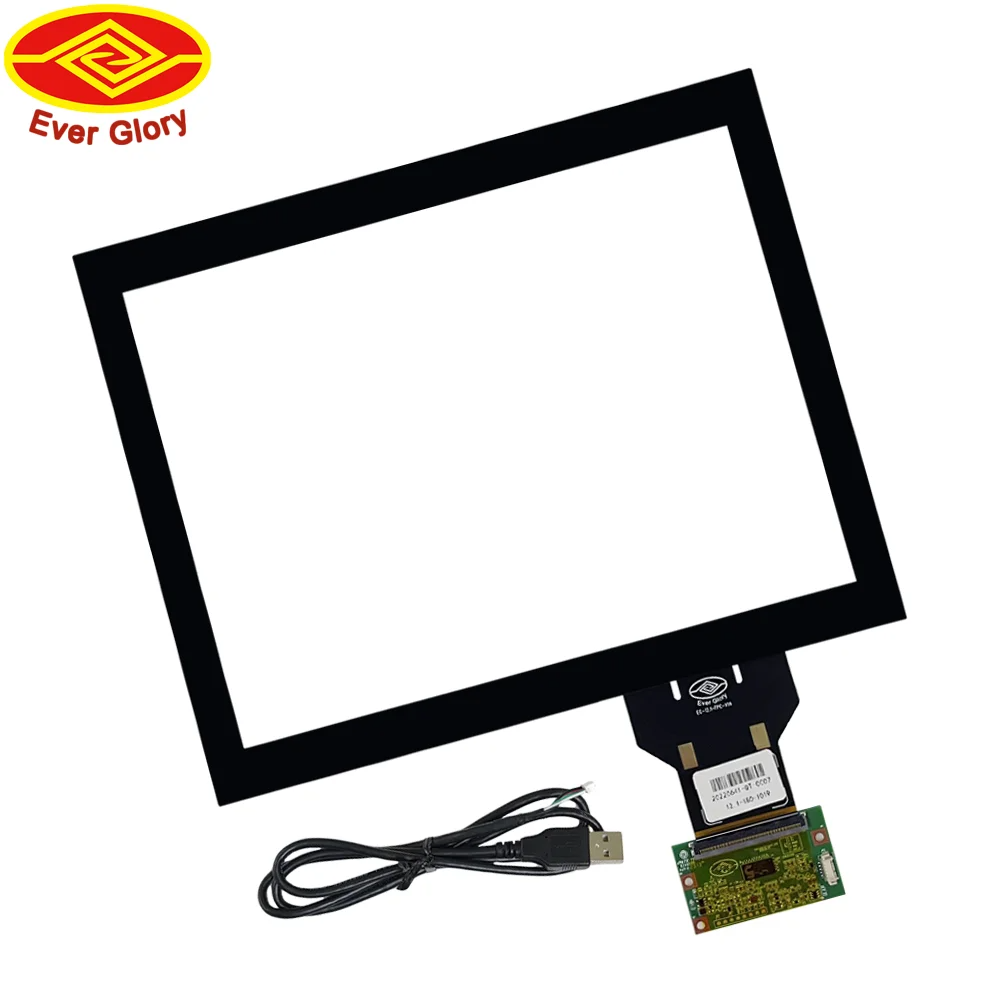

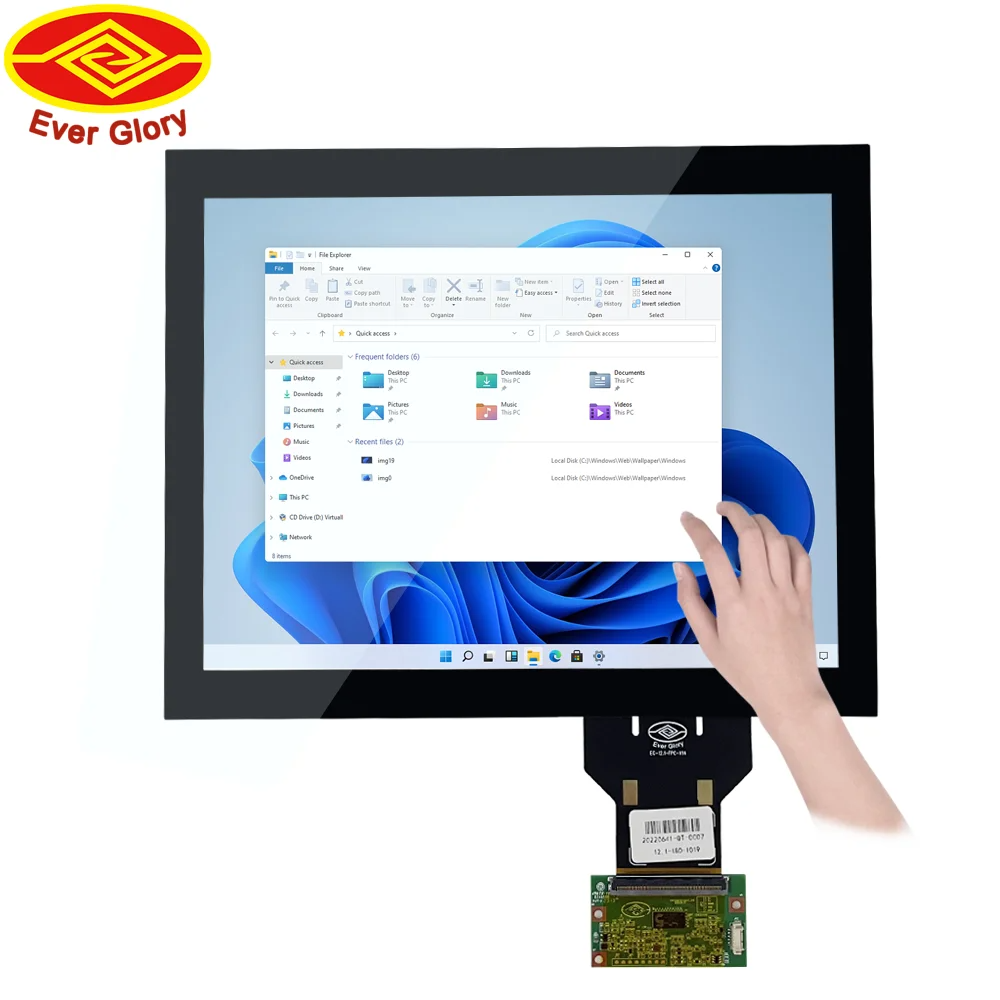

8-Inch 1024×768 Custom Capacitive Touch Panel
| Type | Projective Capacitive |
|---|---|
| Connector | COB |
| Screen Diagonal | 8 [4:3] |
| Structures | G+G |
| Outline Dimension | 147.50(W)*188.00(L)±0.2mm |
| View Area | 121.50(W)*162.00(L)±0.2mm |
| Active Area | 122.50(W)*163.00(L)±0.2mm |
| Sensor Thickness | 0.55±0.05mm |
| Cover Thickness | 2.0±0.2mm |
| Total Thickness | 2.75±0.2mm |
| Tail Length | 39.94mm |
| Transmittance | >85% |
| Input Mode | Finger |
| Support Points | 1~10 |
| Interface | USB |
| Supply Voltage | USB 5 V |
| Response Time | ＜50 ms |
| Linearity | X≦1.0%, Y≦1.0% |
| Life Time | ＞50,000,000 times |
| Report Rate | ＞100 Hz |
| Power Consumption | ＜0.6 W |
| Type | Projective Capacitive |
|---|---|
| Connector | COB |
| Screen Diagonal | 8 [4:3] |
| Structures | G+G |
| Outline Dimension | 147.50(W)*188.00(L)±0.2mm |
| View Area | 121.50(W)*162.00(L)±0.2mm |
| Active Area | 122.50(W)*163.00(L)±0.2mm |
| Sensor Thickness | 0.55±0.05mm |
| Cover Thickness | 2.0±0.2mm |
| Total Thickness | 2.75±0.2mm |
| Tail Length | 39.94mm |
| Transmittance | >85% |
| Input Mode | Finger |
| Support Points | 1~10 |
| Interface | USB |
| Supply Voltage | USB 5 V |
| Response Time | ＜50 ms |
| Linearity | X≦1.0%, Y≦1.0% |
| Life Time | ＞50,000,000 times |
| Report Rate | ＞100 Hz |
| Power Consumption | ＜0.6 W |
8-Inch 1024×768 Custom Capacitive Touch Panel Engineering Information
8-Inch 1024×768 Custom Capacitive Touch Panel is a custom size projected capacitive touch panel for OEM equipment integration. It is best reviewed with LCD data, glass drawing, USB HID, I2C or project-specific controller requirements, bonding method and the final compact embedded equipment and control terminals.
- Product Role
- Projected capacitive touch panel for OEM integration
- Size / Format
- custom size
- Best Fit
- space-limited embedded products where FPC direction and mounting clearance matter
- Controller
- USB HID, I2C or project-specific controller
- Cover Glass
- custom cover glass with printing and outline options
- Customization
- Glass outline, logo printing, black border, AG/AR/AF coating, FPC direction, connector and bonding method
Information Needed for Review
- LCD model, active area, visible area and mechanical drawing for the custom size structure.
- USB HID, I2C or project-specific controller requirement, communication interface and operating system or mainboard information.
- custom cover glass with printing and outline options, bonding choice, edge sealing requirement and housing tolerance.
- Operating temperature, humidity, glove or wet-touch expectation, EMI grounding and annual demand.
Typical Applications
space-limited embedded products where FPC direction and mounting clearance matter
Industrial controls, kiosks, medical devices, POS terminals, embedded display modules and custom assemblies.
Projects that need stable PCAP touch performance after enclosure and firmware tuning.
Common Engineering Questions
Is this a standard off-the-shelf touch screen?
This custom size page is mainly for engineered projects. Ever Glory can review standard dimensions, but final drawings, controller choice and cover glass details should be confirmed before production.
What makes this page different from other PCAP products?
The focus here is space-limited embedded products where FPC direction and mounting clearance matter. The key review points are USB HID, I2C or project-specific controller, custom cover glass with printing and outline options, bonding and the final installation environment.
What should be sent for a fast quotation?
Send the LCD model, drawing, interface request, FPC direction, glass thickness, surface treatment, target quantity and any glove, wet touch or EMI requirement.
For an accurate quotation, send drawings and application details instead of only screen size.
