COMPACT EQUIPMENT. CLEAR CHOICES.
15.6 inchIndustrial touch
screen monitors.
Compare 9 model-specific configurations for compact HMI panels, kiosks and equipment interfaces. Start with your enclosure space, then match brightness and operating temperature.
A complete monitor connects to your host. A bare display module or Android panel PC is a different product.
START WITH YOUR EQUIPMENT
Which integration path fits?
For a smaller control panel, rear clearance and cable access matter as much as the screen diagonal. Compare the physical design before committing to a cutout.
INDOOR CONTROL PANELS
Standard and slim
YW01, YW02 and ZPS offer different brightness, housing and temperature specifications. ZPS lists a 25 mm enclosure depth; verify the full drawing for clearance.
KIOSKS AND MACHINE ENCLOSURES
Embedded configurations
Compare YB01, XB01, XP01, XW02 and the semi-open BWW monitor. Front framing and mounting arrangements differ; the screen size does not define the cutout.
ENVIRONMENTAL REQUIREMENTS
Temperature and protection
PB03 specifies IP67 at the front panel only. Selected models list wider operating ranges; assess the complete installation and request the applicable evidence.
MATCH THE MODEL, NOT JUST THE SIZE
Compare 15.6-inch
monitor specifications.
All listed models specify capacitive touch, USB touch communication, HDMI + VGA video inputs and DC 12 V power. Brightness and operating ranges below come from each exact model datasheet.
| Series / construction | Brightness cd/m² | Video inputs | Ingress protection¹ | Operating range² | Selection |
|---|---|---|---|---|---|

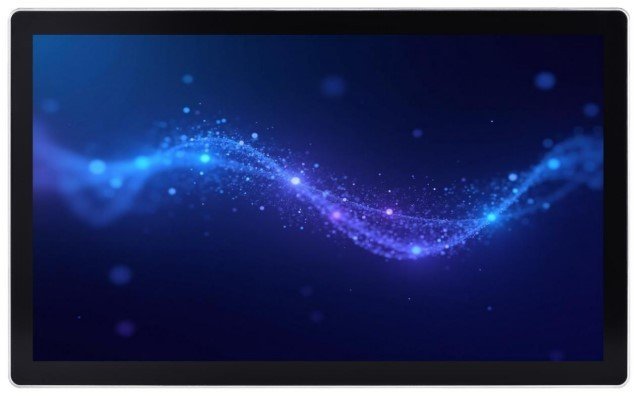

| YW01Standard aluminum housingYL-GZYW01Q156TC-V1 ↗ | 350 | HDMI + VGA | Confirm | -5 to 50 °C | |
| YW02Standard configurationYL-GZYW02Q156TC-V1 ↗ | 280 | HDMI + VGA | Confirm | 0 to 50 °C | |
| ZPSSlim metal housingYL-SZPS01Q156TC-V1 ↗ | 500 | HDMI + VGA | Confirm | -10 to 50 °C | |

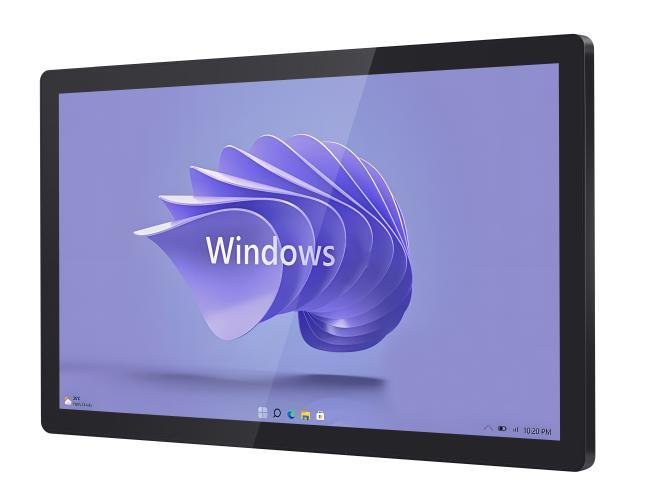

| PB03IP67 front-panel configurationYL-GZPB03Q156TC-V1 ↗ | 450 | HDMI + VGA | IP67¹Front panel only | -30 to 80 °C | |
| XW02High-brightness embeddedYL-HZXW02Q156TC-V1 ↗ | 300–1,000configuration range | HDMI + VGA | Confirm | -30 to 80 °C | |
| YB01Internal embeddedYL-TZYB01Q156TC-V1 ↗ | 300 | HDMI + VGA | Confirm | 0 to 50 °C | |
| XB01External embeddedYL-GZXB01Q156TC-V1 ↗ | 450 | HDMI + VGA | Confirm | -30 to 85 °C | |
| XP01External embedded, wide frameYL-GZXP01Q156TC-V1 ↗ | 300–1,000configuration range | HDMI + VGA | Confirm | -30 to 85 °C | |
| BWWSemi-open monitor structureYL-YBWW01Q156TC-V1 ↗ | 350 | HDMI + VGA | Confirm | 0 to 50 °C |
¹ PB03: IP67 applies to the front panel only, not the rear housing or connectors. No IP rating is stated for the other eight models in their source specifications. Confirm the sealing design and test scope for your assembly.
² These are model-source operating ranges, not storage ranges or a collection-wide rating. Confirm the complete assembly, brightness selection and cooling conditions for temperature extremes. A 300–1,000 cd/m² range does not mean every unit delivers 1,000 cd/m².
Source: nine model-specific manufacturer specifications, compiled 14 September 2026. English customer editions are linked below. The front-panel-only interpretation follows the manufacturer’s clarification.
the starting point.
MECHANICAL REFERENCES
Check depth.
Reserve cable clearance.
YW01: 386.56 × 235.99 × 37.6 mm
Source-listed overall dimensions. Use the released drawing to confirm orientation, mounting points and the actual panel cutout.
ZPS: 372.2 × 237 × 25 mm
Source-listed overall dimensions. Use the released drawing to confirm orientation, mounting points and the actual panel cutout.
XP01: 414.9 × 264.3 × 48 mm
Source-listed overall dimensions. Use the released drawing to confirm orientation, mounting points and the actual panel cutout.
TECHNICAL RESOURCES
Nine models.
Nine English datasheets.
Download the specification for the exact model you are considering. Each edition lists display, touch, power, environment and packing information under DongGuan Ever Glory Photoelectric co., Ltd.
Choose your model datasheet
English PDF · direct accessThese are English customer editions compiled from the original specifications. Overall dimensions are not cutout dimensions. Production drawings and model-specific test reports should be requested for your project; no collection-wide certification is claimed.
BEFORE YOU SPECIFY
Compact format.
Specific answers.
Is every 15.6-inch model Full HD?
All nine models listed here specify 1920 × 1080 resolution. They differ in luminance, contrast, response time and operating temperature, so the screen diagonal alone is not sufficient for selection.
Which models offer up to 1,000 cd/m²?
XW02 and XP01 specify a 300–1,000 cd/m² configuration range. Other listed values are YW02 280, YB01 300, YW01 and BWW 350, PB03 and XB01 450, and ZPS 500 cd/m². Confirm the chosen brightness when ordering.
Can I use the same cutout as another 15.6-inch monitor?
Not without checking. For example, the source lists ZPS at 372.2 × 237 × 25 mm and XP01 at 414.9 × 264.3 × 48 mm. These are different housings despite the same diagonal. Compare released mechanical drawings before reusing an enclosure.
Does IP67 cover the complete monitor?
No. The PB03 IP67 statement applies only to the front panel. Rear housing and connectors are not covered. For washdown, outdoor or dusty installations, confirm all exposed surfaces, cable entries and installation seals separately.
Is the BWW model an Android panel PC?
The BWW entry on this page is YL-YBWW01Q156TC-V1, a touchscreen monitor with HDMI + VGA inputs. It is not the separately documented AC-version Android all-in-one. Tell us if your project requires an integrated computer.
What information helps you recommend a model?
Share the installation drawing or available space, ambient light, operating temperature, host video output, touch connection and expected quantity. If the model is undecided, begin with your equipment application and request a shortlist.
MOVE YOUR PROJECT FORWARD
Bring the requirements.
Let’s find the right display.
Tell us what you are building. Start a focused conversation about the model, mechanical fit and configuration your equipment needs.
Not sure about the model yet?
Select “Help me choose” and start with your application.
