THE 21.5-INCH COLLECTION
21.5 inchIndustrial touch
screen monitors.
Compare standard, high-brightness, embedded and stainless-steel configurations. Choose a starting point by brightness, enclosure and host connection.
For equipment builders and OEM teams. No model selected yet? Start with your application.
ONE SIZE. DIFFERENT REQUIREMENTS.
Which configuration fits your project?
Choose an integration direction, then compare the series below. The final configuration follows your equipment requirements.

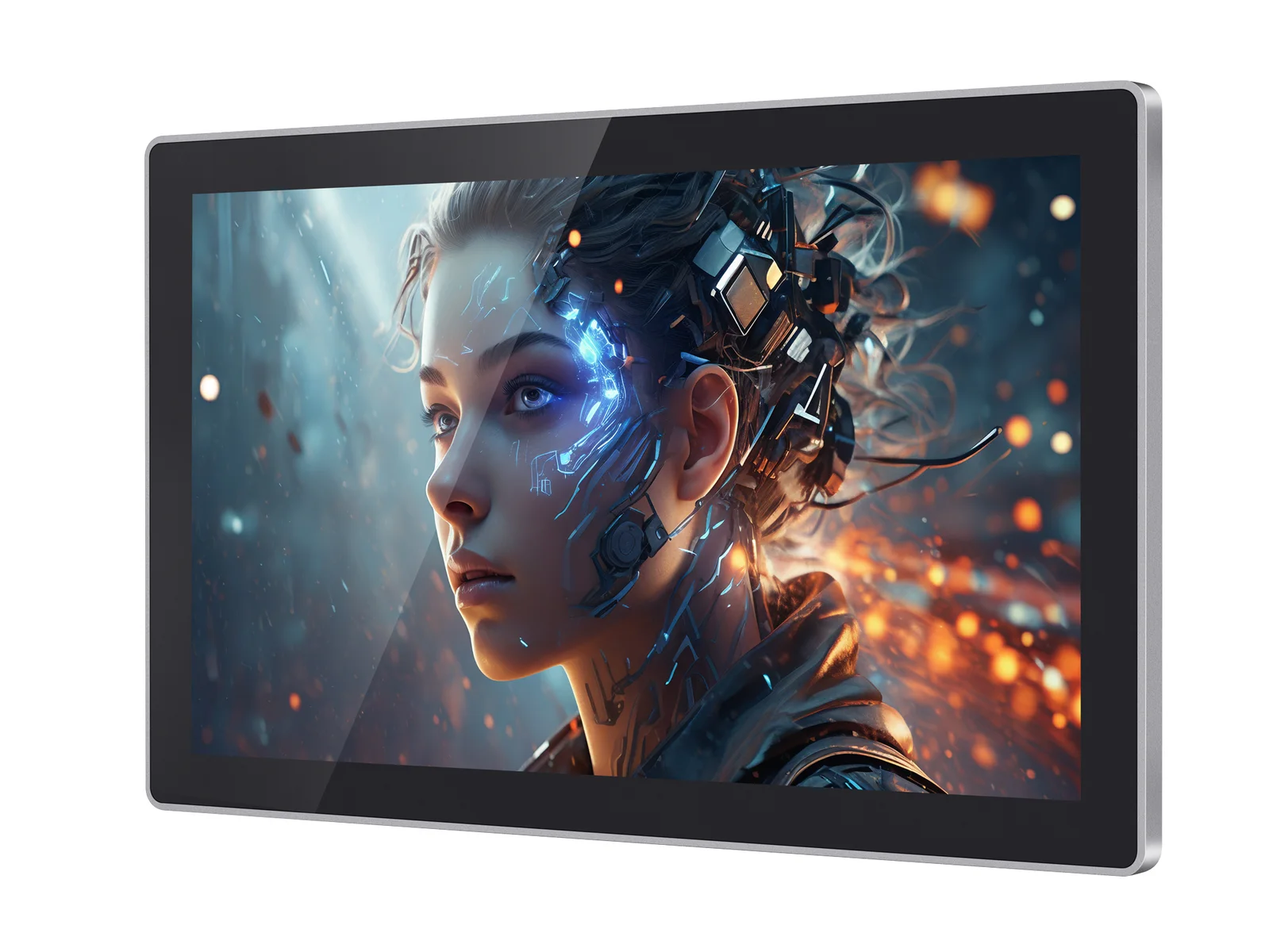

CONTROL PANELS & EQUIPMENT
Standard industrial
A practical starting point for indoor HMI and general equipment integration.
View product details

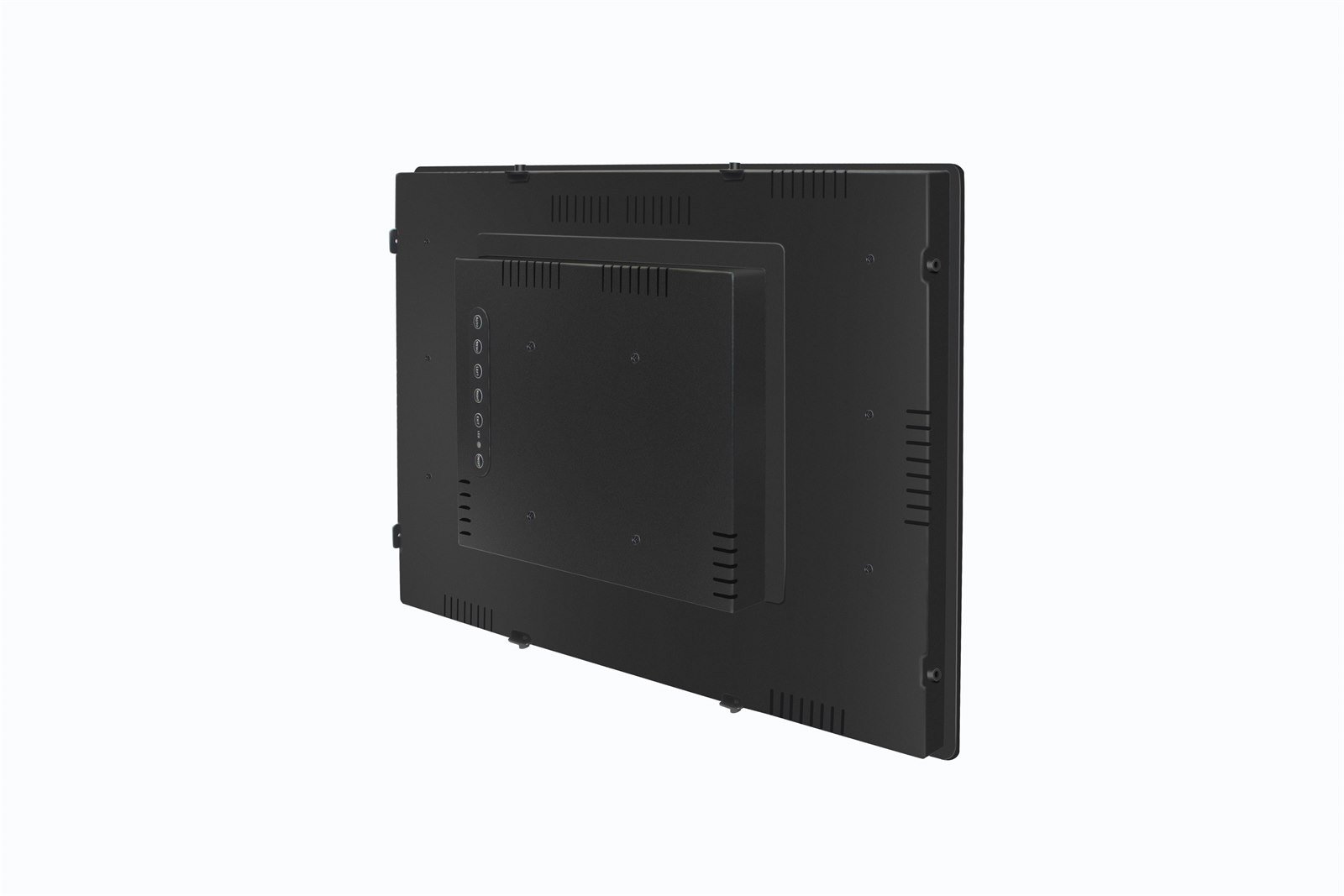

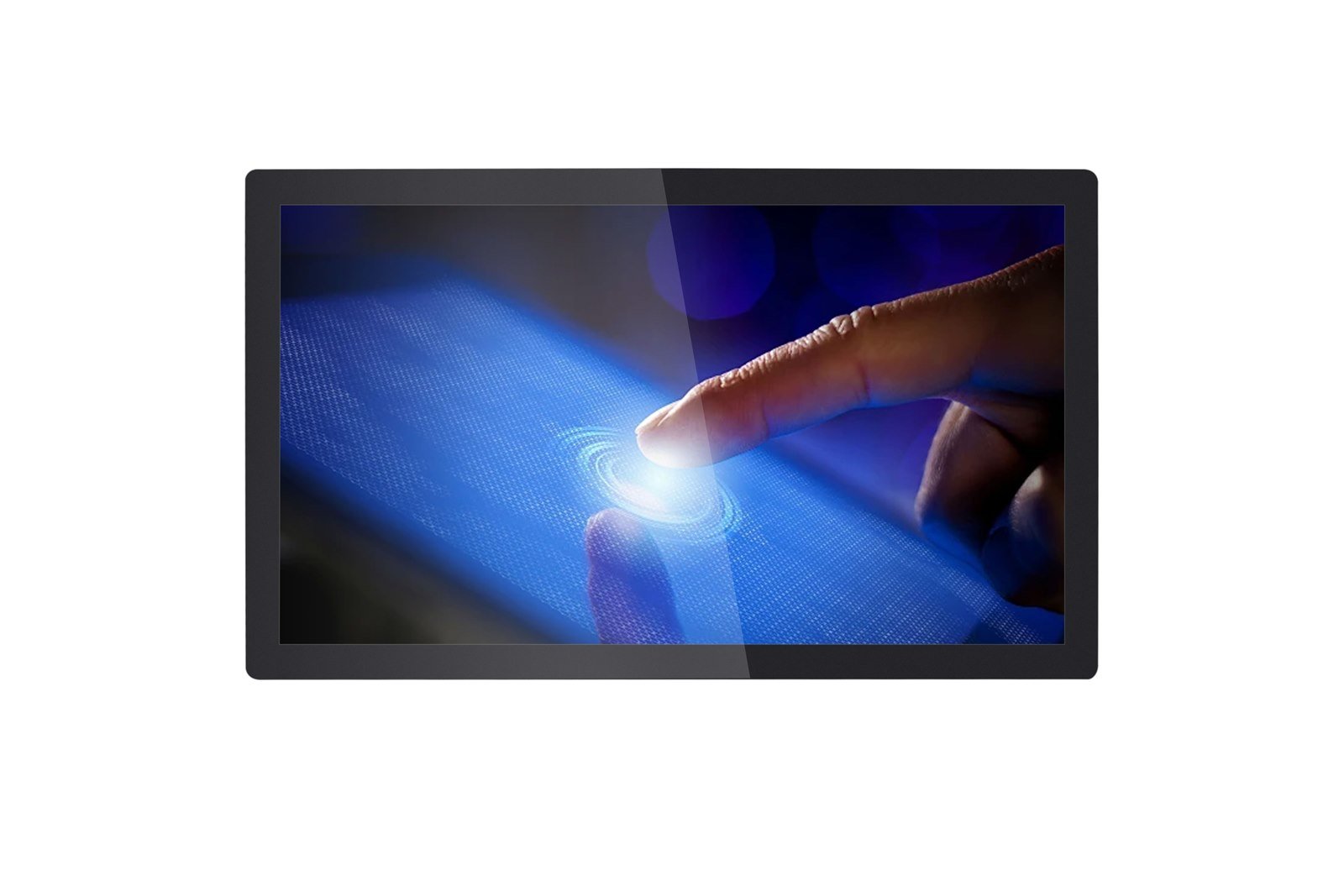

KIOSKS & CUSTOM ENCLOSURES
Bezel-less integration
Explore the housing and mounting arrangement before you commit to a panel cutout.
WHEN AMBIENT LIGHT
CHANGES THE REQUIREMENT.
CONFIGURATION RANGE
SELECTED MODELS
BRIGHTER ENVIRONMENTS
High-brightness options
XW01, XW02, XP01 and NW02 datasheets list 300–1,000 cd/m² ranges. Confirm the brightness for your configuration and plan glare and thermal control together.
Also comparing stainless-steel, slim or other embedded structures? Explore all 12 series below.
SPECIFICATIONS THAT GUIDE A DECISION
Compare 21.5-inch
monitor configurations.
Compare the reference models below. Each links to its English datasheet for the display, connection and environmental values shown. Final brightness and installation details depend on the ordered configuration.
| Series / construction | Brightness cd/m² | Video input | Ingress protection¹ | Operating range² | Request this series |
|---|---|---|---|---|---|
| PB03IP-rated seriesYL-GZPB03Q215TC-V1 ↗ | 500 | HDMI + VGA | IP67¹Front panel only | 0 to 50°C | |
| XW01High-brightness embeddedYL-HZXW01Q215TC-V1 ↗ | 300–1,000 configuration range | HDMI + VGA | IP67¹Front panel only | 0 to 50°C | |
| XW02High-brightness embeddedYL-HZXW02Q215TC-V1 ↗ | 300–1,000 configuration range | HDMI + VGA | Confirm | 0 to 50°C | |
| YW01StandardYL-GZYW01Q215TC-V1 ↗ | 350 | HDMI + VGA | Confirm | 0 to 50°C | |
| YW02Standard · custom configurationYL-GZYW02Q215TC-V1 ↗ | 500 | HDMI + VGA | Confirm | 0 to 50°C | |
| ZPSSlimYL-SZPS01Q215TC-V1 ↗ | 500 | HDMI + VGA | Confirm | 0 to 50°C | |
| PB01Stainless steelYL-SZPB01Q215TC-V1 ↗ | 300 | HDMI + VGA | Confirm | 0 to 50°C | |
| YB01Internal embeddedYL-TZYB01Q215TC-V1 ↗ | 500 | HDMI + VGA | Confirm | 0 to 50°C | |
| XB01External embeddedYL-GZXB01Q215TC-V1 ↗ | 500 | HDMI + VGA | Confirm | 0 to 50°C | |
| XP01External embedded · wide frameYL-GZXP01Q215TC-V1 ↗ | 300–1,000 configuration range | HDMI + VGA | Confirm | 0 to 50°C | |
| NW01Bezel-less embeddedYL-GZNW01Q215TC-V1 ↗ | 500 | HDMI + VGA | Confirm | 0 to 50°C | |
| NW02Bezel-less embeddedYL-GZNW02Q215TC-V1 ↗ | 300–1,000 configuration range | HDMI + VGA | Confirm | −20 to 60°C |
¹ IP67 applies to the front panel only on the listed PB03 and XW01 configurations. It does not describe protection of the rear housing or connectors. Confirm installation and sealing requirements for your equipment.
² Operating ranges follow the linked model datasheets. A brightness range describes configuration choices, not a guarantee of continuous dimming or 1,000 cd/m² on every unit.
Source: the model-specific Ever Glory datasheets linked below, cross-checked against the product comparison sheet. Front-panel IP67 scope and YW02 HDMI + VGA input confirmed by Ever Glory on 9 September 2026. “Confirm” means no value is specified, not a tested absence of protection.
Then confirm the configuration.
DESIGNED INTO YOUR EQUIPMENT
A good fit starts
before the first sample.
Match the mechanical envelope
Check overall dimensions, panel cutout, mounting points and rear clearance against the model-specific drawing.
Define the real environment
Share ambient light, operating temperature, cleaning method and exposure to dust or water. Brightness alone does not establish outdoor suitability.
Confirm the complete connection
Specify the host video output, touch communication, cable direction and power supply. A monitor and an Android panel PC are different configurations.
TECHNICAL RESOURCES
From the series
to the source.
Open the original model datasheet before you specify. Check the part number, brightness, interfaces and drawing availability for your selected configuration.
English datasheets
12 English PDF datasheets with model-specific technical specifications. No inquiry form is required to view them.
Browse by series ↓MECHANICAL REFERENCESCheck the installation
Four datasheets include mechanical drawings. Use the correct model reference, then confirm the installation drawing for your build.
View available drawings ↓Find your model datasheet
English technical editionsYL-GZPB03Q215TC-V1
Drawing included · page 2 · IP67 front panel only
PDF · English · 274 KBYL-HZXW01Q215TC-V1
Installation drawing on request · IP67 front panel only
PDF · English · 179 KBThese English editions describe the listed reference models. PB03 and XW01 front-panel IP67 scope follows Ever Glory’s current clarification; the rear housing and connectors are not covered by that rating. Request the applicable report if your project requires test evidence.
Mechanical drawing references
PB03, YW01, PB01 and NW02 include drawings in their datasheets. The other eight documents refer to a separate or pending drawing. Request the released drawing before defining a panel cutout or tooling.
BEFORE YOU SPECIFY
Clear answers.
Better decisions.
Questions from equipment selection
to installation planning.
What is the resolution of these 21.5-inch monitors?
All 12 monitor configurations in this collection list 1920 × 1080 resolution with a 16:9 aspect ratio. The listed active display area is approximately 476.1 × 267.8 mm. This is the viewing area, not the enclosure size or panel cutout.
Which configurations offer higher brightness?
The linked XW01, XW02, XP01 and NW02 datasheets list brightness ranges of 300–1,000 cd/m². The other reference models list 300, 350 or 500 cd/m². Confirm the selected brightness together with thermal and glare requirements; the range does not mean every unit provides 1,000 cd/m².
Are all 21.5-inch monitors waterproof?
No. The PB03 and XW01 configurations listed here have an IP67 front panel. This rating applies only to the front panel, not to the rear housing or connectors. Other series should be checked individually against the installation and protection requirements of your equipment.
Can the same cutout be used for every series?
Do not assume a common cutout from the 21.5-inch screen size. Housing depth, bezel geometry and mounting arrangement can differ. Use the mechanical drawing for the selected model to confirm fit.
Do these monitors include an Android computer?
This comparison covers monitor configurations. An Android panel PC includes computing hardware and should be selected separately. Tell us if your equipment needs an integrated computer so the recommendation matches your application.
What should I provide for a model recommendation?
Share the application, mounting arrangement, brightness or environment requirements, host interfaces and expected quantity. If a detail is undecided, describe what you know. A drawing can be requested during the technical follow-up.
MOVE YOUR PROJECT FORWARD
Bring the requirements.
Let’s find the right display.
Tell us what you are building. Start a focused conversation about the model, mechanical fit and configuration your equipment needs.
Not sure about the model yet?
Select “Help me choose” and start with your application.
