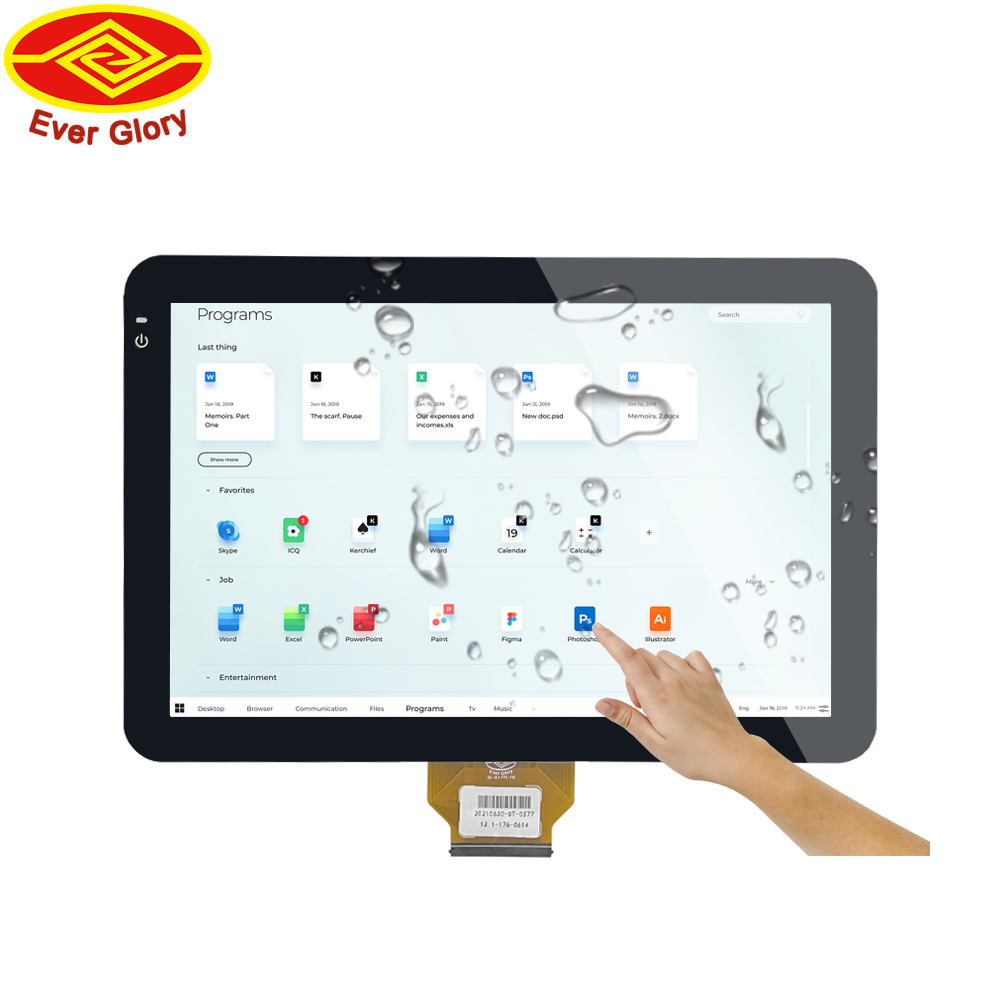

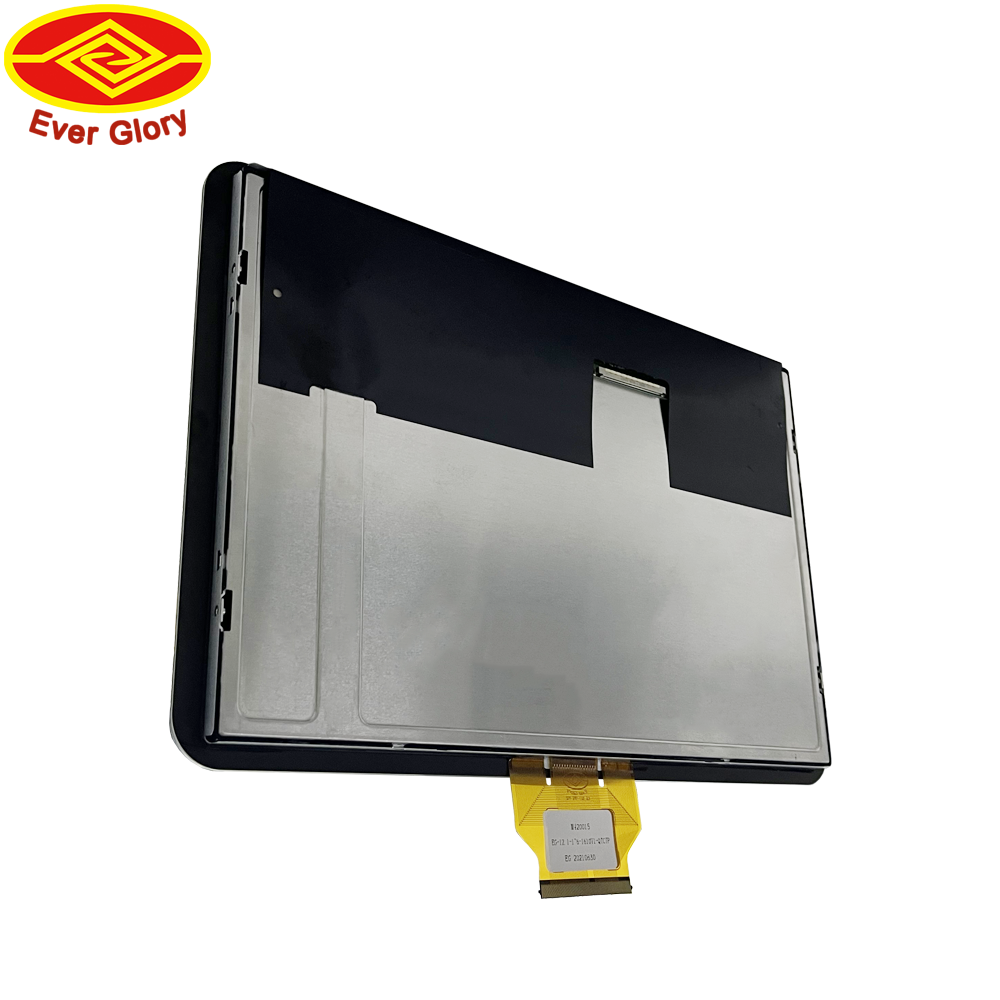

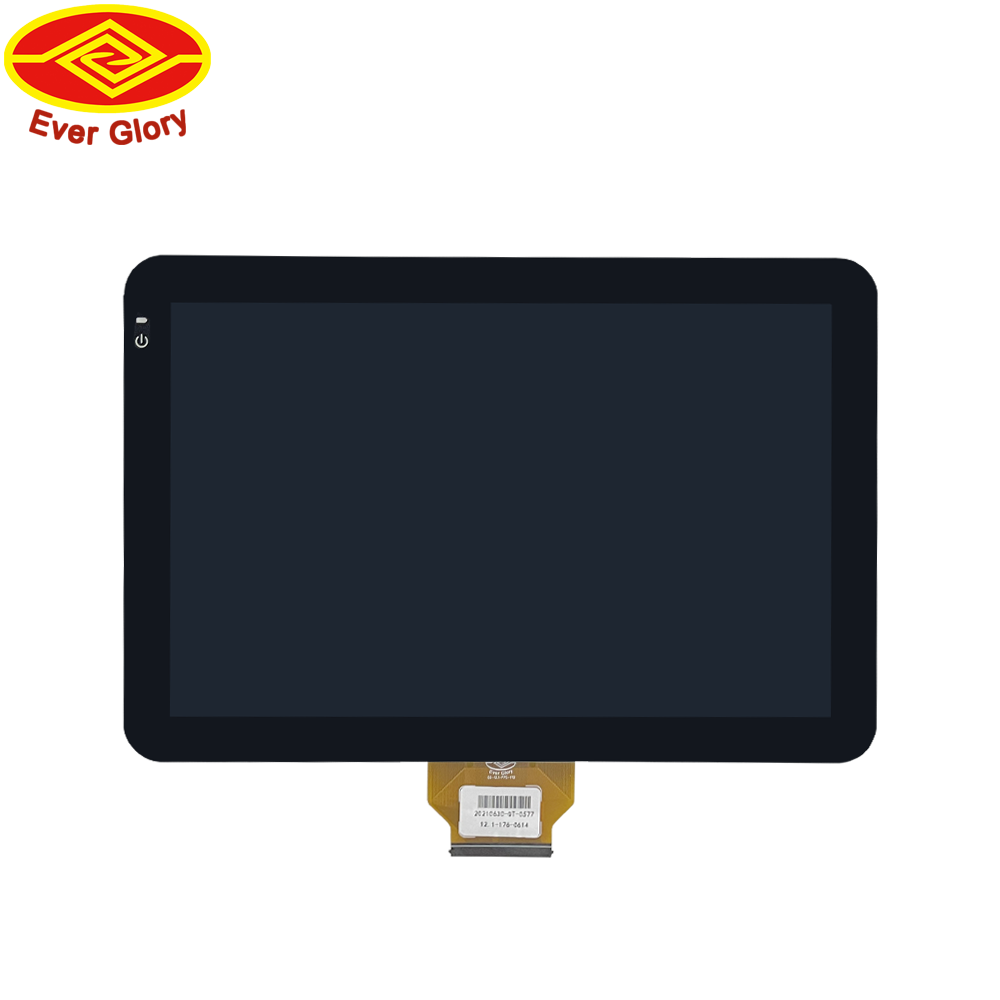

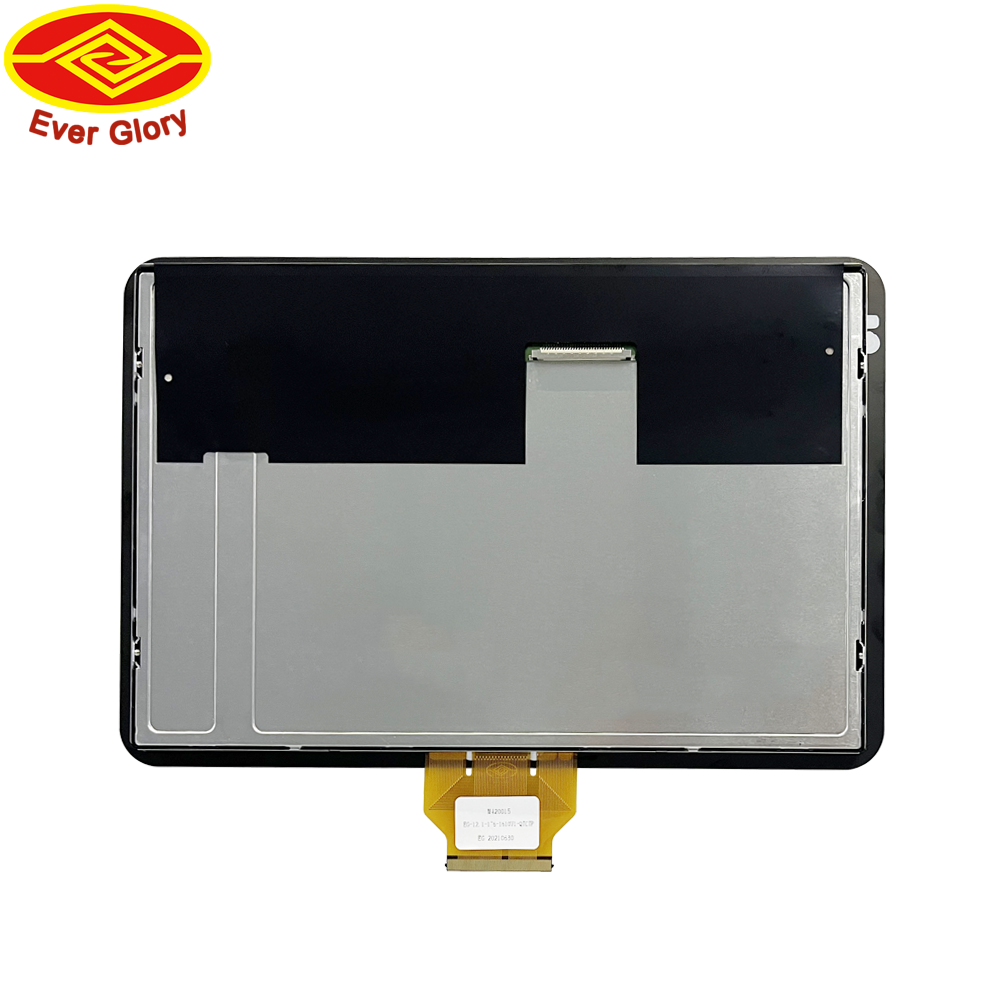

| Product Number | EG-13.3-A-1609V1-QTCTP-A |
|---|---|
| Touch Panel P/N | EG-13.3-A-1609V1 |
| Display P/N | G133HAN01.1 |
| Screen Diagonal | 13.3/16:9 |
| Application | Banking touch system, Coffee machine, Gaming, Industrial control, Intelligent Mirror, Medical Devices, Outdoor Applications, Smart Home |
| Interface | I2C, USB, RS232 |
| Type | Capacitive |
| Product Name | 13.3 inch LCD Touch modules |
| LCD Size | Standard up to 65 inch |
| Support Touch Points | Standard up to 65 inch |
| Structure | Glass glass/ glass film/ glass film film |
| Touch Controller | EETI/ILITEK |
| Surface Hardness | 7H or Custom |
| Operating temp | -20~70 degree |
| Lamination to display | optical bonding |
| Operating Systems | Windows, Wince, Andriod, Linux, Mac |
| Transmittance | ＞85% |
| Product Number | EG-13.3-A-1609V1-QTCTP-A |
|---|---|
| Touch Panel P/N | EG-13.3-A-1609V1 |
| Display P/N | G133HAN01.1 |
| Screen Diagonal | 13.3/16:9 |
| Application | Banking touch system, Coffee machine, Gaming, Industrial control, Intelligent Mirror, Medical Devices, Outdoor Applications, Smart Home |
| Interface | I2C, USB, RS232 |
| Type | Capacitive |
| Product Name | 13.3 inch LCD Touch modules |
| LCD Size | Standard up to 65 inch |
| Support Touch Points | Standard up to 65 inch |
| Structure | Glass glass/ glass film/ glass film film |
| Touch Controller | EETI/ILITEK |
| Surface Hardness | 7H or Custom |
| Operating temp | -20~70 degree |
| Lamination to display | optical bonding |
| Operating Systems | Windows, Wince, Andriod, Linux, Mac |
| Transmittance | ＞85% |
13.3″ QHD • 2560×1440 • LCD + Driver Board Kit • Fast Integration
This 13.3-inch QHD LCD driver board kit is designed for fast display bring-up in embedded projects, prototyping, and retrofit builds. Among its features, the 13.3 inch LCD driver board kit allows easier integration into existing systems. Instead of sourcing a panel and controller separately, you get a matched set that simplifies video input integration and shortens validation time. In addition, the kit can be paired with touch options when your project needs interactive control.
If you need a complete interactive display product instead of a bare LCD kit, browse:
industrial touchscreen monitors.
| Item | Specification |
|---|---|
| Screen size | 13.3-inch LCD |
| Resolution | 2560×1440 (QHD) |
| Kit type | LCD panel + driver/controller board |
| Video input | Confirm input type (e.g., HDMI/DP/eDP) per configuration |
| Power | Confirm voltage and current requirements per board |
| Mounting | Confirm mounting holes, bracket options, and cable routing space |
| Touch option | Optional PCAP touch overlay/module based on project needs |
| Use environment | Indoor / controlled environment by default; define sealing if needed |
1) Confirm interface and signal path
Match input type, cable length, and connector orientation before enclosure design.
2) Reserve space for heat and airflow
Driver boards may need airflow or thermal contact, especially in compact enclosures.
3) Plan cable routing early
Avoid tight bends and keep signal cables away from noisy power wiring where possible.
4) Add touch only when the display baseline is stable
For PCAP fundamentals, see
how capacitive touch screens work.
For sealing strategy, reference:
waterproof touch screens (IP65).
For glare and brightness strategy, see:
sunlight readable touch displays.
This product is an LCD panel with a driver board kit. Therefore, it is intended for embedded integration, prototyping, and custom builds.
Input options depend on the board configuration. Please share your host output type and we will confirm the correct board for compatibility.
Yes. A PCAP touch option can be added based on your interaction needs. In addition, the touch solution should be validated with your UI and enclosure design.
It is designed for indoor and controlled environments by default. If you need outdoor use, define brightness, glare control, and sealing requirements early.
Please share your host interface, power constraints, enclosure drawing, cable length needs, and whether touch or sealing is required.
Dongguan Ever Glory Photoelectric Co., Ltd., founded in 2011, is a high-tech enterprise with independent intellectual property rights. We operate 20,000㎡ production facilities located in Shenzhen and Dongguan. We specialize in providing high-quality 5″ to 75″ G+G and G+F capacitive touch panels, display solutions, and touch monitors and panel PCs. All production is completed in-house, with a dedicated cover glass production line, a Class-100 dust-free lamination workshop, and a monitor assembly line.
As a rapidly growing and innovative company, we were among the first in mainland China to initiate research and production of large-size PCAP technology, and we hold patents for lamination technology, equipment, and adhesives.
We are committed to being your one-stop touch solution partner. With over ten years of experience, we have developed extensive expertise across various applications, including industrial, outdoor, medical, banking, education, automotive, home automation,and entertainment sectors.
Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2.Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
