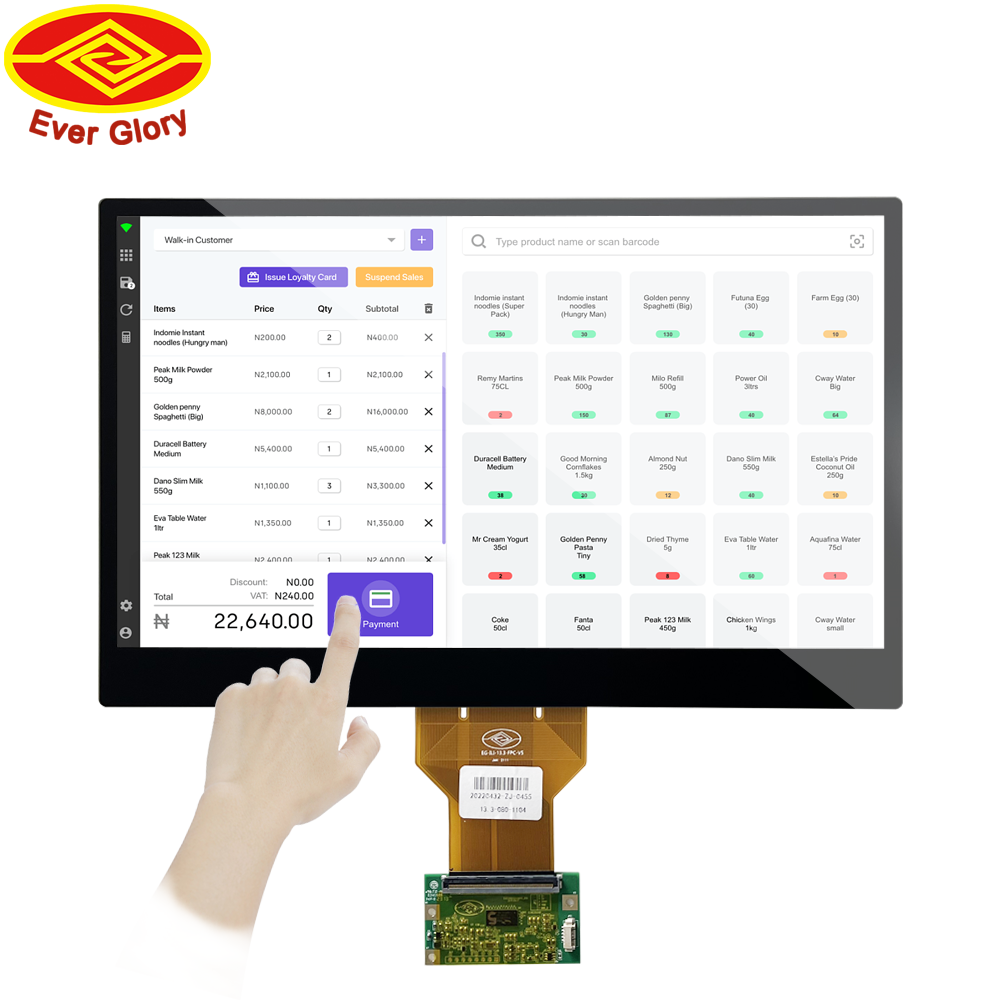

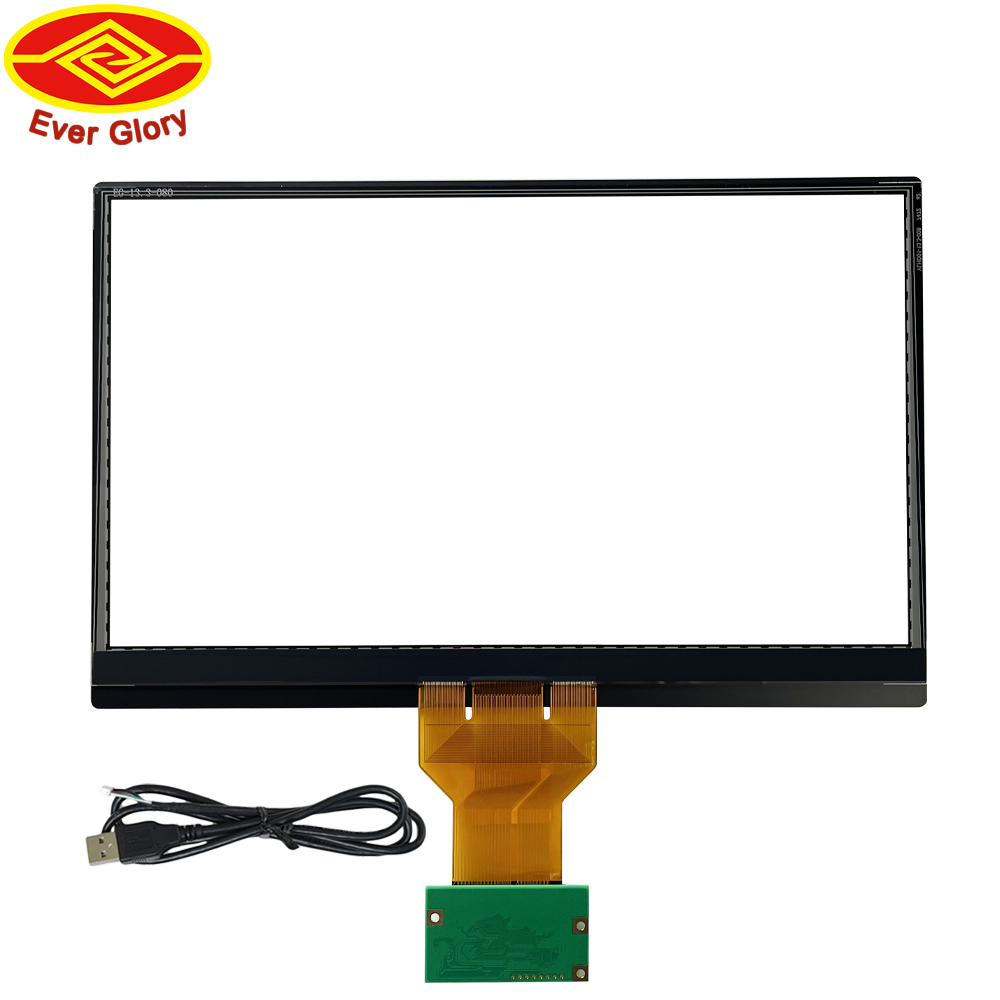

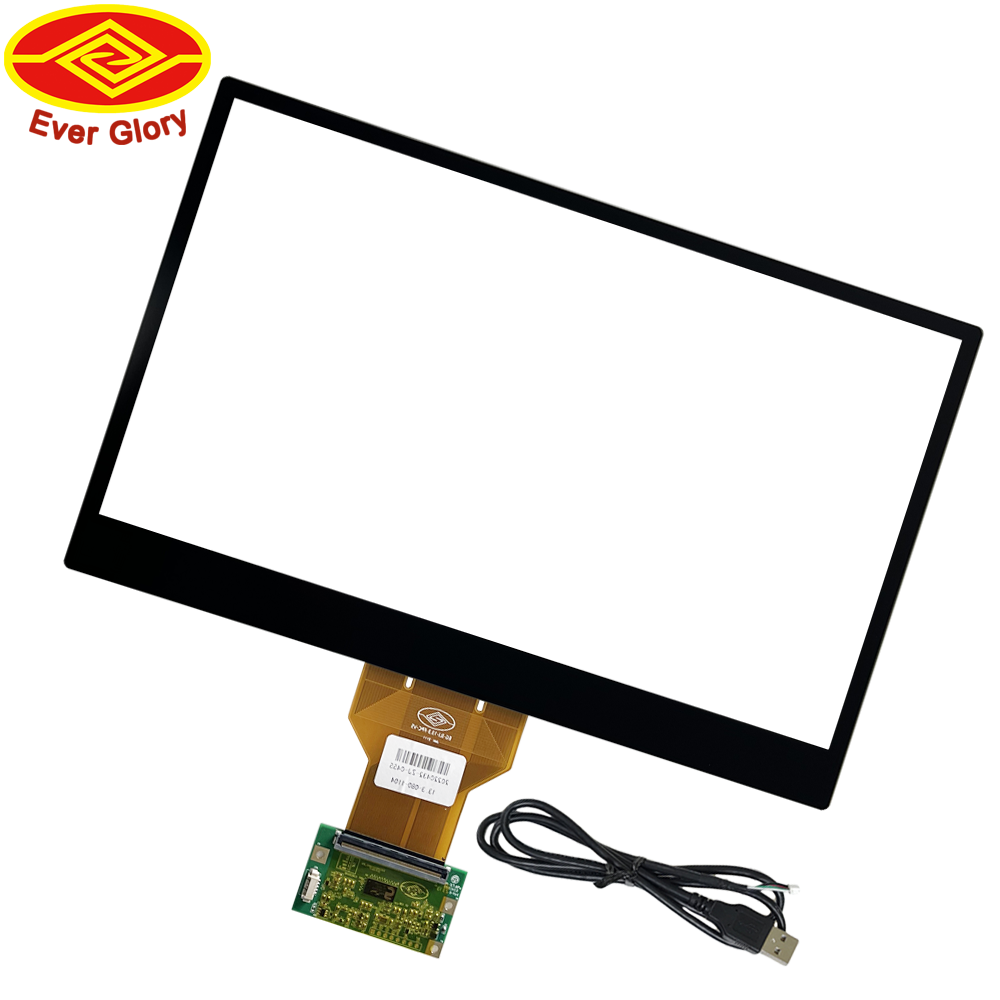

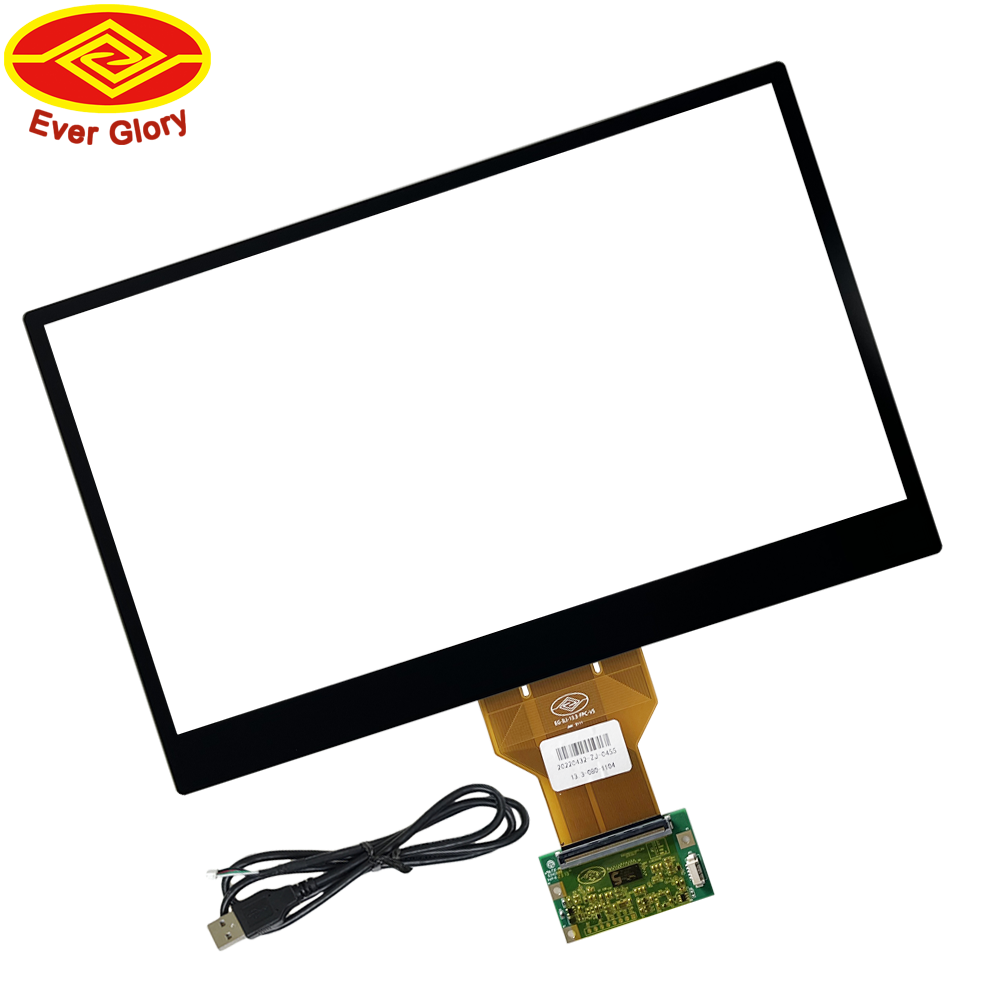

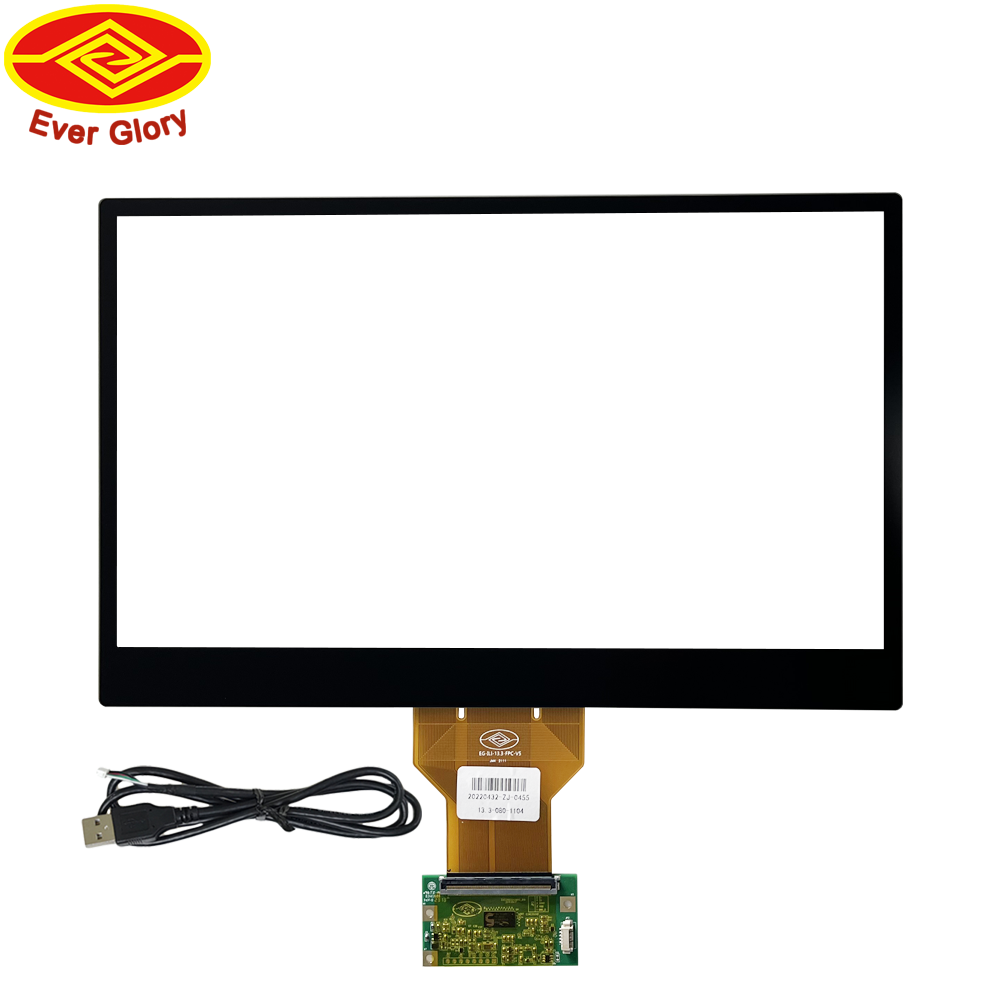

17.3 Inch Touchscreen High Solution EETI Ilitek Usb Lcd Touch Panel
| Product Number | EG-17.3-A-1609V1 |
|---|---|
| Type | Projective Capacitive |
| Connection | COB |
| Screen Diagonal | 17.3 inch [16:9] |

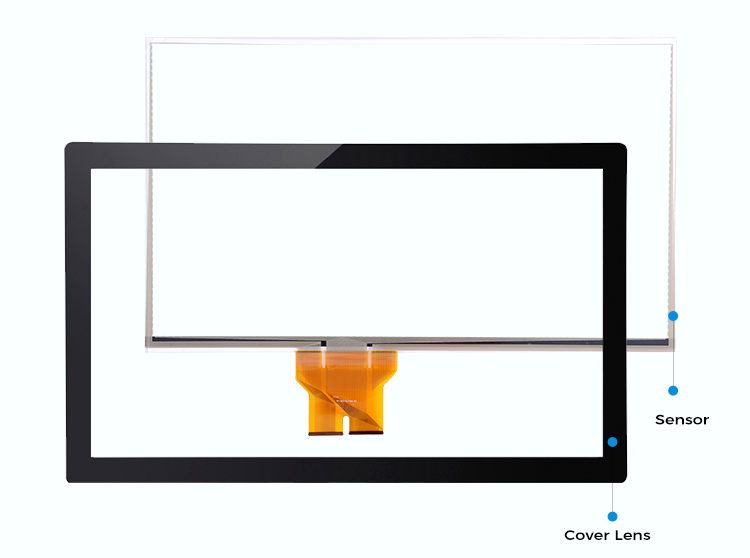

| Structures | G+G |
| Outline Dimension | Outline Dimension |
| View Area | 215.21(W)*382.29(L)±0.3mm |
| Active Area | 216.21(W)*383.29(L)±0.3mm |
| Sensor Thickness | 0.7±0.05mm |
| Input Mode | Finger |

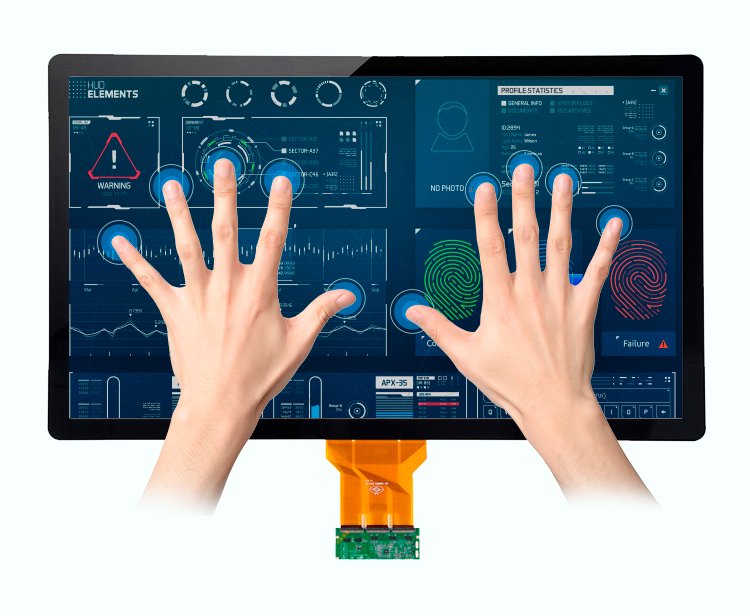

| Touch Points | 1~10 |
| Interface | USB |
| Transmittance | >85% |
| Product Number | EG-17.3-A-1609V1 |
|---|---|
| Type | Projective Capacitive |
| Connection | COB |
| Screen Diagonal | 17.3 inch [16:9] |
| Structures | G+G |
| Outline Dimension | Outline Dimension |
| View Area | 215.21(W)*382.29(L)±0.3mm |
| Active Area | 216.21(W)*383.29(L)±0.3mm |
| Sensor Thickness | 0.7±0.05mm |
| Input Mode | Finger |
| Touch Points | 1~10 |
| Interface | USB |
| Transmittance | >85% |
17.3 Inch Touchscreen High Solution EETI Ilitek Usb Lcd Touch Panel Engineering Information
17.3 Inch Touchscreen High Solution EETI Ilitek Usb Lcd Touch Panel is a 17.3 inch projected capacitive touch panel for display module and HMI integration. It is best reviewed with LCD data, glass drawing, EETI controller requirements, bonding method and the final industrial equipment, kiosks and embedded display projects.
- Product Role
- Touch-enabled HMI or display assembly component
- Size / Format
- 17.3 inch
- Best Fit
- custom PCAP projects where mechanical fit and controller tuning decide final performance

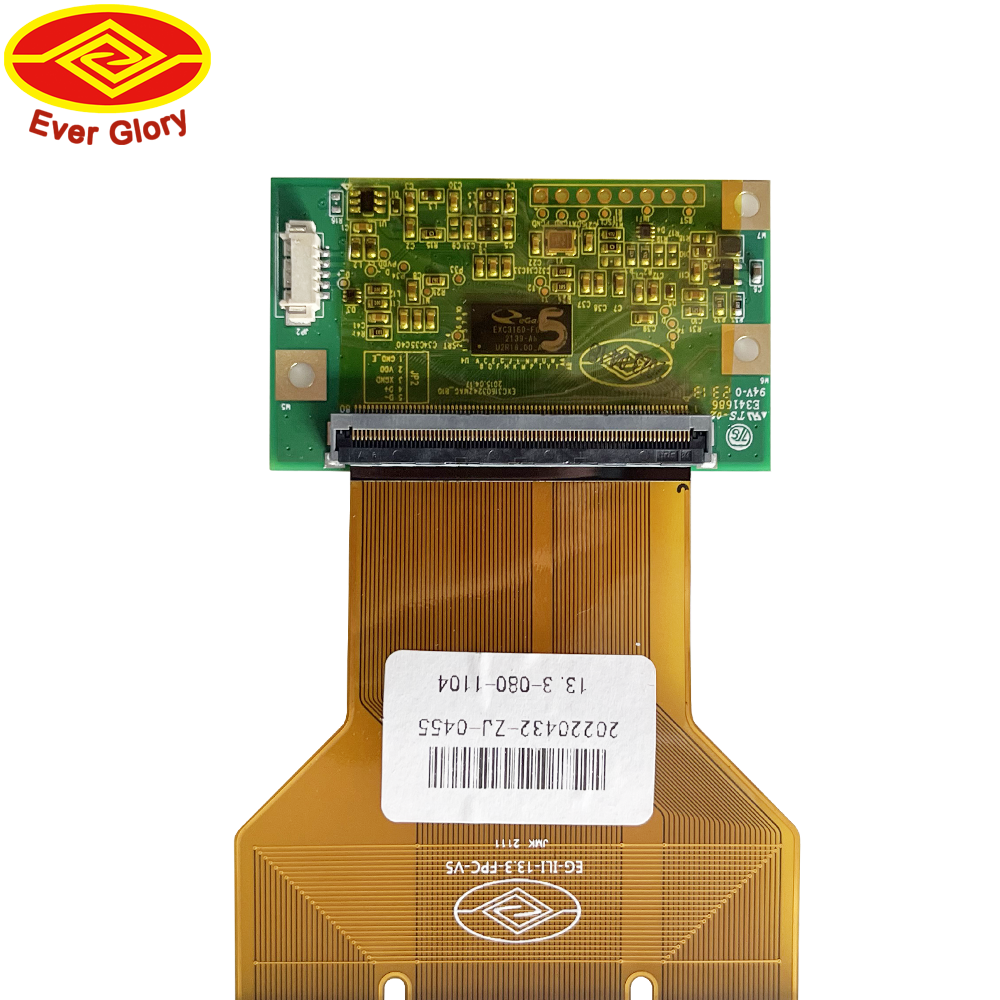

- Controller
- EETI controller
- Cover Glass
- custom cover glass with printing and outline options
- Customization
- Glass outline, logo printing, black border, AG/AR/AF coating, FPC direction, connector and bonding method
Information Needed for Review
- LCD model, active area, visible area and mechanical drawing for the 17.3 inch structure.
- EETI controller requirement, communication interface and operating system or mainboard information.
- custom cover glass with printing and outline options, bonding choice, edge sealing requirement and housing tolerance.

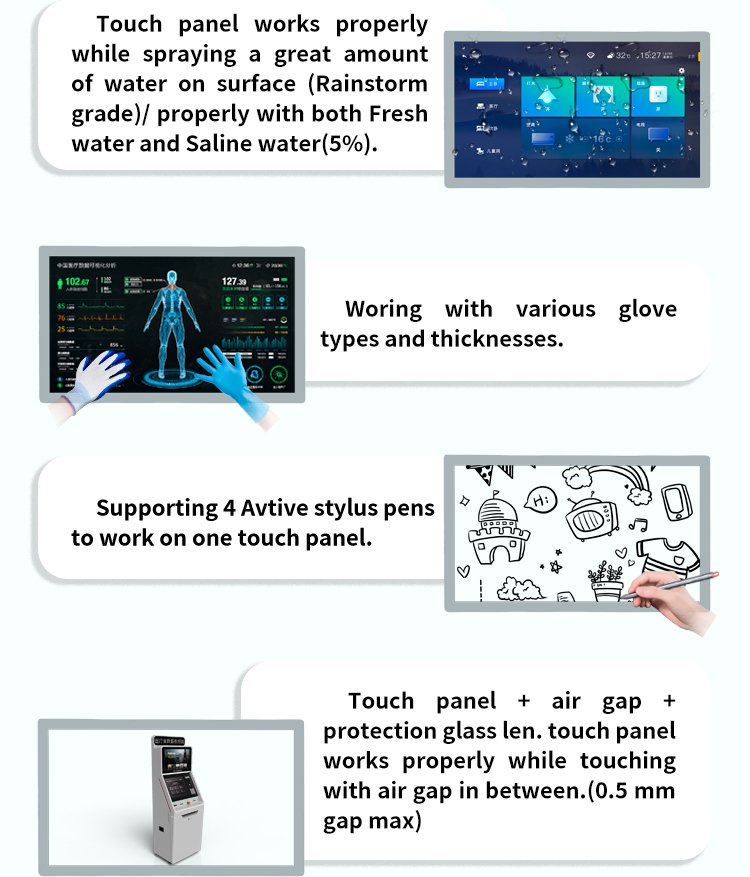

- Operating temperature, humidity, glove or wet-touch expectation, EMI grounding and annual demand.
Typical Applications
custom PCAP projects where mechanical fit and controller tuning decide final performance
Industrial HMI panels, wall-mounted terminals, embedded displays and control equipment.
Projects that need stable PCAP touch performance after enclosure and firmware tuning.
Common Engineering Questions
Is this a standard off-the-shelf touch screen?
This 17.3 inch page is mainly for engineered projects. Ever Glory can review standard dimensions, but final drawings, controller choice and cover glass details should be confirmed before production.
What makes this page different from other PCAP products?
The focus here is custom PCAP projects where mechanical fit and controller tuning decide final performance. The key review points are EETI controller, custom cover glass with printing and outline options, bonding and the final installation environment.
What should be sent for a fast quotation?
Send the LCD model, drawing, interface request, FPC direction, glass thickness, surface treatment, target quantity and any glove, wet touch or EMI requirement.
For an accurate quotation, send drawings and application details instead of only screen size.
