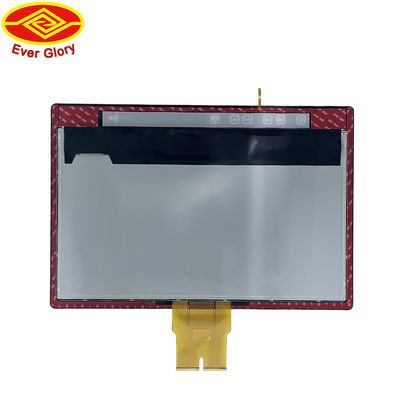

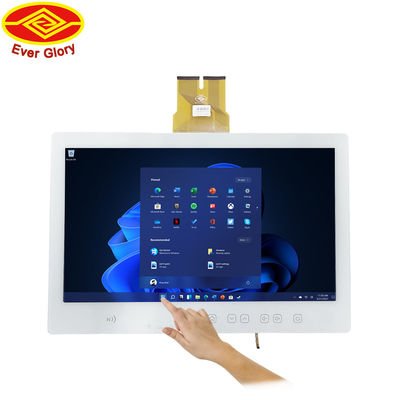

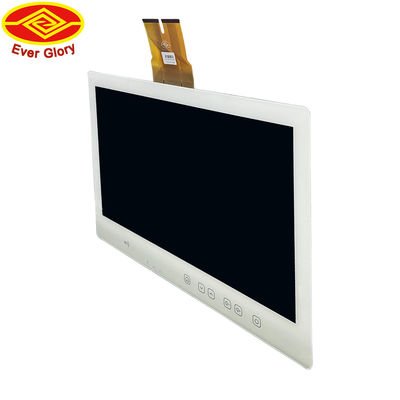

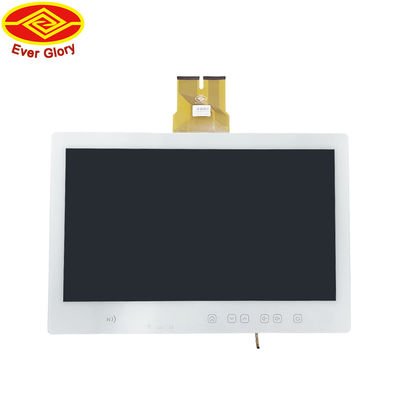

24″ Touch Display Module | Large-Format PCAP | OEM/ODM
| Touch Panel P/N | EG-24-A-1609V1 |
|---|---|
| Display P/N | G24HAN01.1 |
| Screen Diagonal | 24 inch |
| View angle | 89/89/89/89, Full view angle |
| Cover surface hardness | ≥6 H |
| Impact resistance | ≥IK07 |
| Luminance, white | 500cd/m2 |
| Operation Conditions | 20%~90% RH |
| Storage Conditions | 20%~70% RH |
| Touch Response Time | ≤25 ms |
| Pixels H×V | 1960*1080 |
| Pixel Pitch | 0.297(H) x 0.297(W) mm |
| Touch Panel P/N | EG-24-A-1609V1 |
|---|---|
| Display P/N | G24HAN01.1 |
| Screen Diagonal | 24 inch |
| View angle | 89/89/89/89, Full view angle |
| Cover surface hardness | ≥6 H |
| Impact resistance | ≥IK07 |
| Luminance, white | 500cd/m2 |
| Operation Conditions | 20%~90% RH |
| Storage Conditions | 20%~70% RH |
| Touch Response Time | ≤25 ms |
| Pixels H×V | 1960*1080 |
| Pixel Pitch | 0.297(H) x 0.297(W) mm |
public terminals, and industrial interfaces. We deliver a stable touch + display stack with integration notes
to reduce field failures after enclosure assembly.
- Best for: self-service kiosks, ticketing/payment terminals, interactive signage, industrial operator stations
- Options: PCAP multi-touch, optical bonding, high brightness, cover lens coatings (AG/AR/AF), front sealing strategy (project-based)
- Support: stack recommendation + grounding/cable routing + stress control guidance
Get a Quote — Share your target specs and enclosure drawing for faster selection.
Key highlights
Large-format stability
Large sizes are more sensitive to enclosure stress and noise. We recommend stack design and integration checks to prevent edge dead zones and drift.
Readability options
For public terminals and bright environments, combine glare control (AG/AR) with brightness strategy and (optional) optical bonding.
OEM-friendly interface
Touch interface and display interface can be matched to your mainboard. Optional driver board solutions can be discussed if needed.
Core specifications
| Size | 24 inch |
| Touch Technology | PCAP / Projected Capacitive |
| Touch Points | 1~60 |
| Touch Interface | USB / I2C |
| Resolution | 1920×1080 / 1920×1200 |
| Display Interface | LVDS / eDP |
| Brightness (Typical) | standard / high brightness option |
| Cover Lens | [thickness + tempered/strengthened |
| Surface Treatment | AG / AR / AF |
| Operating Temp | -20~70°C / wide-temp |
Browse related products:
Touch Display Module
Configuration options (choose by environment)
- Optical bonding: reduce reflection and improve contrast for dark UIs and bright environments
- High brightness: match target installation lighting (kiosk / signage / semi-outdoor)
- Cover lens & printing: black border printing, custom window, thickness for impact risk
- Coatings: AG/AR/AF to balance glare, contrast, and cleanability
- Stability tuning: EMI/ESD considerations, grounding reference, cable routing constraints
Send your requirements — we’ll propose a stable stack and integration notes.
Integration notes (large format)
Mechanical stress control
Large formats are sensitive to uneven bezel compression. Use uniform support points and controlled torque to avoid edge dead zones.
Grounding & cable routing
Most ghost touches trace to EMI, grounding, and routing near high-current lines. Re-test after final enclosure assembly.
Brightness + sealing as a system
For kiosks, plan readability and sealing together. Validate under real lighting and (if required) water film conditions.
Validation before deployment
We recommend a two-stage validation: (1) baseline test on bench, then (2) re-test after mounting,
because stress and grounding can change touch behavior.
Reference checklist:
Touchscreen Test Checklist
FAQ
Is this a finished touchscreen monitor?
No. This is a touch display module intended for OEM integration. If you need a complete finished unit, select a Touch Screen Monitor product.
When should we use optical bonding?
Optical bonding is commonly recommended for bright environments and reflective scenes to improve contrast and reduce reflections, especially on dark UI screens.
What do you need to quote quickly?
Resolution, brightness target, touch interface, operating temperature, and enclosure constraints. A drawing of your front bezel speeds up integration decisions.
Dongguan Ever Glory Photoelectric Co., Ltd., founded in 2011, is a high-tech enterprise with independent intellectual property rights. We operate 20,000㎡ production facilities located in Shenzhen and Dongguan. We specialize in providing high-quality 5″ to 75″ G+G and G+F capacitive touch panels, display solutions, and touch monitors and panel PCs. All production is completed in-house, with a dedicated cover glass production line, a Class-100 dust-free lamination workshop, and a monitor assembly line.
As a rapidly growing and innovative company, we were among the first in mainland China to initiate research and production of large-size PCAP technology, and we hold patents for lamination technology, equipment, and adhesives.
We are committed to being your one-stop touch solution partner. With over ten years of experience, we have developed extensive expertise across various applications, including industrial, outdoor, medical, banking, education, automotive, home automation,and entertainment sectors.
Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2.Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
24 Touch Display Module | Large-Format PCAP | OEM/ODM Engineering Information
24 Touch Display Module | Large-Format PCAP | OEM/ODM is a custom size touch display module for embedded display, OEM equipment, kiosk and HMI integration. It should be reviewed with LCD model, touch interface, video input, backlight, bonding and mechanical mounting so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Display Module
- Product Role
- touch display module
- Size / Format
- custom size
- Best Fit
- embedded display, OEM equipment, kiosk and HMI integration
- Review Focus
- LCD model, touch interface, video input, backlight, bonding and mechanical mounting
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and custom size display or housing requirement.
- LCD model, touch interface, video input, backlight, bonding and mechanical mounting.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications
OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects where display integration, touch stability and mechanical fit need to be confirmed before production.
This page is positioned under Touch Display Module, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this touch display module ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send LCD model, touch interface, video input, backlight, bonding and mechanical mounting, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
