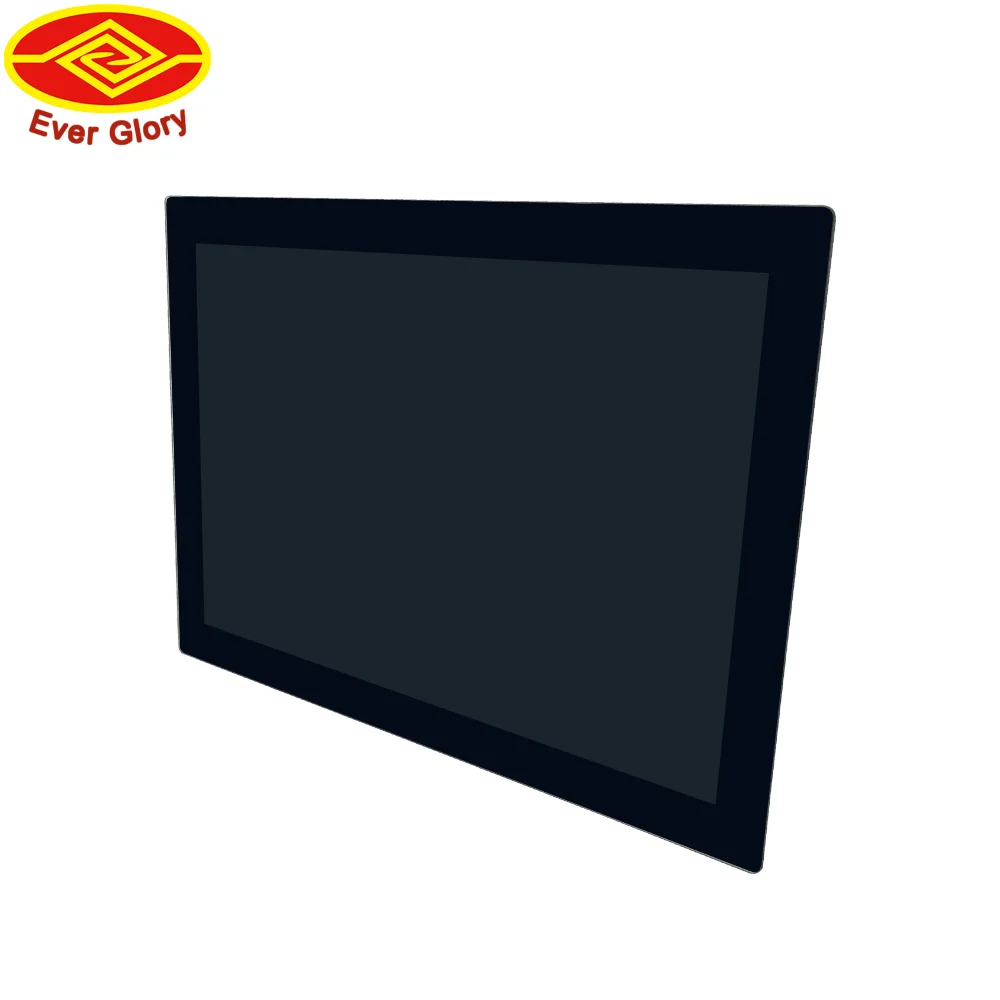

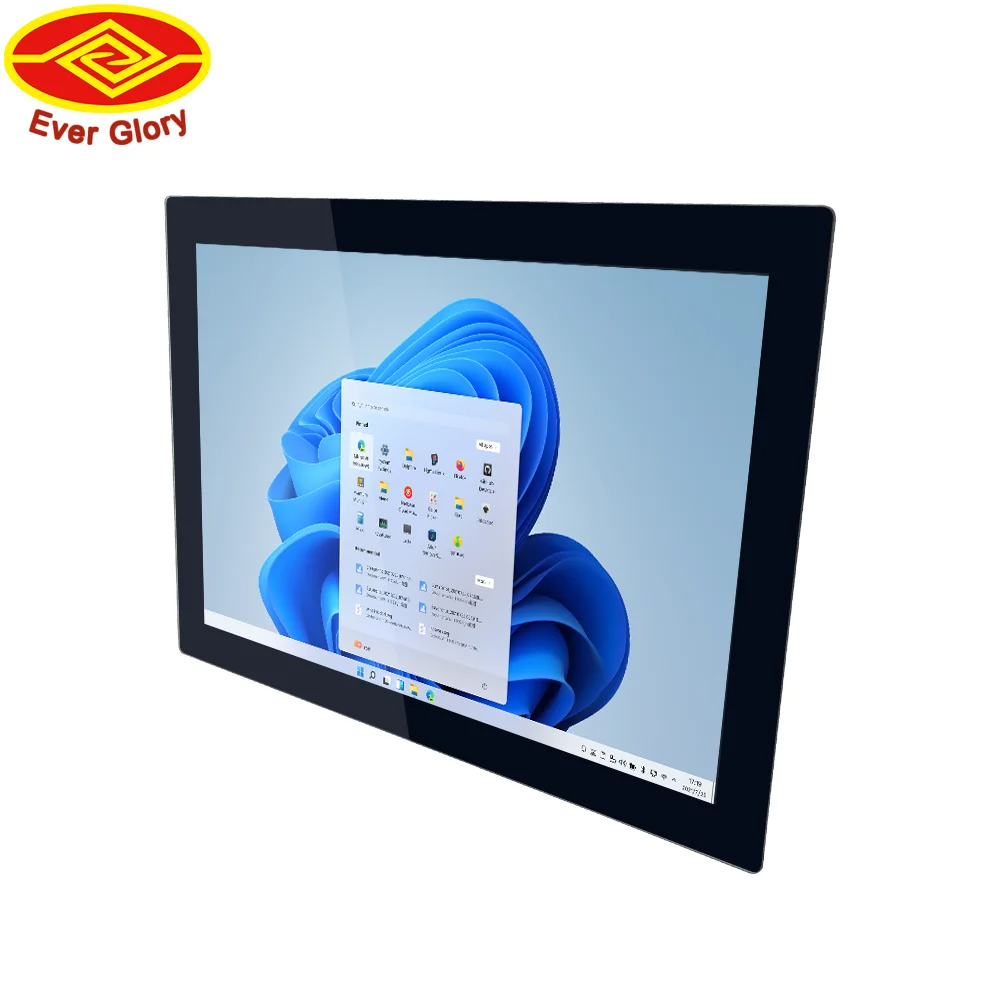

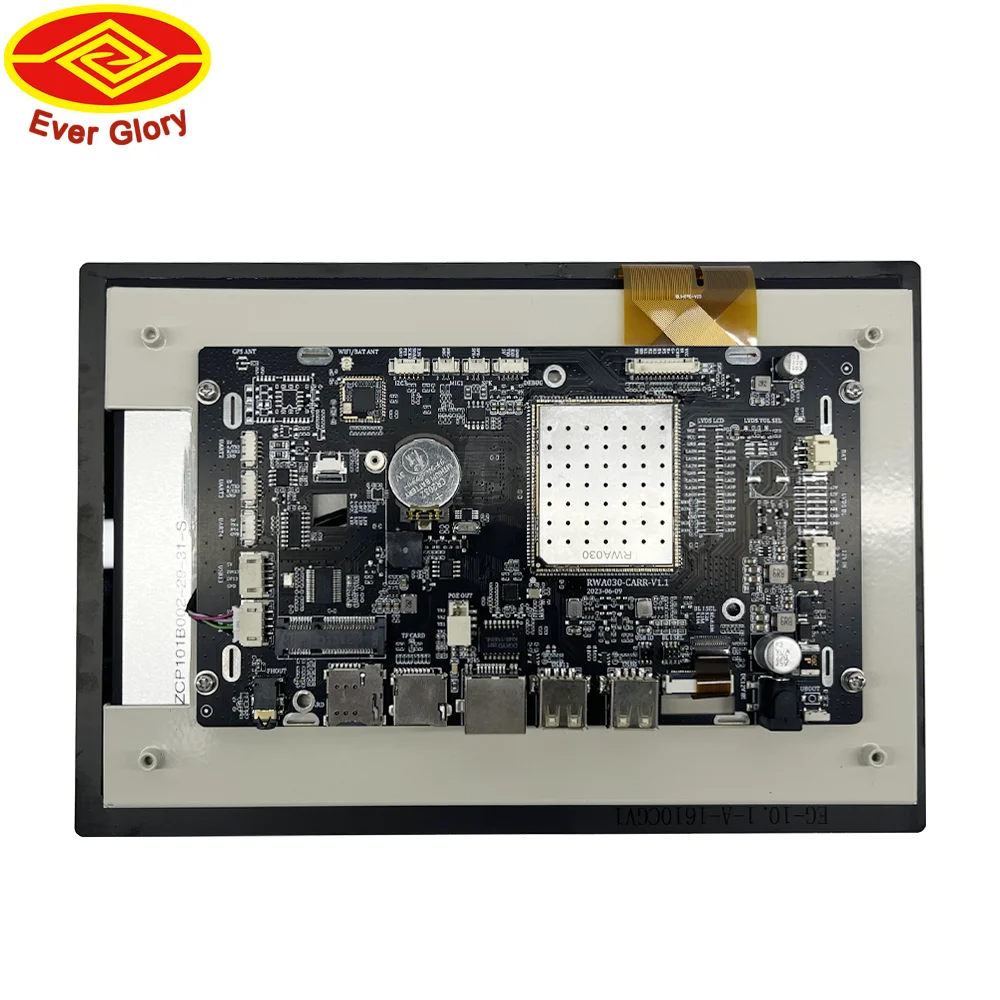

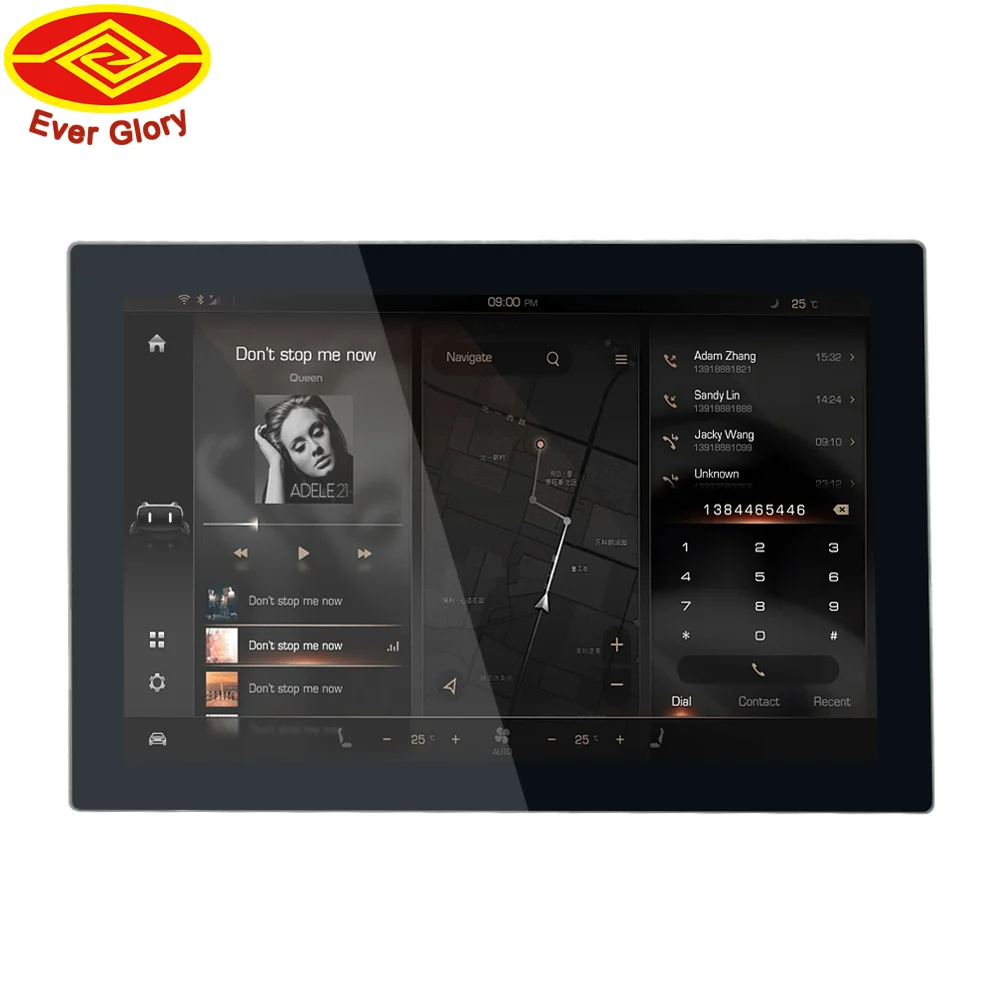

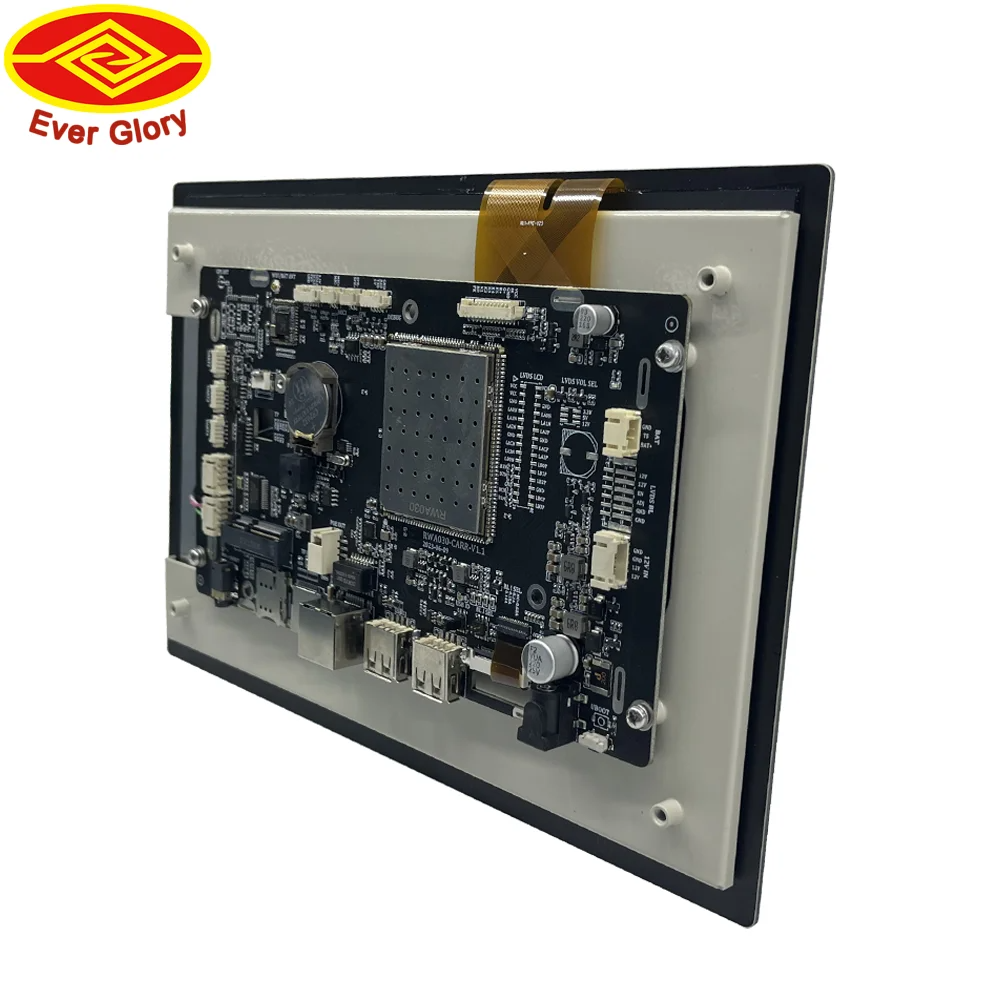

Industrial Customize 7 Inch 10 Touch Points Touch Display Module

Additional information

Product Number

EG-7-A-1609V1-KTCTP-IL

Touch Panel P/N

EG-7-A-1609V1

Display P/N

NJ070NA-23A_Final_Spec_V02

Screen Diagonal

7/16:9

Cover Outline Dimension

179.07*111.6mm

Touch Panel View Area

154.08*85.92mm

Touch Panel Active Area

155.08*86.92mm

Touch Panel Thickness

2.75mm

Display Outline Dimension

164.9*100mm

Display Active Area

154.21*85.92mm

Display Thickness

4.8mm

Total Thickness

8.55mm

Cover surface hardness

≥6H

Ink adhesion

≥4B

Impact resistance

≥IK07

Support Touch Points

10 points Typ.

Lamination to display

Air bonding(gap 1mm)

Controller Interface

USB Typ.

Controller Supply Voltage

USB 5V Typ.

Additional information

Product Number

EG-7-A-1609V1-KTCTP-IL

Touch Panel P/N

EG-7-A-1609V1

Display P/N

NJ070NA-23A_Final_Spec_V02

Screen Diagonal

7/16:9

Cover Outline Dimension

179.07*111.6mm

Touch Panel View Area

154.08*85.92mm

Touch Panel Active Area

155.08*86.92mm

Touch Panel Thickness

2.75mm

Display Outline Dimension

164.9*100mm

Display Active Area

154.21*85.92mm

Display Thickness

4.8mm

Total Thickness

8.55mm

Cover surface hardness

≥6H

Ink adhesion

≥4B

Impact resistance

≥IK07

Support Touch Points

10 points Typ.

Lamination to display

Air bonding(gap 1mm)

Controller Interface

USB Typ.

Controller Supply Voltage

USB 5V Typ.

Dongguan Ever Glory Photoelectric Co., Ltd., founded in 2011, is a high-tech enterprise with independent intellectual property rights. We operate 20,000㎡ production facilities located in Shenzhen and Dongguan. We specialize in providing high-quality 5″ to 75″ G+G and G+F capacitive touch panels, display solutions, and touch monitors and panel PCs. All production is completed in-house, with a dedicated cover glass production line, a Class-100 dust-free lamination workshop, and a monitor assembly line.

As a rapidly growing and innovative company, we were among the first in mainland China to initiate research and production of large-size PCAP technology, and we hold patents for lamination technology, equipment, and adhesives.

We are committed to being your one-stop touch solution partner. With over ten years of experience, we have developed extensive expertise across various applications, including industrial, outdoor, medical, banking, education, automotive, home automation,and entertainment sectors.

packaging:

Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2.Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
