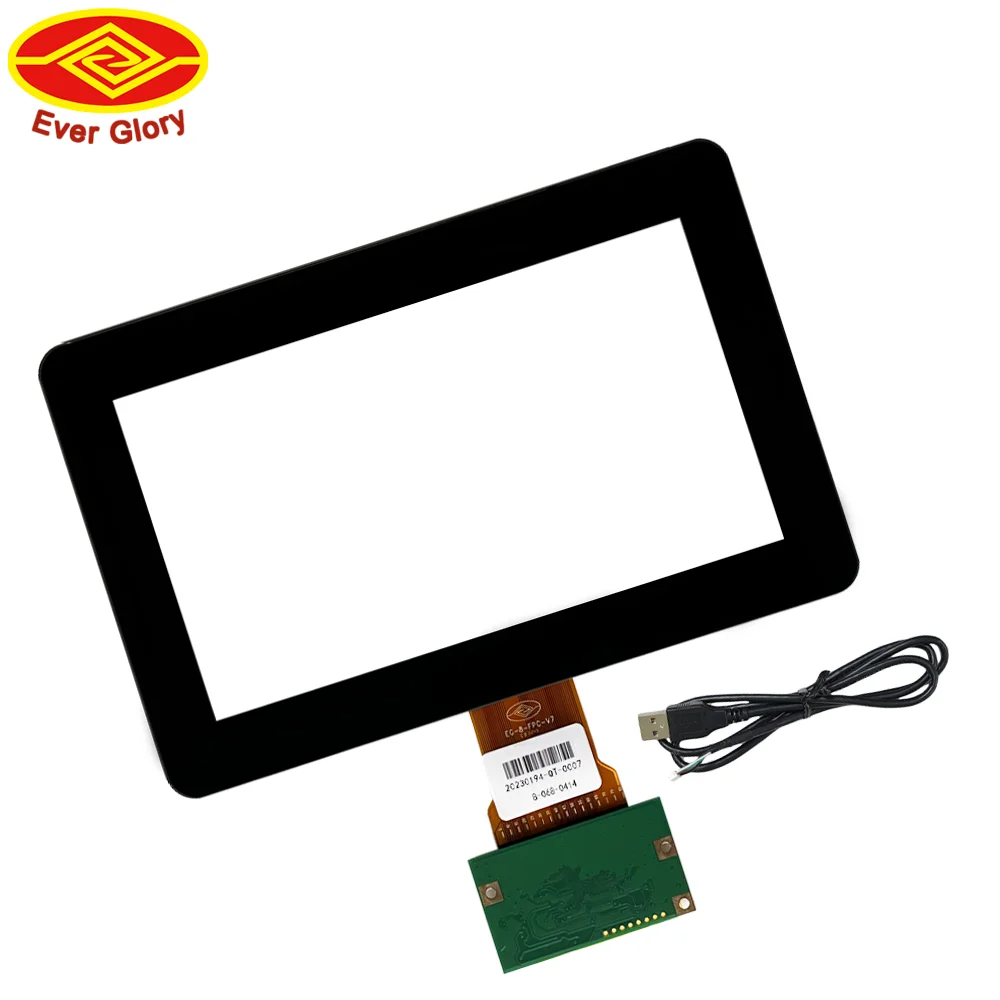

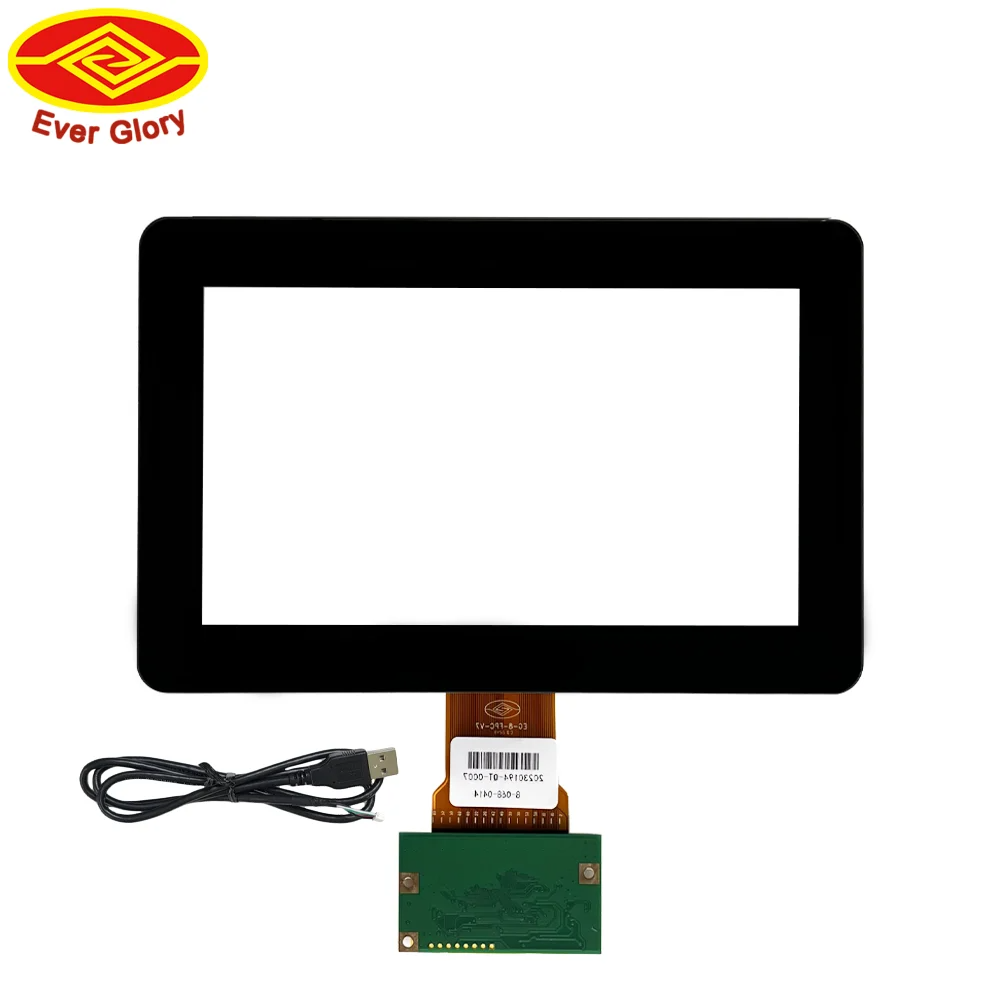

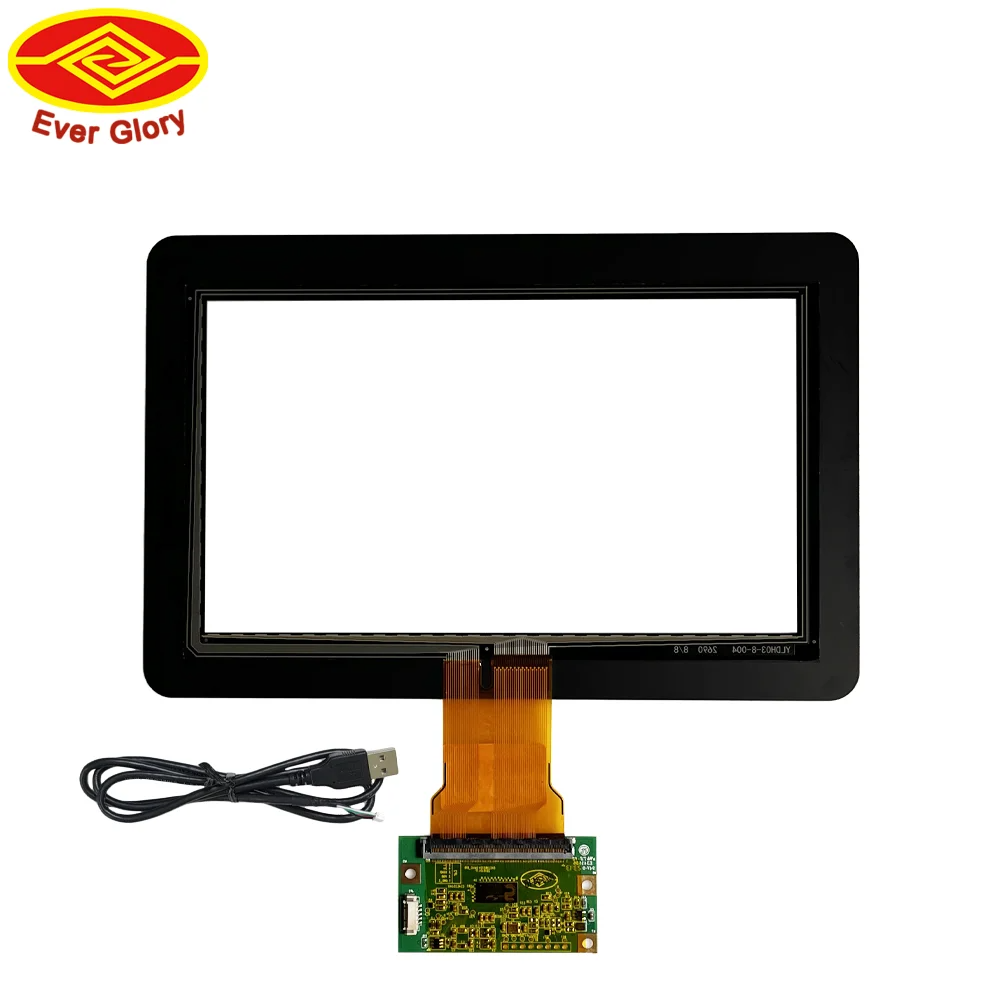

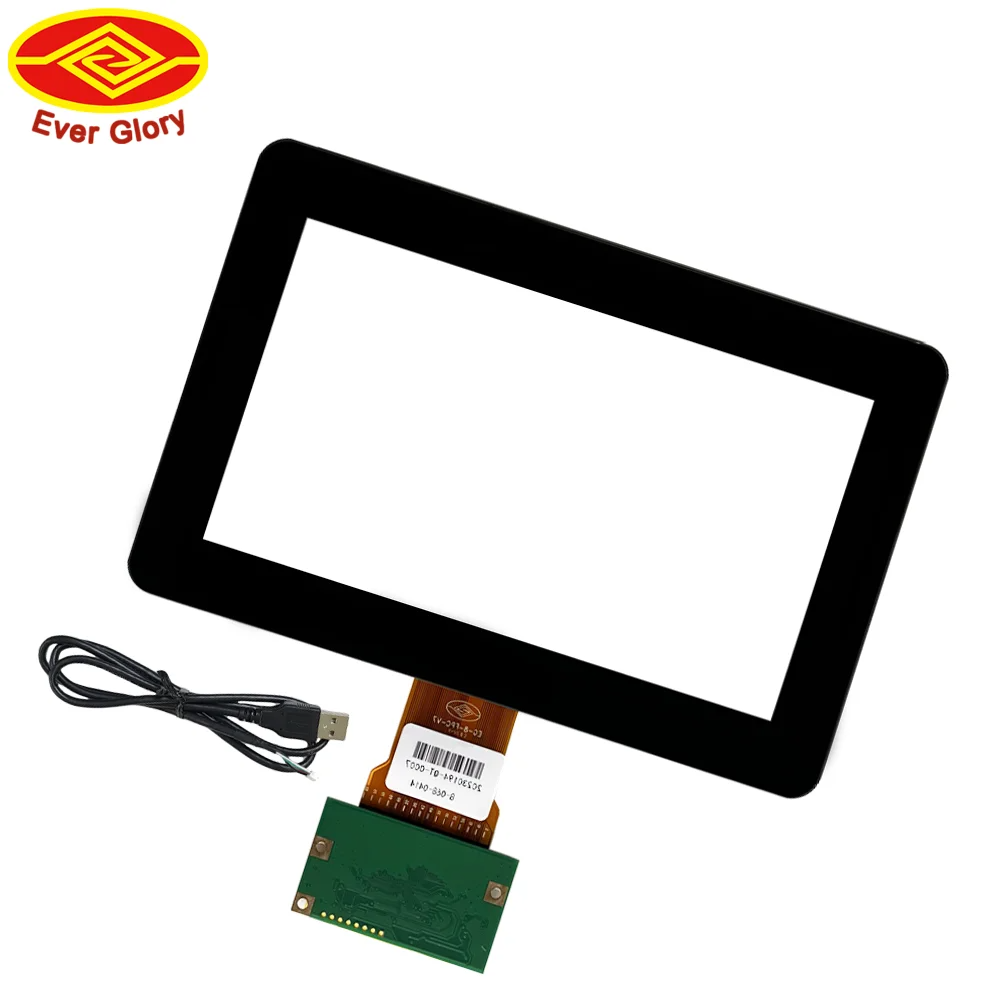

PCAP Outdoor Touch Panel 17-65 Inch
| Product model | EG-SY-27-A-1609V1 |
|---|---|
| Type | Projective Capacitive |
| Connector | COB |
| Screen Diagonal | 27 [16:9] |

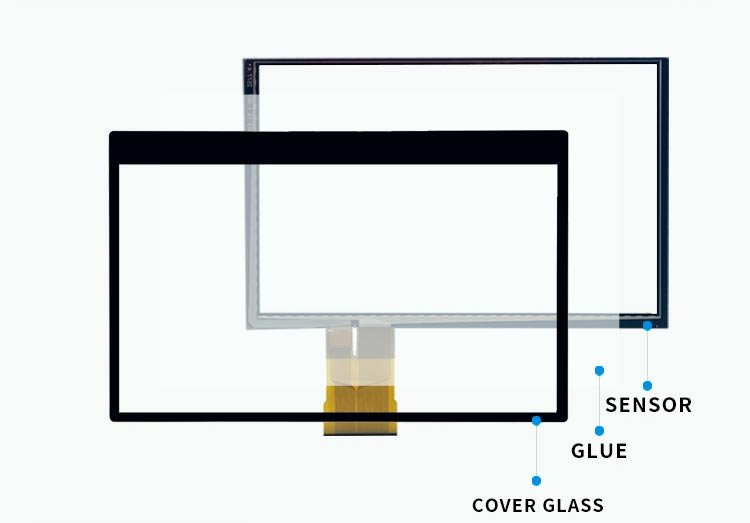

| Structures | G+G |
| Outline Dimension | 392.31(W)*649.88(L)±0.2mm |
| View Area | 338.30(W)*599.88(L)±0.2mm |
| Active Area | 339.31(W)*600.88(L)±0.2mm |
| Sensor Thickness | 1.1±0.05mm |
| Cover Thickness | 2.0±0.2mm |
| Total Thickness | 3.3±0.2mm |
| Tail Length | 125mm |
| Transmittance | >85% |
| Input Mode | Finger |
| Support Points | 1~10 |
| Interface | USB |
| Supply Voltage | USB 5 V |
| Report Rate | ＞100 Hz |
| Response Time | ＜50 ms |
| Life Time | ＞50,000,000 times |
| Product model | EG-SY-27-A-1609V1 |
|---|---|
| Type | Projective Capacitive |
| Connector | COB |
| Screen Diagonal | 27 [16:9] |
| Structures | G+G |
| Outline Dimension | 392.31(W)*649.88(L)±0.2mm |
| View Area | 338.30(W)*599.88(L)±0.2mm |
| Active Area | 339.31(W)*600.88(L)±0.2mm |
| Sensor Thickness | 1.1±0.05mm |
| Cover Thickness | 2.0±0.2mm |
| Total Thickness | 3.3±0.2mm |
| Tail Length | 125mm |
| Transmittance | >85% |
| Input Mode | Finger |
| Support Points | 1~10 |
| Interface | USB |
| Supply Voltage | USB 5 V |
| Report Rate | ＞100 Hz |
| Response Time | ＜50 ms |
| Life Time | ＞50,000,000 times |
PCAP Outdoor Touch Panel 17-65 Inch Engineering Information
PCAP Outdoor Touch Panel 17-65 Inch is a 65 inch projected capacitive touch panel for OEM equipment integration. It is best reviewed with LCD data, glass drawing, USB HID, I2C or project-specific controller requirements, bonding method and the final outdoor, high-use or sealed-front environments.
- Product Role
- Projected capacitive touch panel for OEM integration
- Size / Format
- 65 inch
- Best Fit
- sealed outdoor terminals, industrial kiosks and exposed HMI installations

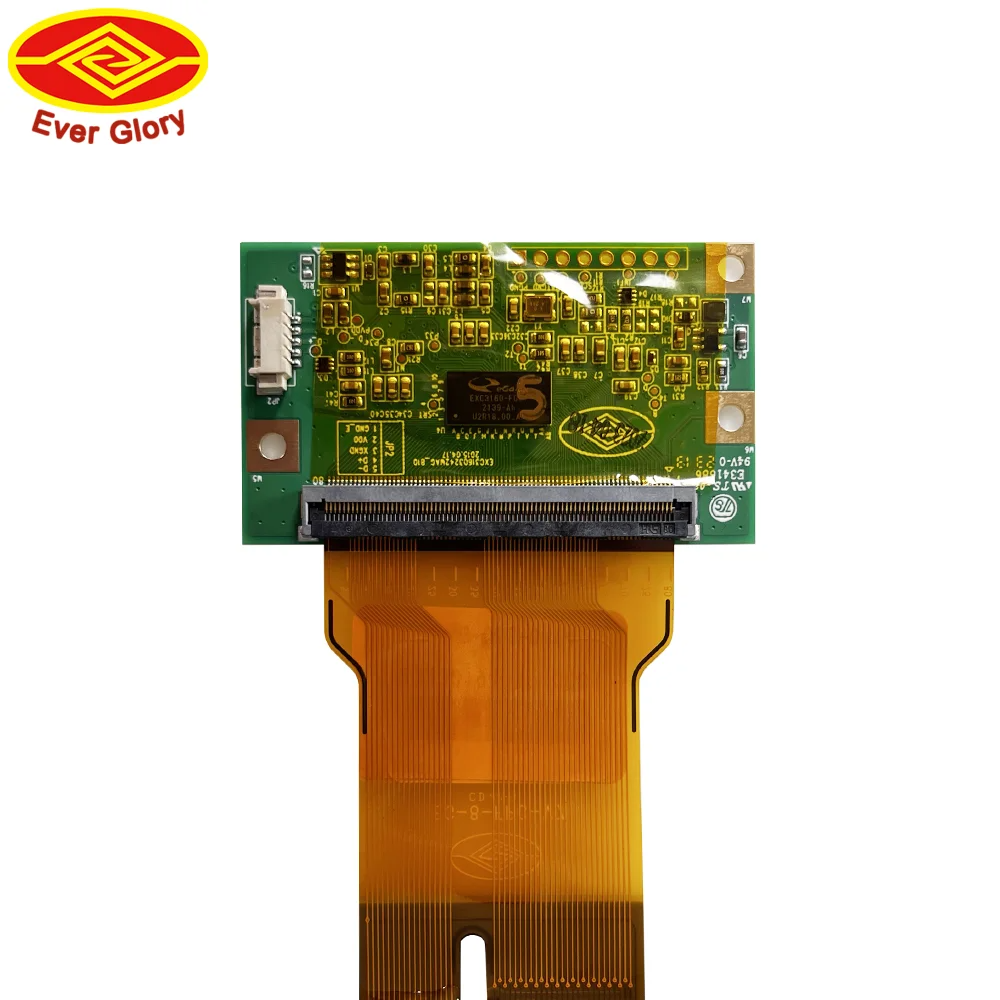

- Controller
- USB HID, I2C or project-specific controller
- Cover Glass
- sealed front cover glass with waterproof edge design
- Customization
- Glass outline, logo printing, black border, AG/AR/AF coating, FPC direction, connector and bonding method
Information Needed for Review
- LCD model, active area, visible area and mechanical drawing for the 65 inch structure.
- USB HID, I2C or project-specific controller requirement, communication interface and operating system or mainboard information.
- sealed front cover glass with waterproof edge design, bonding choice, edge sealing requirement and housing tolerance.
- Operating temperature, humidity, glove or wet-touch expectation, EMI grounding and annual demand.
Typical Applications
sealed outdoor terminals, industrial kiosks and exposed HMI installations
Industrial controls, kiosks, medical devices, POS terminals, embedded display modules and custom assemblies.
Projects that require sealed-front reliability, cleaning resistance or outdoor-facing use.
Common Engineering Questions
Is this a standard off-the-shelf touch screen?
This 65 inch page is mainly for engineered projects. Ever Glory can review standard dimensions, but final drawings, controller choice and cover glass details should be confirmed before production.
What makes this page different from other PCAP products?
The focus here is sealed outdoor terminals, industrial kiosks and exposed HMI installations. The key review points are USB HID, I2C or project-specific controller, sealed front cover glass with waterproof edge design, bonding and the final installation environment.
What should be sent for a fast quotation?
Send the LCD model, drawing, interface request, FPC direction, glass thickness, surface treatment, target quantity and any waterproof or sealed-front requirement.
For an accurate quotation, send drawings and application details instead of only screen size.
