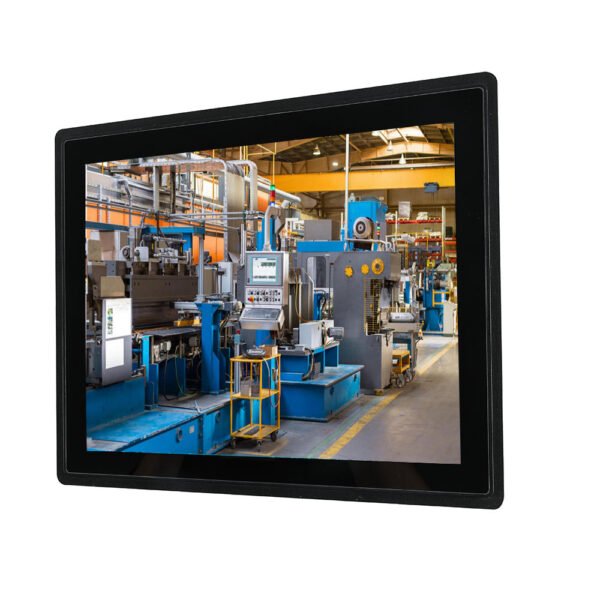

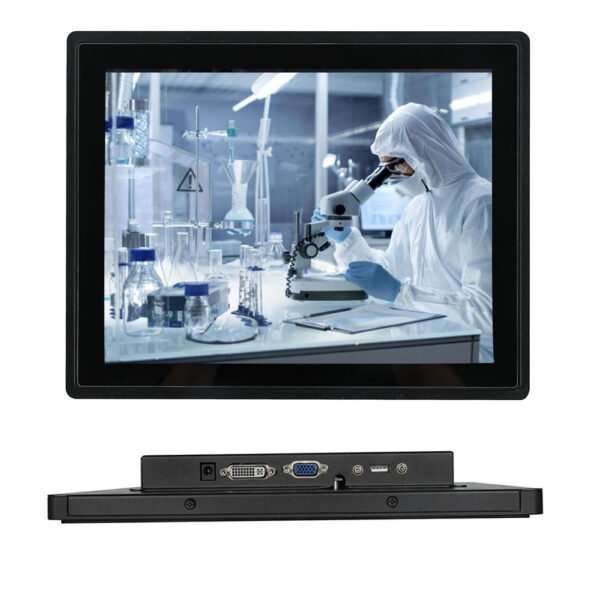

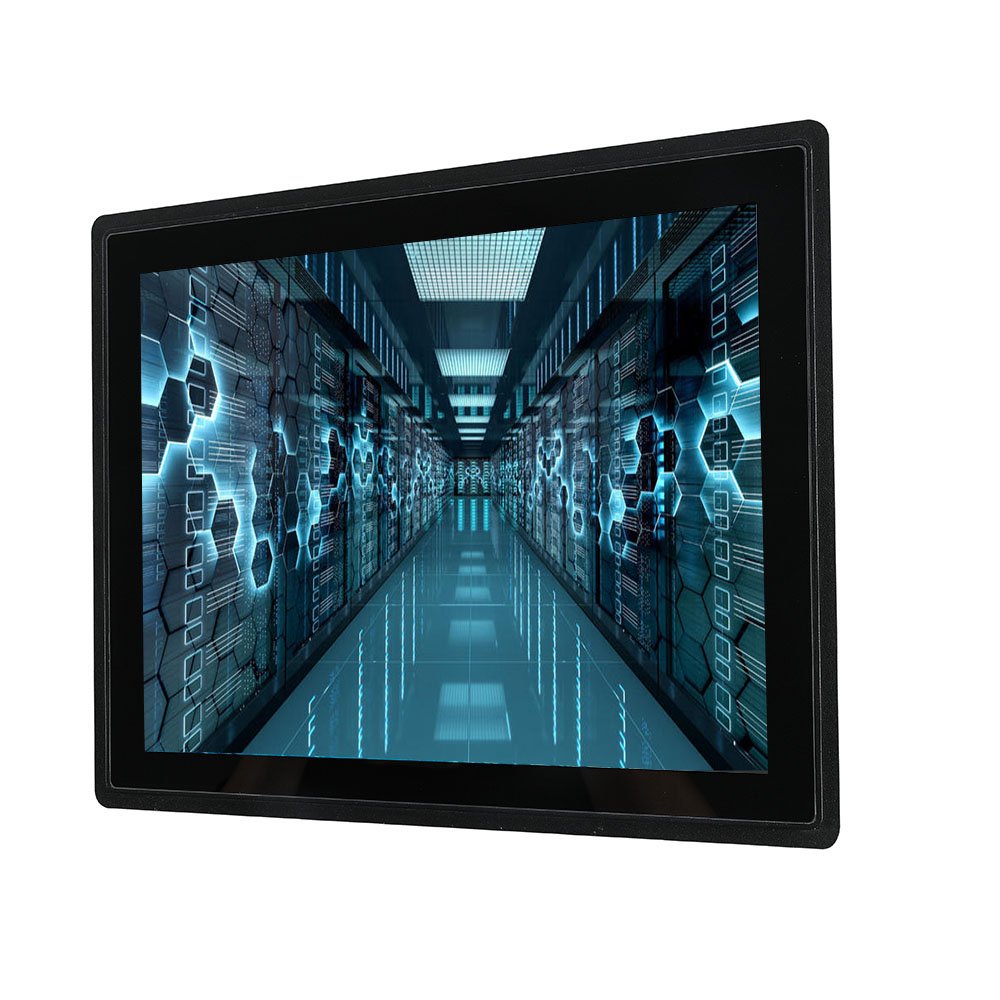

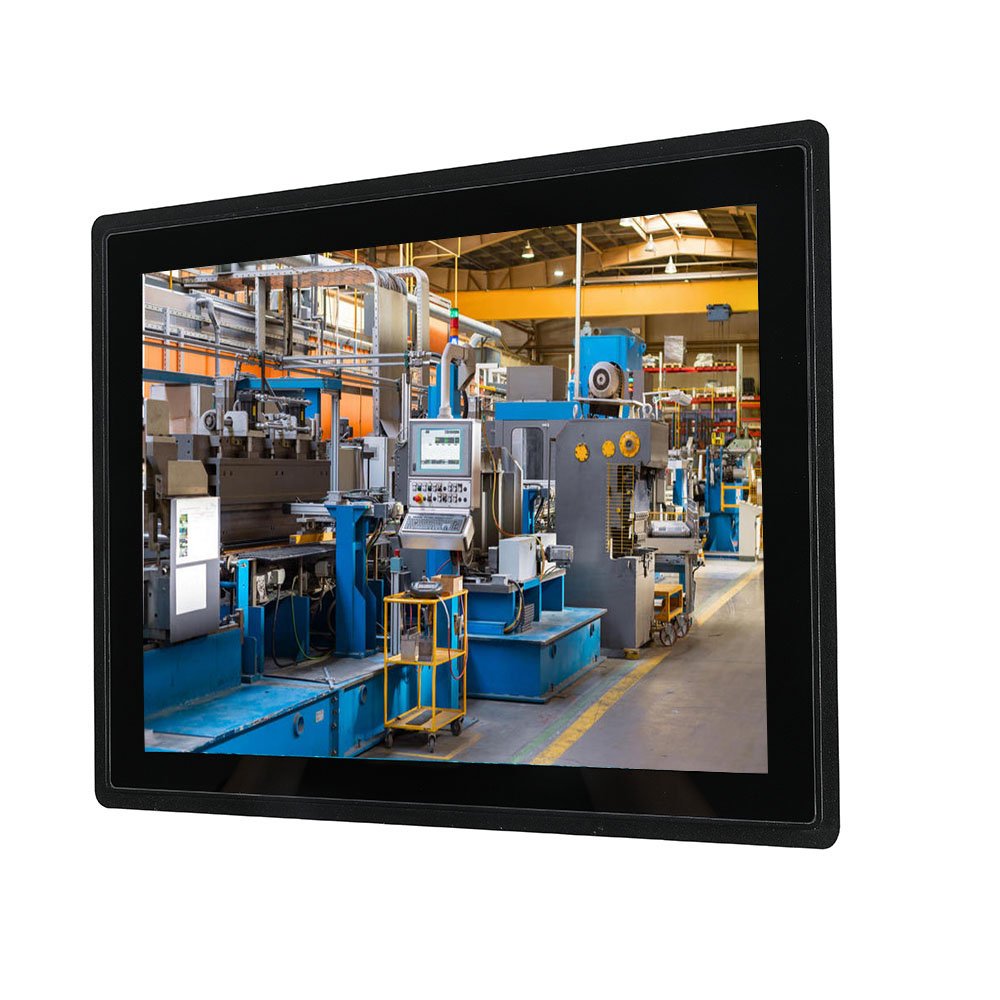

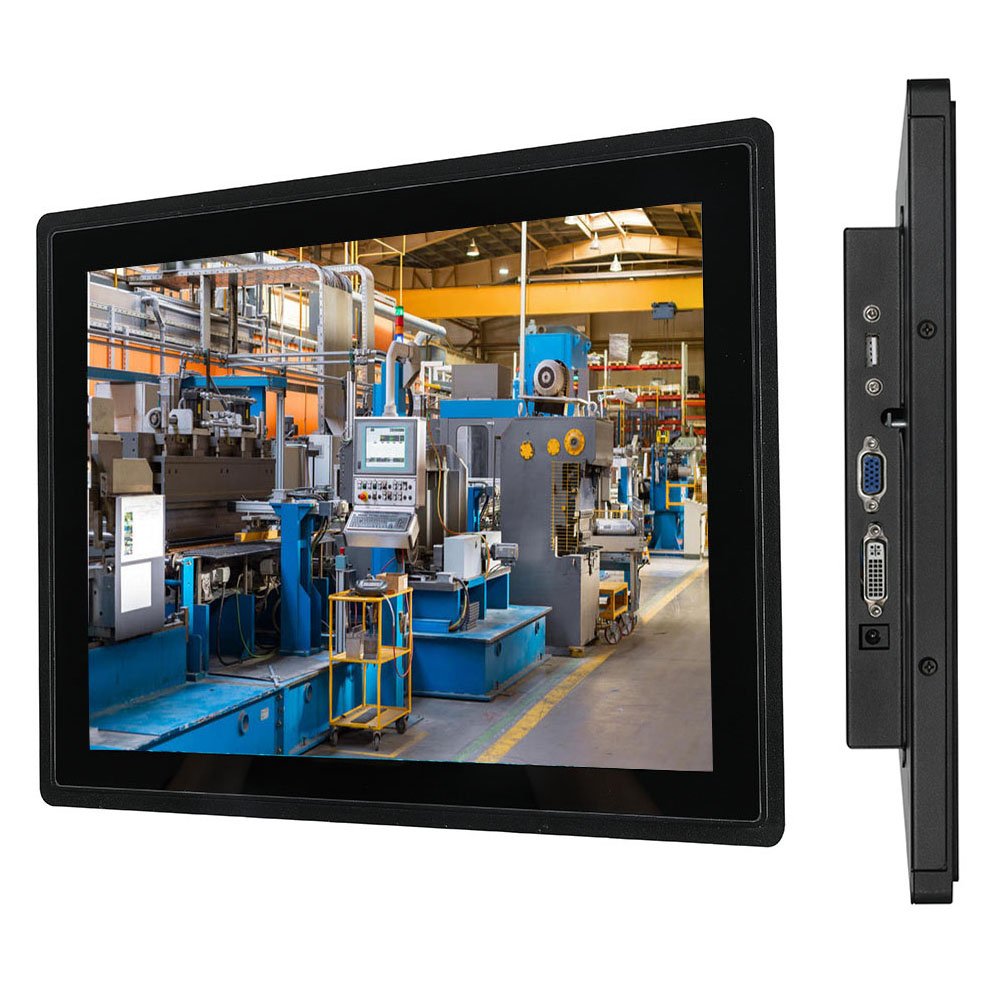

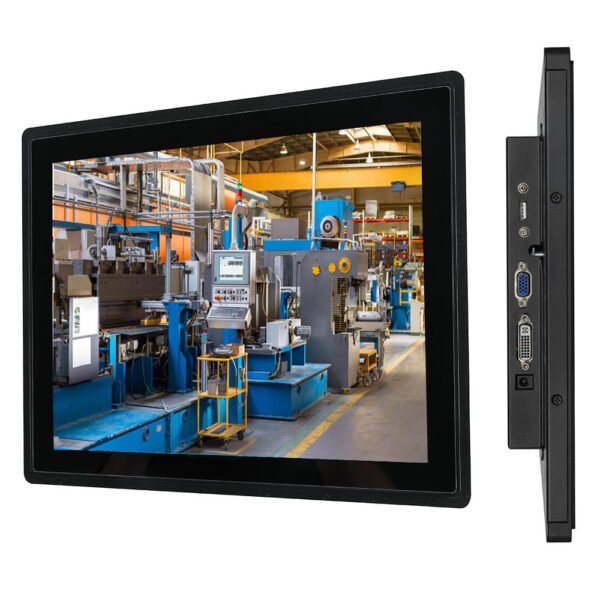

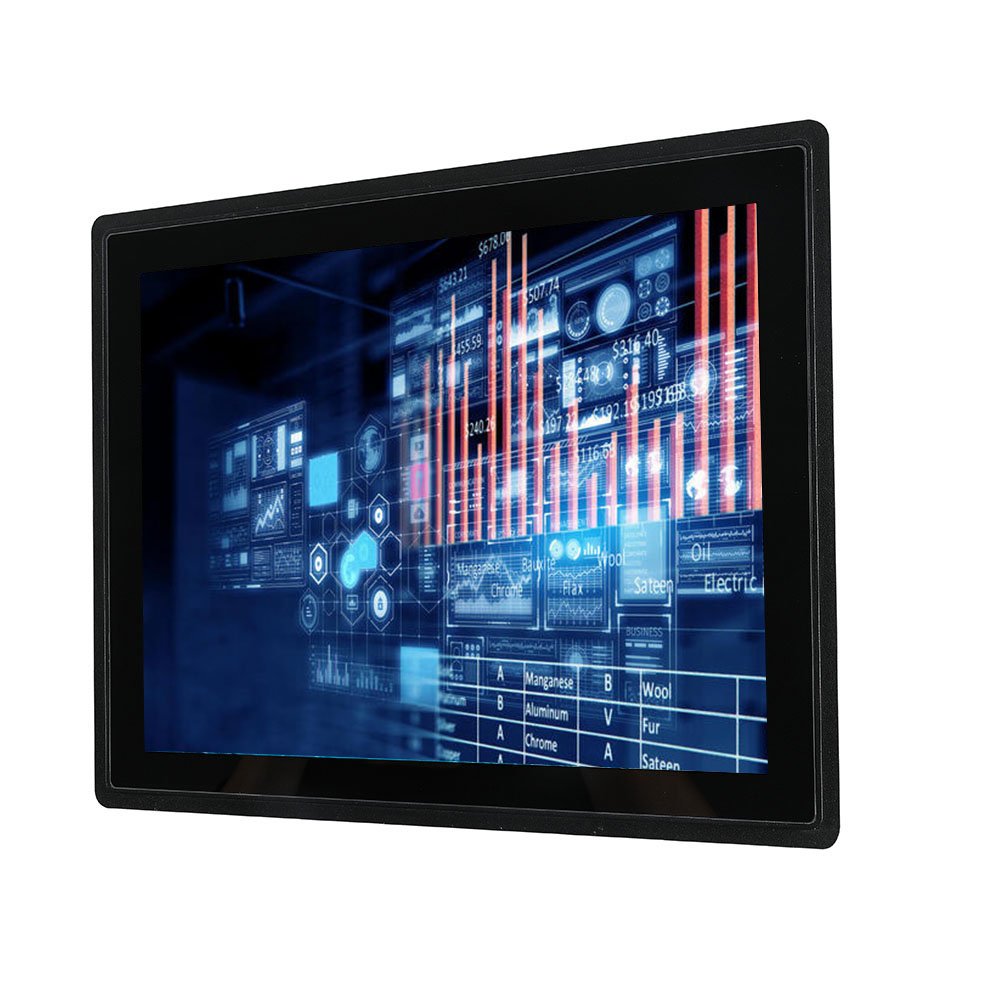

17″ Waterproof Touch Monitor | Wall-Mount Outdoor Interactive POS Display
| Name | 17.0 Inch Touch Monitor |
|---|---|
| Model | YL-170MT1C-V1 |
| Size | 17.0 inch |
| Resolution Ratio | 1280×1024 |
| Color | 16.7M |
| Brightness(Standard value) | 250cd/㎡ |
| Contrast Ratio | 1000:1 |
| Response Time | 30ms |
| Display Area | 337.92（H）×270.336（V）mm |
| Pixel Pitch(mm) | 0.264×0.264mm |
| Type of touch screen | Capacitive touch screen |
| DPI | 500 dpi |
| Input Mode | Handwrtten or capacitive pen |
| Surface Hardness | 7H |
| Calibration | Support |
| Video Input | PC-RGB:Format Up to 1920*1200@75HZ, PC-RGB:Color 6bit,8bit,10bit,12bit |

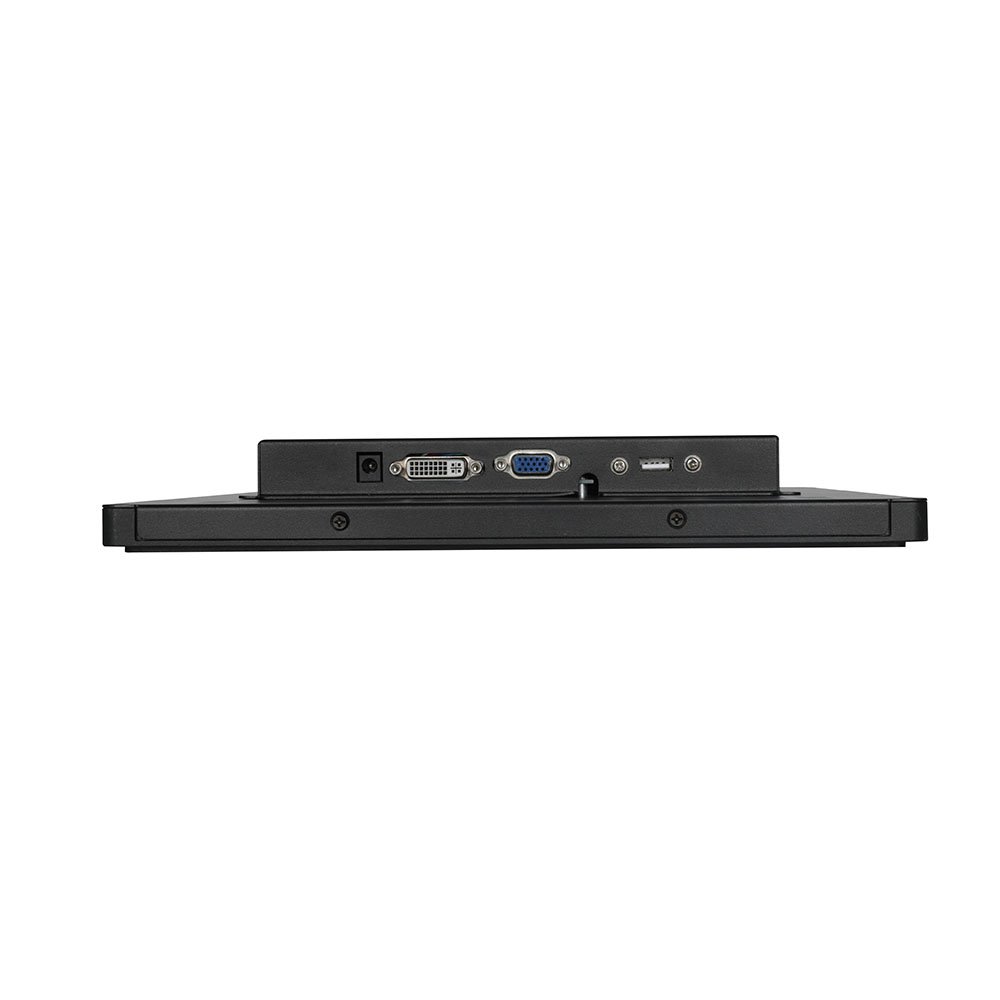

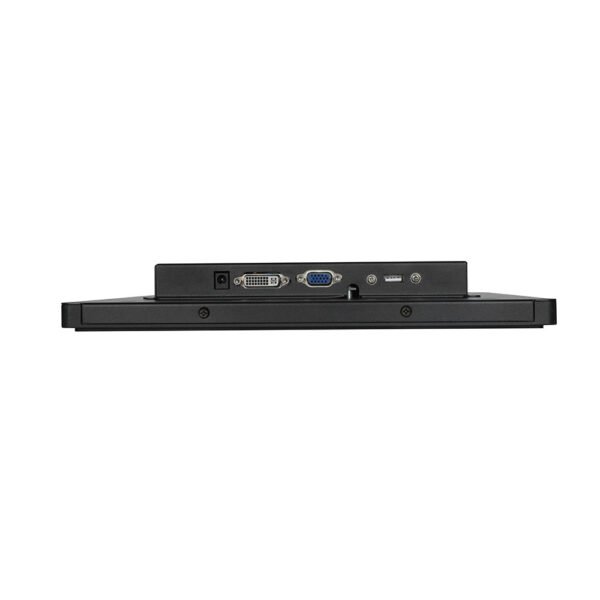

| Interface | VGA/HDMI/DC |
| Power Input | AC 90-240V |
| Power Output | DC12V /24V |
| Name | 17.0 Inch Touch Monitor |
|---|---|
| Model | YL-170MT1C-V1 |
| Size | 17.0 inch |
| Resolution Ratio | 1280×1024 |
| Color | 16.7M |
| Brightness(Standard value) | 250cd/㎡ |
| Contrast Ratio | 1000:1 |
| Response Time | 30ms |
| Display Area | 337.92（H）×270.336（V）mm |
| Pixel Pitch(mm) | 0.264×0.264mm |
| Type of touch screen | Capacitive touch screen |
| DPI | 500 dpi |
| Input Mode | Handwrtten or capacitive pen |
| Surface Hardness | 7H |
| Calibration | Support |
| Video Input | PC-RGB:Format Up to 1920*1200@75HZ, PC-RGB:Color 6bit,8bit,10bit,12bit |
| Interface | VGA/HDMI/DC |
| Power Input | AC 90-240V |
| Power Output | DC12V /24V |
17″ Waterproof LCD Wall-Mount Interactive POS Outdoor Touch Monitor
This 17-inch waterproof LCD touch monitor is designed for wall-mount POS and outdoor interactive terminals.
It is a monitor solution (not a built-in computer), so it connects to your host system through standard video and USB touch.
Therefore, it is ideal for upgrades where you keep the existing PC, but need a rugged, stable touchscreen for wet or public environments.
Wall-mount friendly
Water spray resistance
Stable touch response
Easy integration
OEM options
For sealing definitions and practical design methods, see:
waterproof touch screens (IP65).
- Readable UI: enough space for large buttons and fast workflows.
- Compact wall mount: fits most POS enclosures and retrofit frames.
- Lower risk: easier to control glare, sealing, and cable routing.
- Service-friendly: faster replacement than oversized custom builds.
Key Specifications (edit with your real parameters)
| Item | Specification |
|---|---|
| Product type | Touch monitor (external host required) |
| Screen size | 17-inch LCD |
| Touch | PCAP multi-touch; wet touch / glove tuning optional |
| Waterproof level | Front sealing option based on design; confirm target IP and cleaning method |
| Installation | Wall mount / bracket mount options |
| Interface | Video + USB touch (confirm per configuration) |
| Brightness | Standard / high brightness option for outdoor readability |
| Surface treatment | AG/AR options to reduce glare; bonding option if required |
Where this monitor is commonly deployed
Outdoor POS and payment stations
Built for public use where splashes and cleaning are expected.
Self-service kiosks
Stable touch helps avoid mis-taps and reduces queue time.
Parking and ticketing terminals
Wall mount and compact integration support retrofit projects.
Retail / QSR ordering
Large buttons and responsive touch support fast workflows.
Engineering notes (prevents field issues)
- Sealing is a system result: bezel + gasket + connector protection must work together.
- Cable entry matters: many failures start at the connector area, not the glass surface.
- Wet touch needs validation: test with water film and the real UI button size.
- Outdoor readability: use AG/AR and consider bonding when glare is a problem.
For outdoor configuration planning, see
outdoor touch screen solutions.
For glare and brightness strategy, see
sunlight readable touch displays.
Recommended QA before deployment
1) Touch accuracy and edge response
Run line tracking and edge sweeps before and after final mounting.
2) Wet touch stability
Validate under water film and cleaning spray scenarios.
3) Outdoor readability check
Test in real sun angles to confirm glare control and brightness needs.
4) Soak test
Run for several hours and record any disconnect or abnormal behavior.
Use the checklist here:
touchscreen test checklist.
For deeper workflow and EMI checks, see:
touchscreen tester.
FAQ
Is this a monitor or a full Panel PC?
This product is a touch monitor. Therefore, it connects to your existing PC or controller through video and USB touch.
Is it fully waterproof?
Waterproof performance depends on the complete design. In many deployments, the front is sealed and the connector area is protected by cable glands. Share your target IP level and cleaning method for confirmation.
Can it work with wet hands or water on the surface?
Yes. PCAP touch can be tuned for wet touch. In addition, it should be validated under real water film and the actual UI button layout.
What is the best mounting method for outdoor POS?
Wall mount or bracket mount are common for compact terminals. However, the enclosure design must also protect cable entry and connectors.
What information do you need for a fast proposal?
Please share your enclosure drawing, target IP level, brightness requirement, interface needs, and operating environment details.
|
Waterproof reference:
Waterproof Touch Screens
|
Outdoor reference:
Outdoor Touch Screen Solutions
Dongguan Ever Glory Photoelectric Co., Ltd., founded in 2011, is a high-tech enterprise with independent intellectual property rights. We operate 20,000㎡ production facilities located in Shenzhen and Dongguan. We specialize in providing high-quality 5″ to 75″ G+G and G+F capacitive touch panels, display solutions, and touch monitors and panel PCs. All production is completed in-house, with a dedicated cover glass production line, a Class-100 dust-free lamination workshop, and a monitor assembly line.
As a rapidly growing and innovative company, we were among the first in mainland China to initiate research and production of large-size PCAP technology, and we hold patents for lamination technology, equipment, and adhesives.
We are committed to being your one-stop touch solution partner. With over ten years of experience, we have developed extensive expertise across various applications, including industrial, outdoor, medical, banking, education, automotive, home automation,and entertainment sectors.
Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2.Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
17 Waterproof Touch Monitor | Wall-Mount Outdoor Interactive POS Display Engineering Information
17 Waterproof Touch Monitor | Wall-Mount Outdoor Interactive POS Display is a custom size industrial touch screen monitor for embedded display, OEM equipment, kiosk and HMI integration. It should be reviewed with LCD model, touch interface, video input, backlight, bonding and mechanical mounting so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Screen Monitor
- Product Role
- industrial touch screen monitor
- Size / Format
- custom size
- Best Fit
- embedded display, OEM equipment, kiosk and HMI integration
- Review Focus
- LCD model, touch interface, video input, backlight, bonding and mechanical mounting
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and custom size display or housing requirement.
- LCD model, touch interface, video input, backlight, bonding and mechanical mounting.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications
OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects that need stronger enclosure design, stable touch performance and long-term field reliability.
This page is positioned under Touch Screen Monitor, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this industrial touch screen monitor ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send LCD model, touch interface, video input, backlight, bonding and mechanical mounting, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
