This 21.5 inch industrial touch monitor is built for harsh environments such as factories, kiosks and outdoor terminals.
It combines a sunlight readable LCD, PCAP touch, IP67 front protection and a durable metal housing with excellent heat dissipation.
If you need help choosing between different touch structures and display options, our
Industrial Touch Screen Buyer’s Guide
explains the key points for industrial projects.

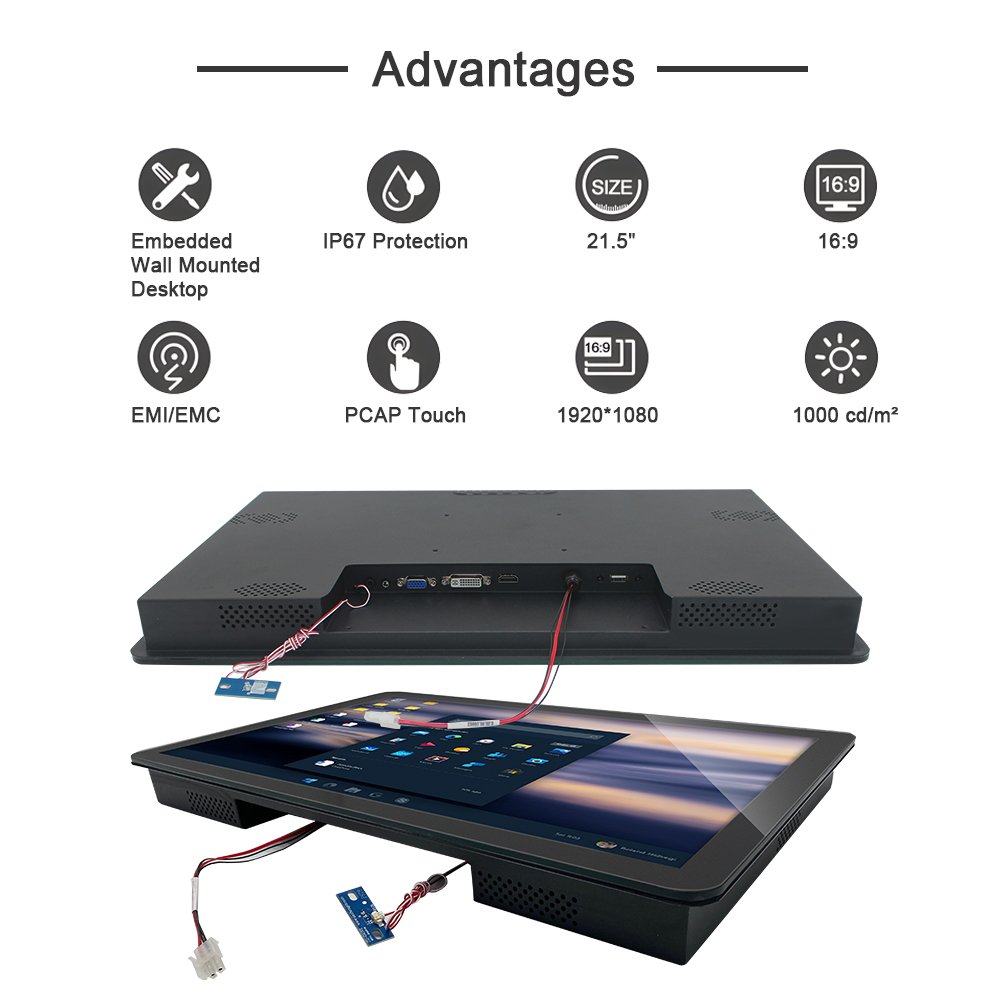

Main Features
- 21.5 inch, 16:9 full HD
The monitor offers a 21.5 inch 16:9 panel with 1920×1080 resolution.
As a result, text and graphics stay sharp for HMI, SCADA and video content. - High brightness 1000 cd/m²
The LCD uses a high brightness backlight of around 1000 cd/m².
Therefore, the screen remains readable in bright ambient light or near windows.
For more details on high brightness design, you can see our
sunlight readable display guide

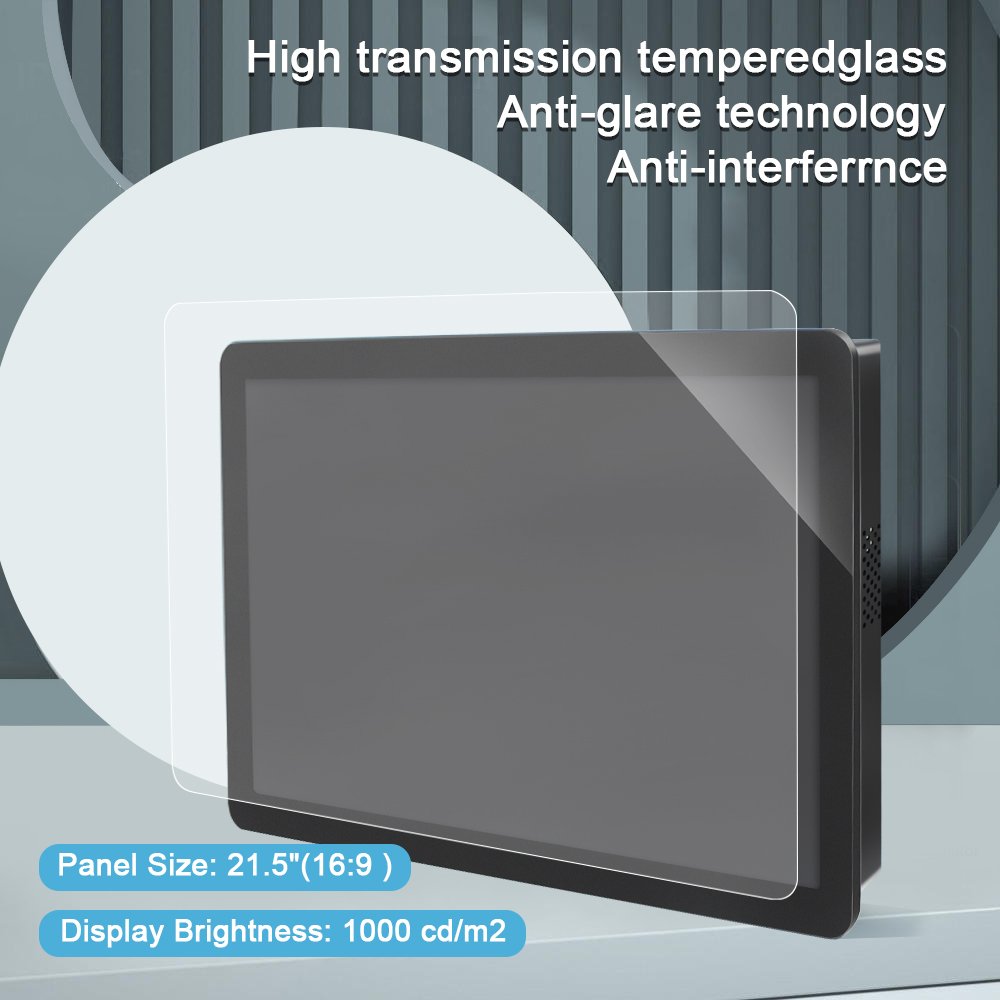

. - PCAP touch with anti-glare tempered glass
The front glass is high-transmission tempered glass with anti-glare treatment.
In addition, a projected capacitive (PCAP) sensor delivers fast, precise multi-touch control. - IP67 front protection
The flat front surface and sealed structure provide IP67-level protection on the front side.
This helps the monitor resist dust, rain and washdown spray.
The design follows similar sealing ideas as our
waterproof touch screen design guide
. - Wide operating temperature -20 °C to 70 °C
The system works reliably from -20 °C to 70 °C.
This wide temperature range fits both indoor control rooms and semi-outdoor enclosures. - Excellent heat dissipation

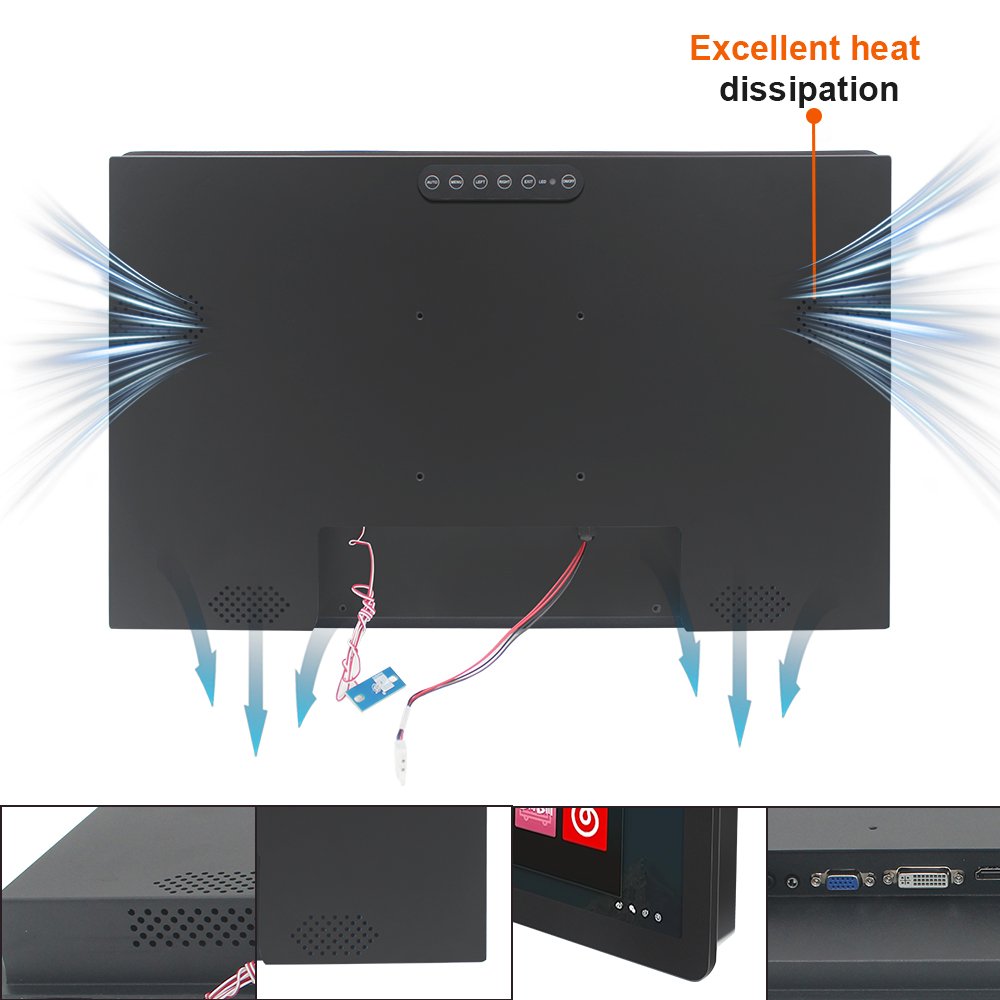

The metal housing includes optimized air vents and a thermal design that spreads heat evenly.
As a result, the monitor supports long-term 24/7 operation. - Rich I/O interfaces

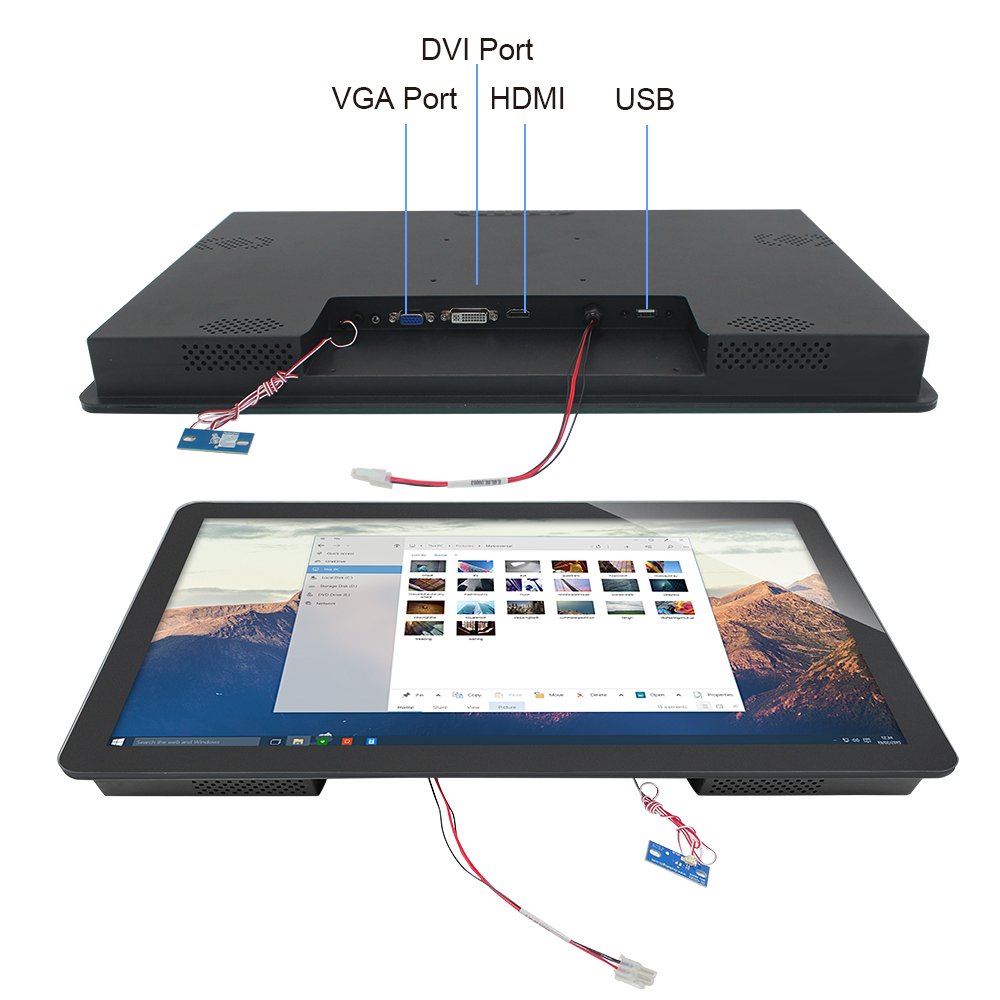

The rear panel provides VGA, DVI, HDMI and USB ports.
This makes it easy to connect to industrial PCs, media players or embedded computers.
Mechanical Design and Mounting
The robust metal enclosure is suitable for embedded, wall-mounted or desktop use.
Standard VESA mounting holes on the back support easy integration into panels, kiosks and cabinets.
In addition, the front flat glass makes cleaning simple and reduces dirt buildup around the bezel.
This is especially important for food, medical and public terminals.
EMI/EMC and Industrial Reliability
The monitor is designed with industrial EMI/EMC in mind.
Shielded cabling, proper grounding and a stable power design help reduce noise and ghost touches.
These techniques are consistent with the recommendations in our article on
waterproof, dustproof and impact-resistant touch screens
.
Typical Applications
- Factory automation HMI and SCADA terminals
- Outdoor and semi-outdoor kiosks and ticket machines
- Industrial control rooms and monitoring consoles
- Transportation, warehouse and logistics terminals
- Medical carts and clean-room equipment with washable front glass
For more application ideas and reference designs, please visit our
industrial touch screen solutions
and the
touch screen solutions by application hub
21.5 Inch Industrial Touch Monitor – IP67 PCAP, 1000 nits, Wide Temperature Engineering Information
21.5 Inch Industrial Touch Monitor – IP67 PCAP, 1000 nits, Wide Temperature is a 21.5 inch industrial touch screen monitor for industrial HMI, kiosk, POS, medical, control and commercial equipment projects. It should be reviewed with display input, touch interface, mounting, enclosure, power and operating environment so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Screen Monitor
- Product Role
- industrial touch screen monitor
- Size / Format
- 21.5 inch
- Best Fit
- industrial HMI, kiosk, POS, medical, control and commercial equipment projects
- Review Focus
- display input, touch interface, mounting, enclosure, power and operating environment
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and 21.5 inch display or housing requirement.
- display input, touch interface, mounting, enclosure, power and operating environment.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications
OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects that need stronger enclosure design, stable touch performance and long-term field reliability.
This page is positioned under Touch Screen Monitor, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this industrial touch screen monitor ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send display input, touch interface, mounting, enclosure, power and operating environment, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
