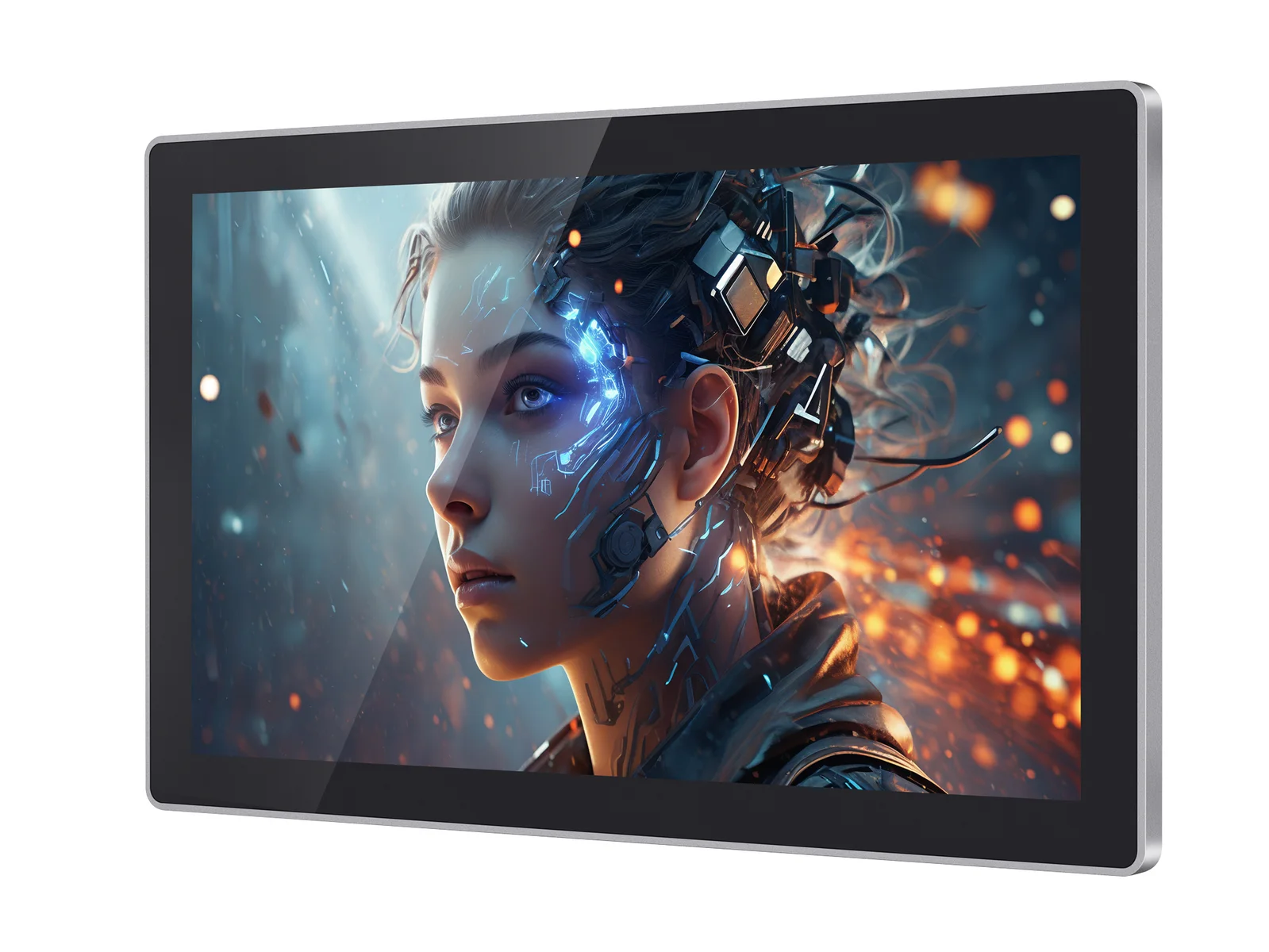

A 23.8 inch industrial touch screen monitor for larger HMI interfaces, inspection systems, kiosks and control terminals. The standard YW01 model provides Full HD resolution, PCAP touch, HDMI/VGA input and VESA mounting support.
This standard YW01 product page is intended for larger HMI interfaces, inspection systems, kiosks and control terminals. It is positioned separately from outdoor high-brightness, IP-rated waterproof and panel PC product pages.
| Model | YL-GZYW01Q238TC-V1 |
|---|---|
| Display size | 23.8 inch |
| Resolution | 1920 x 1080 |
| Brightness | 250 cd/m2 |
| Contrast ratio | 1000:1 |
| Viewing angle | 89/89/89/89 |
| Touch type | Capacitive touch screen |
| Touch interface | USB, drive-free |
| Touch response | <=5 ms |
| Surface hardness | Mohs 7 |

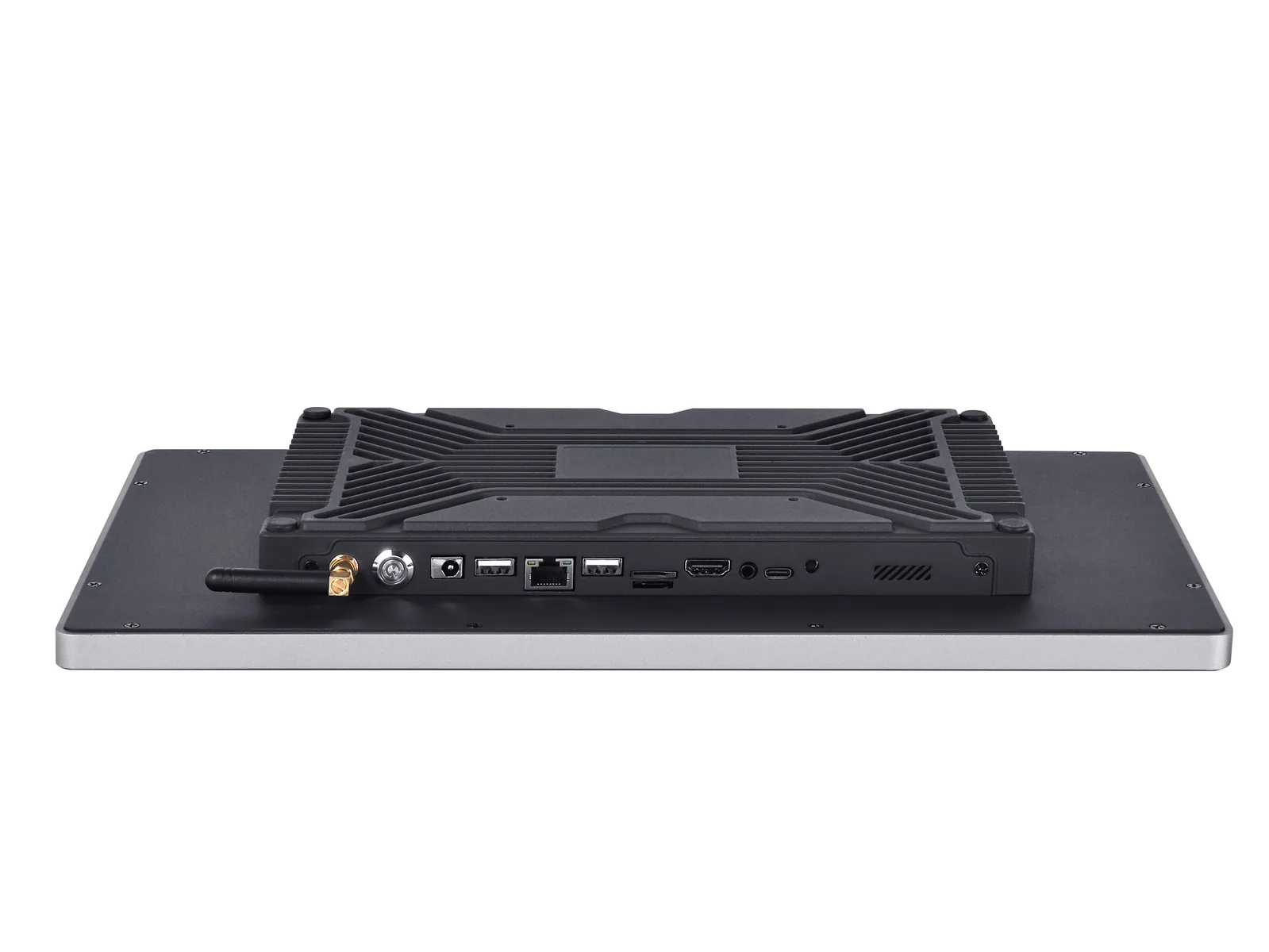

| Signal input | HDMI + VGA |
| Power connector | DC 5521 |
| Max power | 25 W |
| Operating temperature | 0 C to 50 C |
| Storage temperature | -20 C to 60 C |
| Dimension | 573.44 x 342.86 x 41.6 mm |

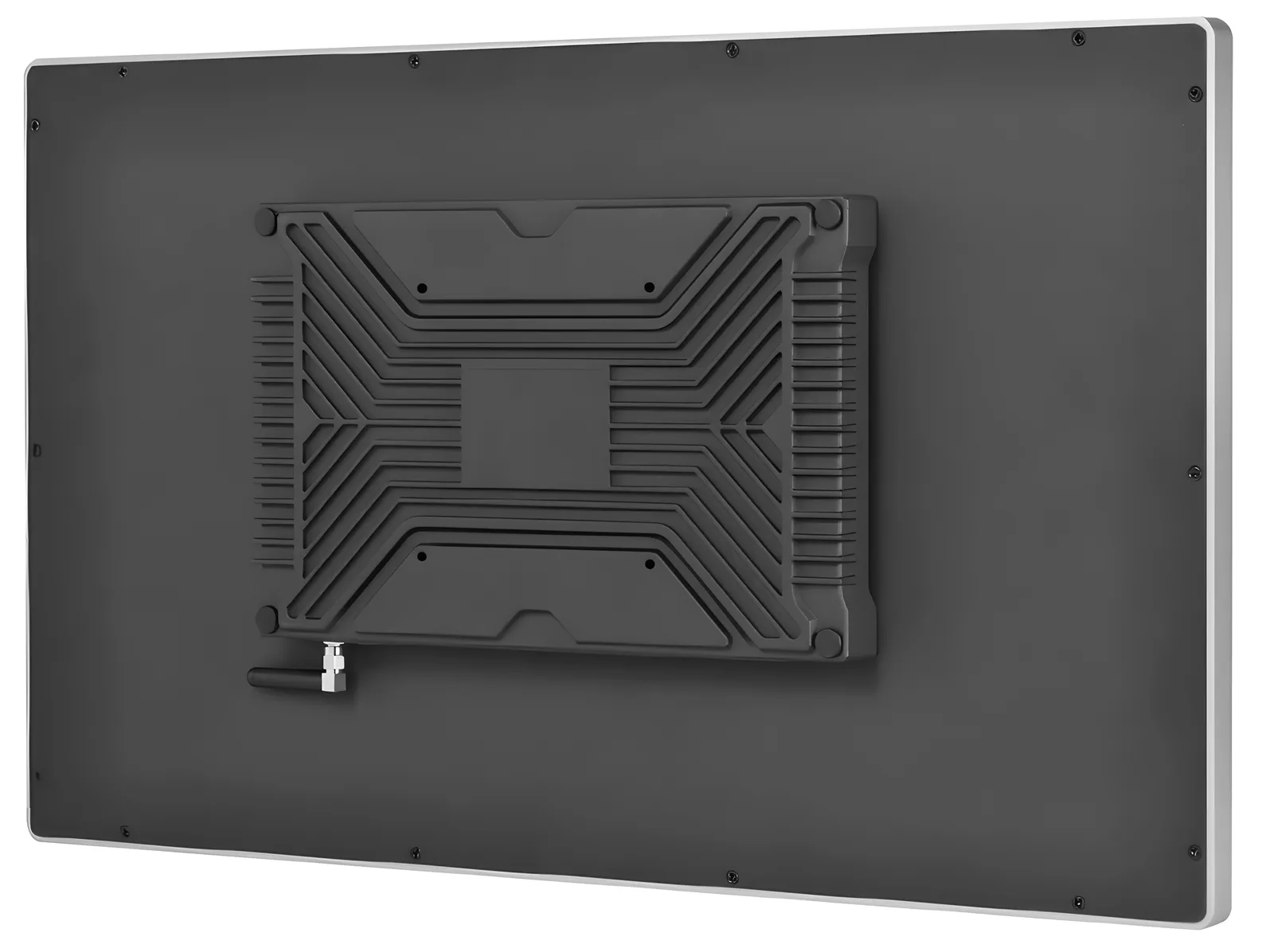

| Mounting | VESA 100 x 100 mm |
Typical use cases include industrial HMI, kiosk systems, control cabinets, automation equipment, inspection and testing equipment, commercial terminals and OEM machine interfaces.
EverGlory can support project-based customization for cover glass, surface treatment, touch tuning, cable length, brightness, interface, mounting structure and product appearance. Share your installation space, controller interface, brightness requirement, operating environment and estimated quantity for evaluation.
No. This page is a complete standard touch monitor page with LCD, PCAP touch, housing, HDMI/VGA input and mounting details.
It is suitable for larger HMI screens, inspection systems, kiosk UI and equipment dashboards that need more visual area than 21.5 inch while staying below 27 inch.
Send your size, mounting drawing, interface, brightness, touch requirements, operating environment and order quantity to EverGlory for a custom industrial touch monitor quote.
