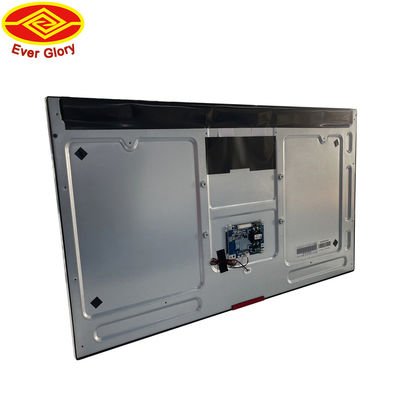

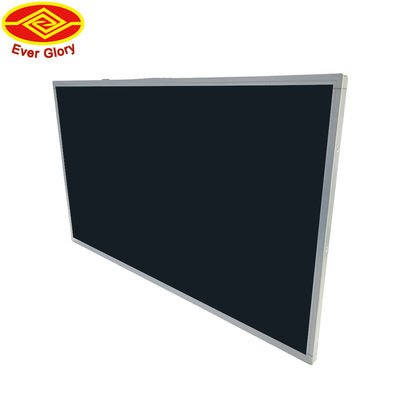

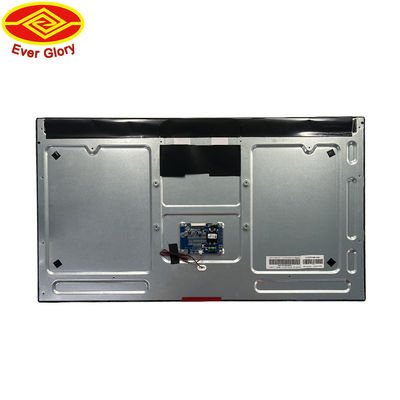

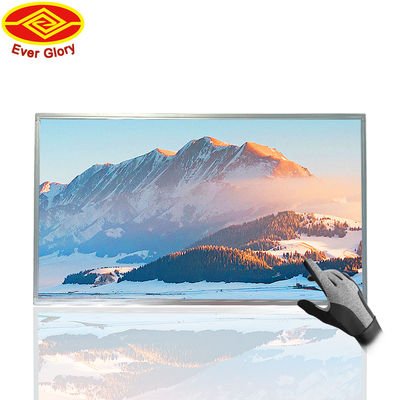

49” PCAP Projected Capacitive Touch Screen For Outdoor Waterproof
| Touch Panel P/N | EG-49-A-1609V1 |
|---|---|
| Display P/N | HBY-PJ490P |
| Contrast Ratio | 1300:1 |
| Response Time | <6ms |
| Display Color | 8Bit,16.7M |
| Input Voltage | AC100V~240V 50/60Hz |
| Input | 1*DVI,1*HD&MI,1* DP (Display port), 1*VGA (SVGA / XGA /WXGA),2*RS232(RJ45) |
| Impact resistance | ≥IK07 |
| Luminance, white | 500cd/m2&700cd/m2 |
| Operation Conditions | 10%-90%RH |
| Pixels H×V | 1960*1080 |
| Pixel Pitch | 0.55926*0.55926 mm |
| Touch Panel P/N | EG-49-A-1609V1 |
|---|---|
| Display P/N | HBY-PJ490P |
| Contrast Ratio | 1300:1 |
| Response Time | <6ms |
| Display Color | 8Bit,16.7M |
| Input Voltage | AC100V~240V 50/60Hz |
| Input | 1*DVI,1*HD&MI,1* DP (Display port), 1*VGA (SVGA / XGA /WXGA),2*RS232(RJ45) |
| Impact resistance | ≥IK07 |
| Luminance, white | 500cd/m2&700cd/m2 |
| Operation Conditions | 10%-90%RH |
| Pixels H×V | 1960*1080 |
| Pixel Pitch | 0.55926*0.55926 mm |
Dongguan Ever Glory Photoelectric Co., Ltd., founded in 2011, is a high-tech enterprise with independent intellectual property rights. We operate 20,000㎡ production facilities located in Shenzhen and Dongguan. We specialize in providing high-quality 5″ to 75″ G+G and G+F capacitive touch panels, display solutions, and touch monitors and panel PCs. All production is completed in-house, with a dedicated cover glass production line, a Class-100 dust-free lamination workshop, and a monitor assembly line.
As a rapidly growing and innovative company, we were among the first in mainland China to initiate research and production of large-size PCAP technology, and we hold patents for lamination technology, equipment, and adhesives.
We are committed to being your one-stop touch solution partner. With over ten years of experience, we have developed extensive expertise across various applications, including industrial, outdoor, medical, banking, education, automotive, home automation,and entertainment sectors.
Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2.Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
49” PCAP Projected Capacitive Touch Screen For Outdoor Waterproof Engineering Information
This product is a custom PCAP touch panel for OEM equipment integration.
- Product Category
- PCAP Touch Panel
- Product Role
- custom PCAP touch panel for OEM equipment integration
- Size / Format
- custom size
- Best Fit
- embedded display, OEM equipment, kiosk and HMI integration
- Review Focus
- Cover glass size; Sensor structure; FPC routing; Touch controller; USB / I2C; Grounding; Metal bezel; LCD interference; Glove / Wet Touch; Optical bonding requirement
Information Needed for Review
- Cover glass size
- Sensor structure
- FPC routing
- Touch controller
- USB / I2C
- Grounding
- Metal bezel
- LCD interference
- Glove / Wet Touch
- Optical bonding requirement
Typical Applications
embedded display, OEM equipment, kiosk and HMI integration
Common Engineering Questions
Does this PCAP touch panel include an LCD?
The standard supply boundary is the PCAP touch assembly. LCD integration can be reviewed separately as a touch display module project.
What information is needed for engineering review?
Send the cover glass size, sensor structure, FPC direction, controller and interface requirements, grounding plan, bezel design, LCD information and any glove, wet-touch or bonding requirement.
What is the standard PCAP supply boundary?
The standard supply boundary is the touch assembly for OEM integration. A complete display assembly additionally requires the LCD, enclosure and external display interfaces.
For an accurate quotation, send drawings and application details instead of only screen size.
