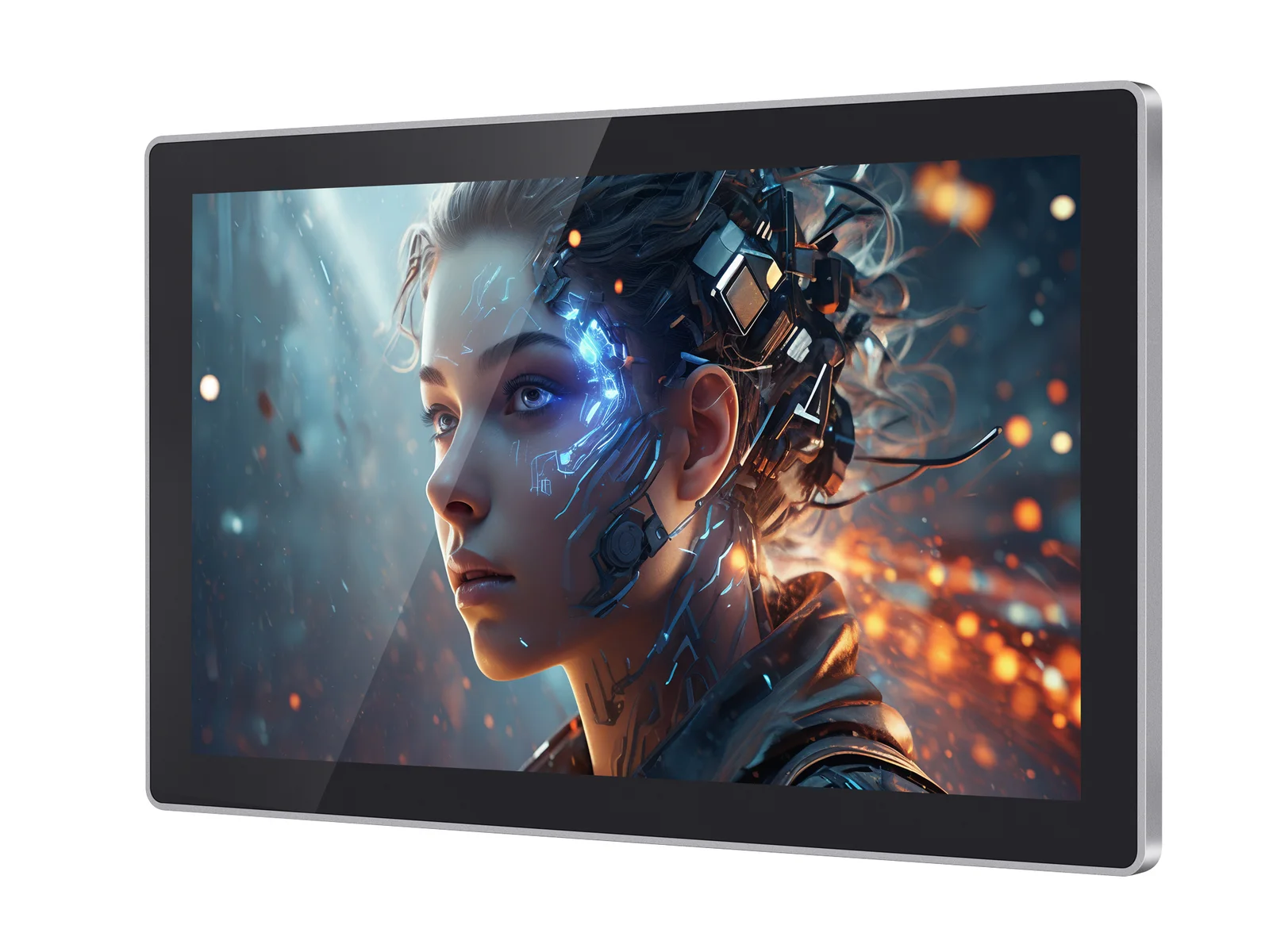

15.6 Inch Industrial Touch Screen Monitor for OEM Equipment
A compact 15.6 inch industrial touch screen monitor for OEM equipment, HMI terminals, embedded control panels and self-service systems. The standard YW01 configuration uses Full HD resolution, capacitive USB touch and HDMI/VGA input.
This standard YW01 product page is intended for OEM equipment, compact HMI terminals, embedded control panels and self-service systems. It is positioned separately from outdoor high-brightness, IP-rated waterproof and panel PC product pages.
Key Features
- 15.6 inch Full HD monitor for compact industrial HMI.
- 350 cd/m2 brightness with 3000:1 contrast ratio.
- PCAP touch, USB drive-free controller and <=5 ms touch response.

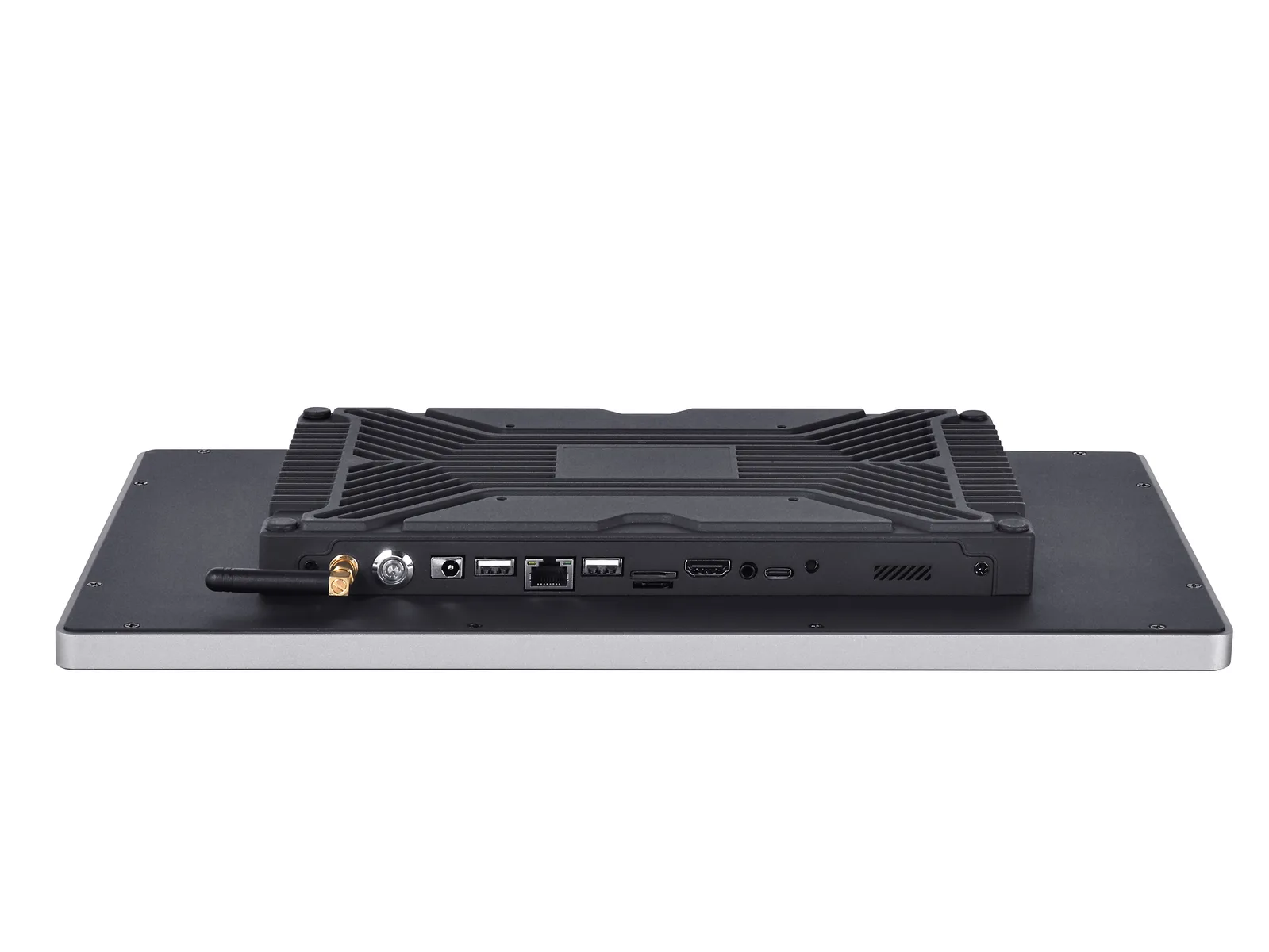

- HDMI + VGA input for controller boards and industrial PCs.
- DC 12 V input through DC 5521 connector.
Technical Specifications
| Model | YL-GZYW01Q156TC-V1 |
|---|---|
| Display size | 15.6 inch |
| Resolution | 1920 x 1080 |
| Brightness | 350 cd/m2 |
| Contrast ratio | 3000:1 |
| Viewing angle | 89/89/89/89 |
| Touch type | Capacitive touch screen |
| Touch interface | USB, drive-free |
| Touch response | <=5 ms |
| Surface hardness | Mohs 7 |
| Signal input | HDMI + VGA |
| Power connector | DC 5521 |
| Max power | 20 W |
| Operating temperature | -5 C to 50 C |
| Storage temperature | -20 C to 60 C |
| Dimension | 386.56 x 235.99 x 37.6 mm |

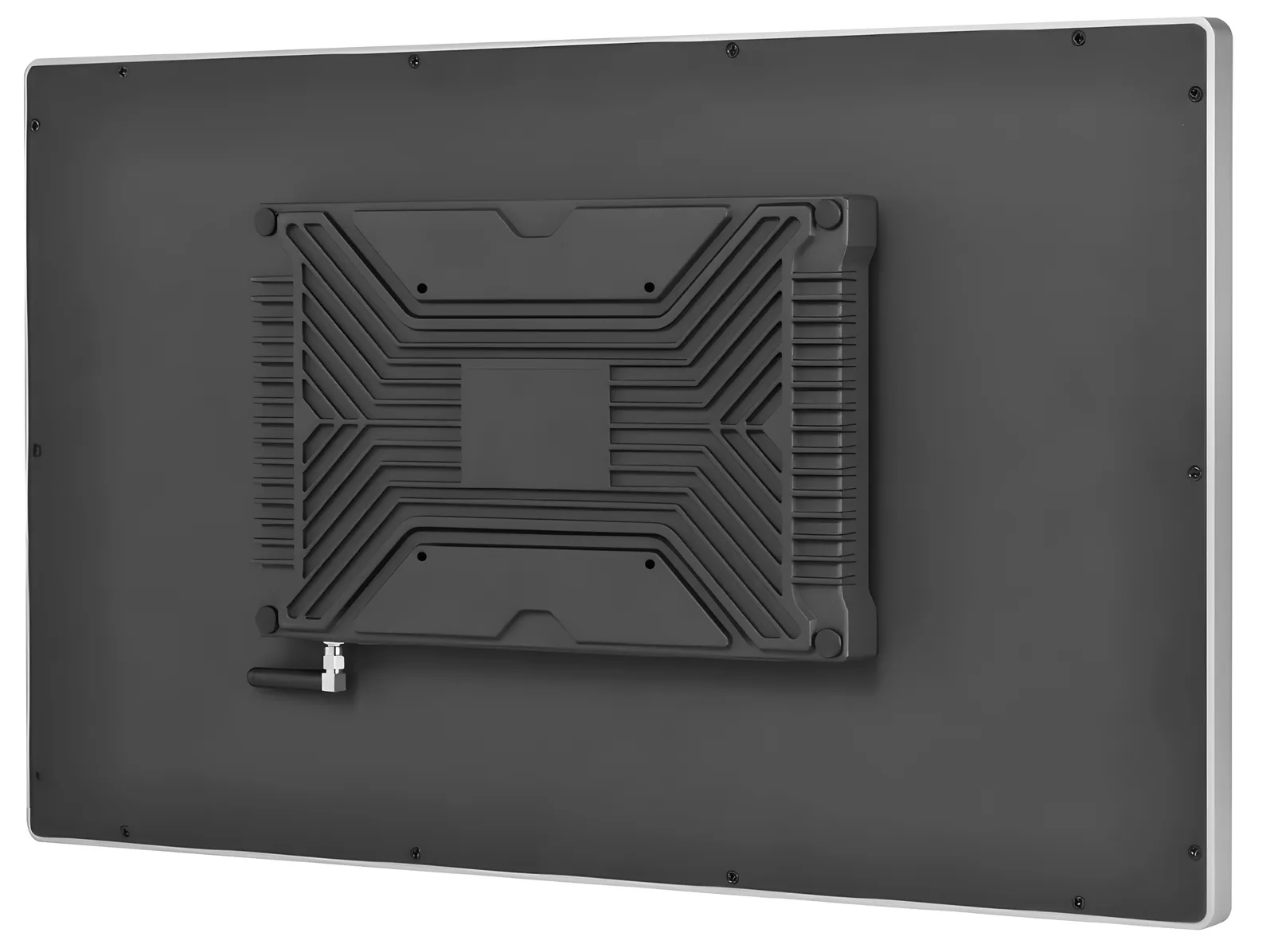

| Mounting | VESA 100 x 100 mm |
Typical Applications
Typical use cases include industrial HMI, kiosk systems, control cabinets, automation equipment, inspection and testing equipment, commercial terminals and OEM machine interfaces.
Customization Options
EverGlory can support project-based customization for cover glass, surface treatment, touch tuning, cable length, brightness, interface, mounting structure and product appearance. Share your installation space, controller interface, brightness requirement, operating environment and estimated quantity for evaluation.
Related Product Options
- Standard industrial touchscreen monitor series
- Touch screen monitor category
- Outdoor high brightness touchscreen monitor
- Embedded industrial touchscreen monitor selection guide
FAQ
Is 15.6 inch suitable for industrial control cabinets?
Yes. It is a good size when panel space is limited and the UI mainly shows control buttons, status values, alarms or simple production data.
Can EverGlory customize the glass and mounting?
Yes. Buyers can share drawings, glass requirements, interface, brightness, cable and mounting details for OEM evaluation.
Request a Quote
Send your size, mounting drawing, interface, brightness, touch requirements, operating environment and order quantity to EverGlory for a custom industrial touch monitor quote.
15.6 Inch Industrial Touch Screen Monitor for OEM Equipment Engineering Information
15.6 Inch Industrial Touch Screen Monitor for OEM Equipment is a 15.6 inch industrial touch screen monitor for industrial HMI, kiosk, POS, medical, control and commercial equipment projects. It should be reviewed with display input, touch interface, mounting, enclosure, power and operating environment so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Screen Monitor
- Product Role
- industrial touch screen monitor
- Size / Format
- 15.6 inch
- Best Fit
- industrial HMI, kiosk, POS, medical, control and commercial equipment projects
- Review Focus
- display input, touch interface, mounting, enclosure, power and operating environment
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and 15.6 inch display or housing requirement.
- display input, touch interface, mounting, enclosure, power and operating environment.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications
OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects that need stronger enclosure design, stable touch performance and long-term field reliability.
This page is positioned under Touch Screen Monitor, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this industrial touch screen monitor ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send display input, touch interface, mounting, enclosure, power and operating environment, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
