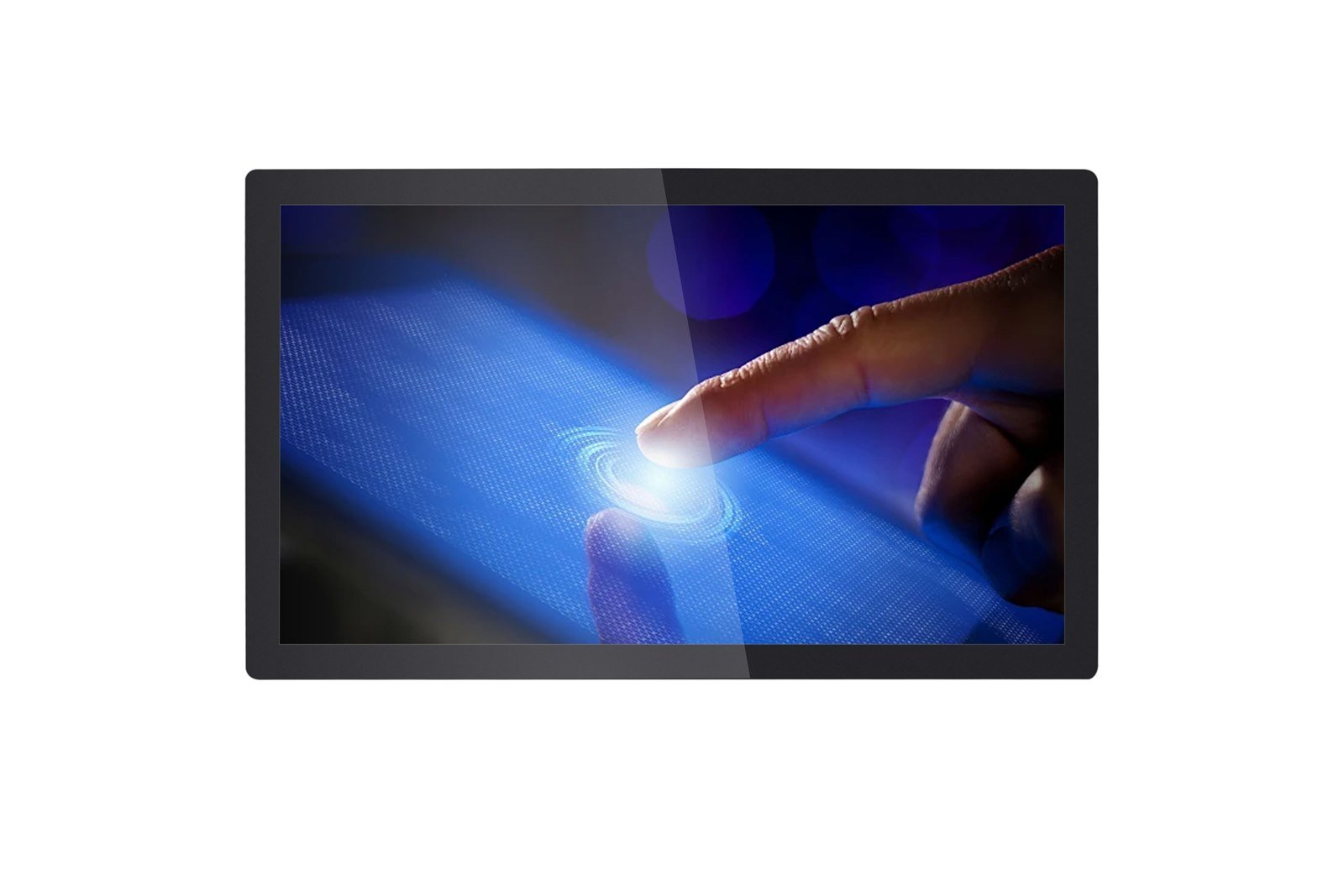

The 21.5 inch bezel-less embedded touch screen monitor is positioned for OEM designs that need a cleaner front appearance, embedded structure and flexible mounting support for HMI panels or kiosk equipment.
Key Advantages
- Bezel-less embedded appearance for modern front-panel integration.
- 300-1000 cd/m2 brightness range for different lighting conditions.
- 1.85 mm cover glass noted in the source specification.
- Wall-mounted, in-line and out-of-line VESA mounting support.
- PCAP touch, HDMI + VGA signal input and DC 5521 power.
Typical Applications
Recommended for modern HMI panels, embedded kiosks, medical or industrial terminals, machine interfaces and self-service systems.
Technical Specifications
| Model | YL-GZNW02Q215TC-V1 |
|---|---|
| Display size | 21.5 inch |
| Resolution | 1920 x 1080 |
| Brightness | 300-1000 cd/m2 |
| Contrast ratio | 1000:1 |
| Viewing angle | 89/89/89/89 |
| Touch type | Capacitive touch screen |
| Touch interface | USB, drive-free |
| Touch response | <=5 ms |
| Surface hardness | Mohs 7 |

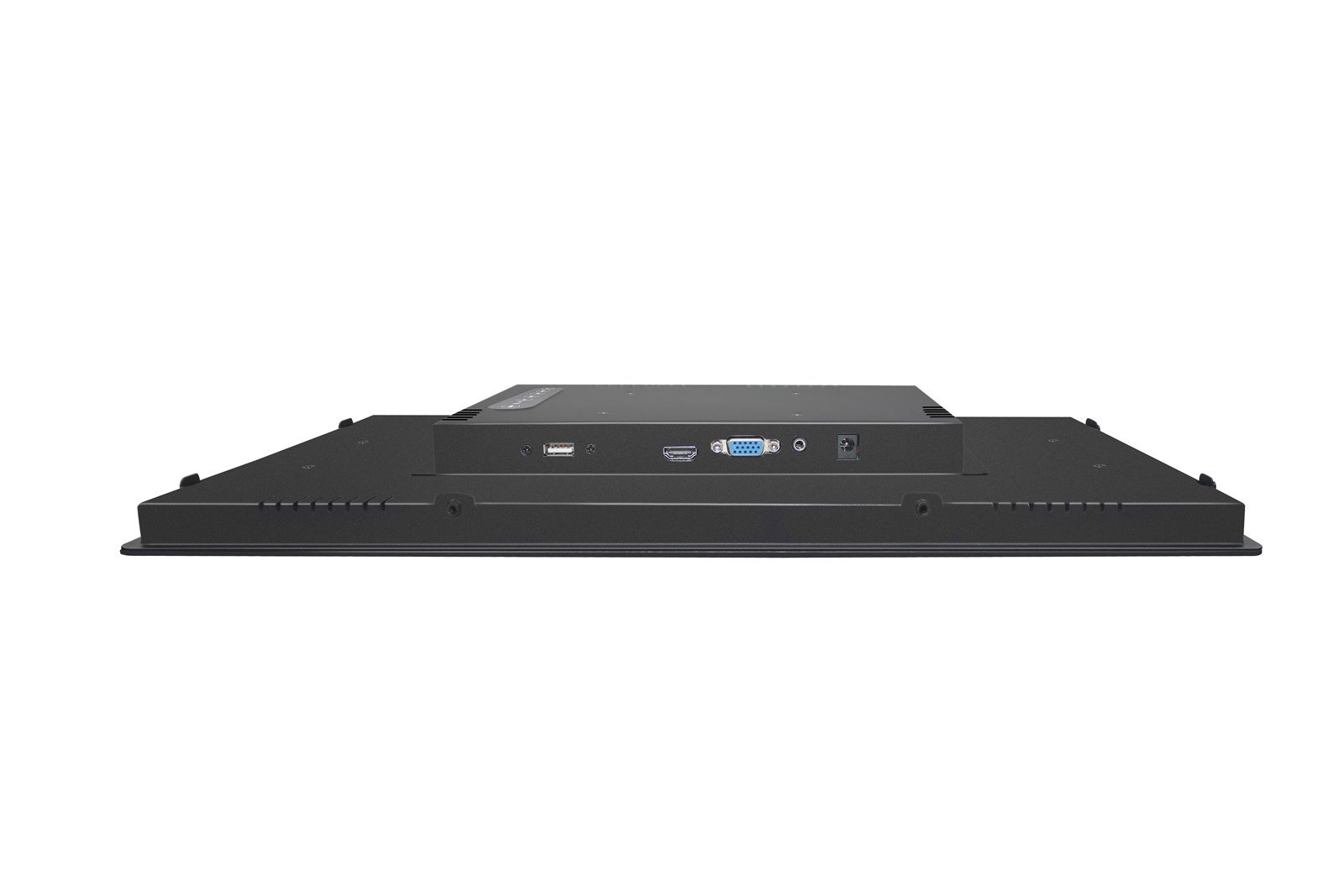

| Signal input | HDMI + VGA |
| Power connector | DC 5521 |
| Max power | Pmax <= 40 W |
| Operating temperature | -20 C to 60 C |
| Storage temperature | -20 C to 60 C |
| Dimension | 516 x 311 x 44.5 mm |
| Mounting | Wall-mounted, in-line and out-of-line VESA 100 x 100 mm |
Integration Notes
Share the installation space, target brightness, interface requirement, operating environment and drawing constraints before quotation. EverGlory can help evaluate glass, touch tuning, mounting details, cable layout and structure customization for OEM projects.
Related Product Options
- panel mount touch screen monitor options
- industrial touch screen monitor options
- touch screen monitor category
FAQ
Is NW02 the same as the existing NW01 series page?
No. This draft is for the NW02 bezel-less embedded model page and should not overwrite the older NW01 series page.
When is a bezel-less embedded monitor useful?
It is useful when the final equipment needs a cleaner front surface, a more integrated HMI appearance or mounting flexibility for panel and kiosk designs.
Need a Custom Industrial Touch Screen Monitor?
Send your size, mounting, brightness, interface, touch and environment requirements. EverGlory can review the right structure and provide project-based quotation support.
21.5 Inch Bezel-Less Embedded Touch Screen Monitor for HMI Panels Engineering Information
21.5 Inch Bezel-Less Embedded Touch Screen Monitor for HMI Panels is a 21.5 inch industrial touch screen monitor for industrial HMI, kiosk, POS, medical, control and commercial equipment projects. It should be reviewed with display input, touch interface, mounting, enclosure, power and operating environment so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Screen Monitor
- Product Role
- industrial touch screen monitor
- Size / Format
- 21.5 inch
- Best Fit
- industrial HMI, kiosk, POS, medical, control and commercial equipment projects
- Review Focus
- display input, touch interface, mounting, enclosure, power and operating environment
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and 21.5 inch display or housing requirement.
- display input, touch interface, mounting, enclosure, power and operating environment.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications
OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects where display integration, touch stability and mechanical fit need to be confirmed before production.
This page is positioned under Touch Screen Monitor, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this industrial touch screen monitor ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send display input, touch interface, mounting, enclosure, power and operating environment, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
