15.6 Inch Wide Temperature Touch Screen Monitor for Outdoor-Facing HMI
Key Advantages
- Wide operating temperature listed as -30 C to 85 C.

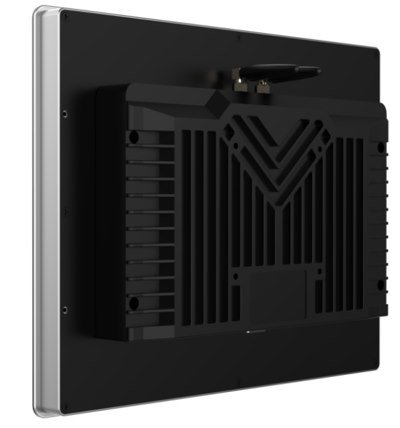

- Industrial-style metal body for rugged integration.

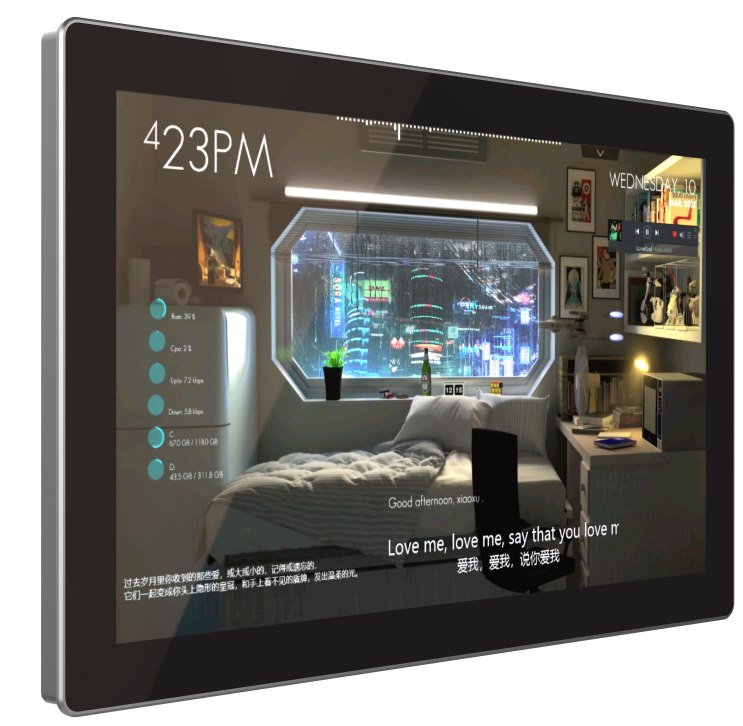

- 15.6 inch Full HD display with 450 cd/m2 brightness.
- PCAP touch with USB drive-free controller.
- HDMI + VGA input and DC 5521 power connector.
Typical Applications
Recommended for outdoor-facing terminals, rugged HMI panels, industrial equipment, inspection stations and self-service devices.
Technical Specifications
| Model | YL-GZXB01Q156TC-V1 |
|---|---|
| Display size | 15.6 inch |
| Resolution | 1920 x 1080 |
| Brightness | 450 cd/m2 |
| Contrast ratio | 800:1 |
| Viewing angle | 85/85/85/85 |
| Touch type | Capacitive touch screen |
| Touch interface | USB, drive-free |
| Touch response | <=5 ms |
| Surface hardness | Mohs 7 |
| Signal input | HDMI + VGA |
| Power connector | DC 5521 |
| Max power | Pmax < 20 W |
| Operating temperature | -30 C to 85 C |
| Storage temperature | -40 C to 90 C |
| Dimension | Confirm final drawing before publishing exact outer dimension |
| Mounting | VESA 100 x 100 mm |
Integration Notes
Share the installation space, target brightness, interface requirement, operating environment and drawing constraints before quotation. EverGlory can help evaluate glass, touch tuning, mounting details, cable layout and structure customization for OEM projects.
Related Product Options
- sunlight readable touch screen monitor options
- industrial touch screen monitor options
- touch screen monitor category
FAQ
Is this page meant to replace the standard 15.6 inch monitor page?
No. This page targets wide-temperature and rugged integration intent, while the Week 2 15.6 inch page covers the standard indoor monitor model.
Does wide temperature mean outdoor waterproof?
No. Wide temperature and waterproof sealing are different requirements. Waterproof or IP claims should be added only when the selected structure and test data support them.
Need a Custom Industrial Touch Screen Monitor?
Send your size, mounting, brightness, interface, touch and environment requirements. EverGlory can review the right structure and provide project-based quotation support.
15.6 Inch Wide Temperature Touch Screen Monitor for Outdoor-Facing HMI Engineering Information
15.6 Inch Wide Temperature Touch Screen Monitor for Outdoor-Facing HMI is a 15.6 inch industrial touch screen monitor for industrial HMI, kiosk, POS, medical, control and commercial equipment projects. It should be reviewed with display input, touch interface, mounting, enclosure, power and operating environment so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Screen Monitor
- Product Role
- industrial touch screen monitor
- Size / Format
- 15.6 inch
- Best Fit
- industrial HMI, kiosk, POS, medical, control and commercial equipment projects
- Review Focus
- display input, touch interface, mounting, enclosure, power and operating environment
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and 15.6 inch display or housing requirement.
- display input, touch interface, mounting, enclosure, power and operating environment.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications
OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects that need stronger enclosure design, stable touch performance and long-term field reliability.
This page is positioned under Touch Screen Monitor, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this industrial touch screen monitor ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send display input, touch interface, mounting, enclosure, power and operating environment, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
