Key Advantages

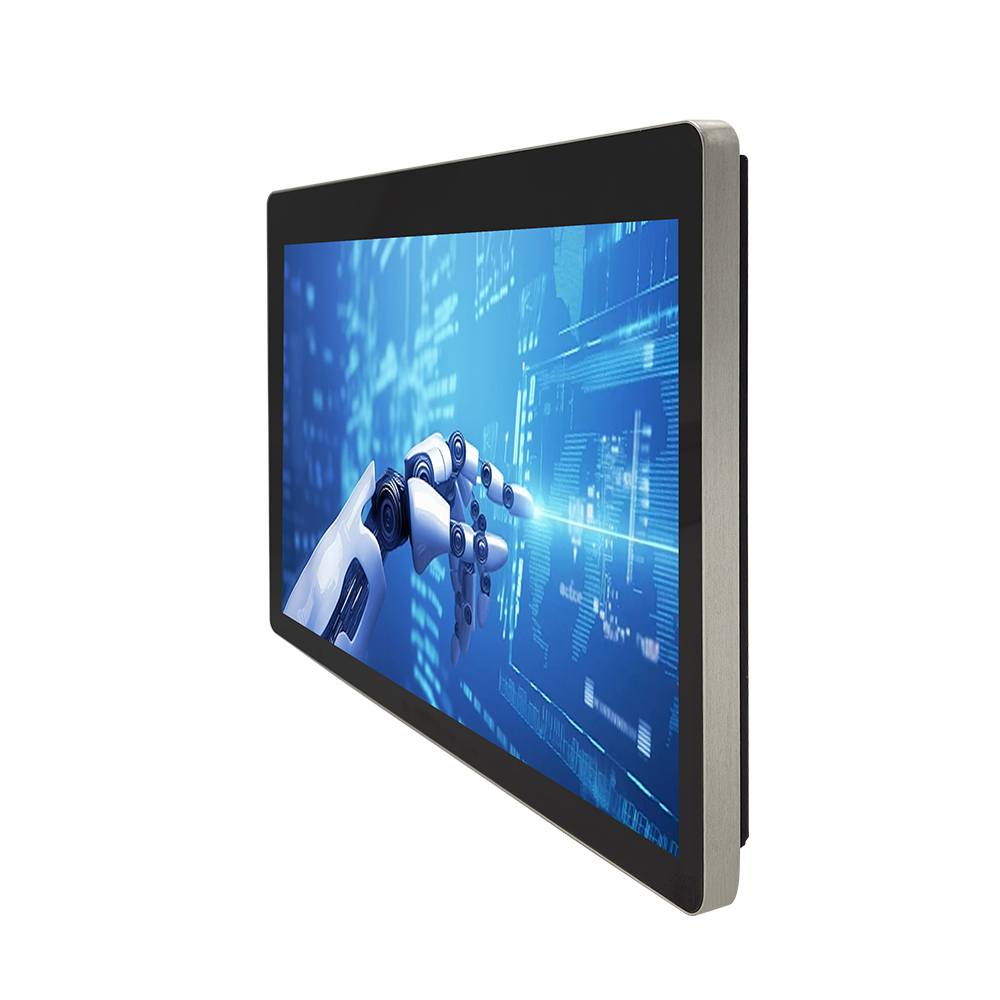

- 25 mm slim structure for compact equipment integration.

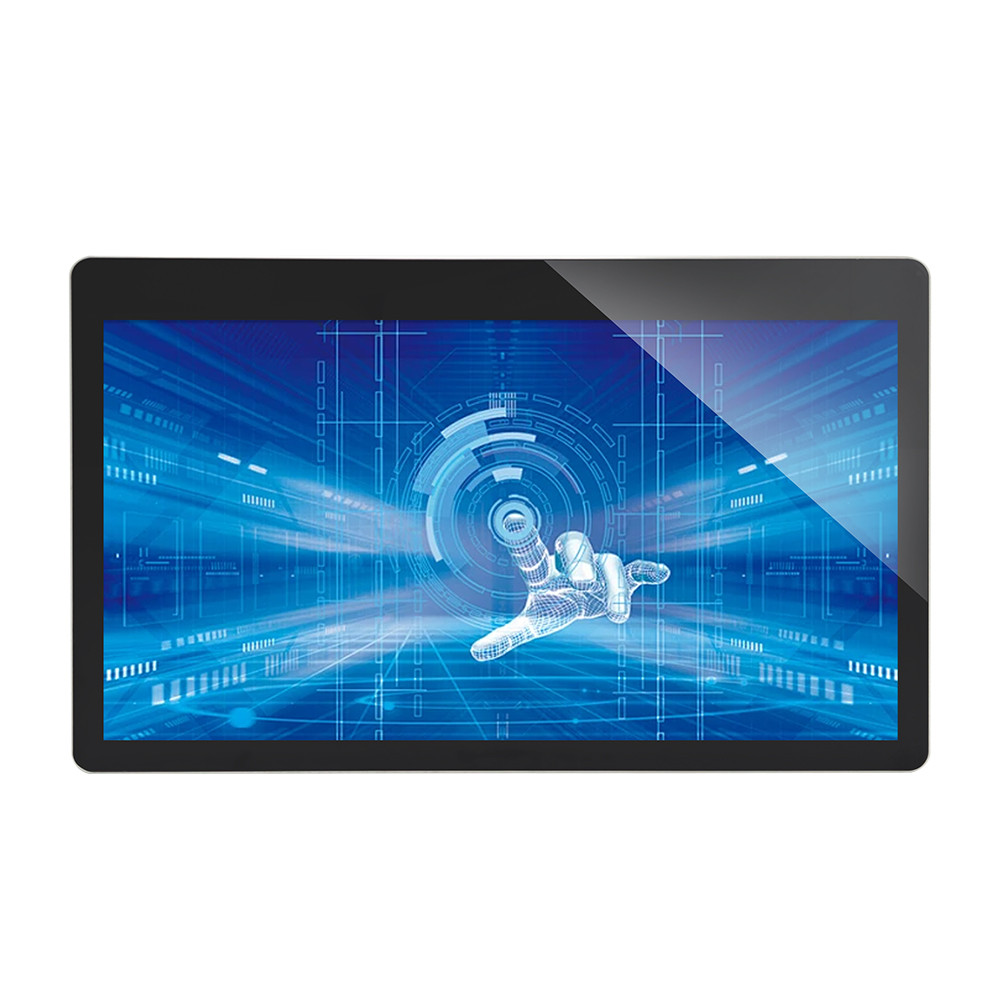

- 15.6 inch Full HD display with 500 cd/m2 brightness.
- PCAP capacitive touch with USB drive-free controller and <=5 ms response.

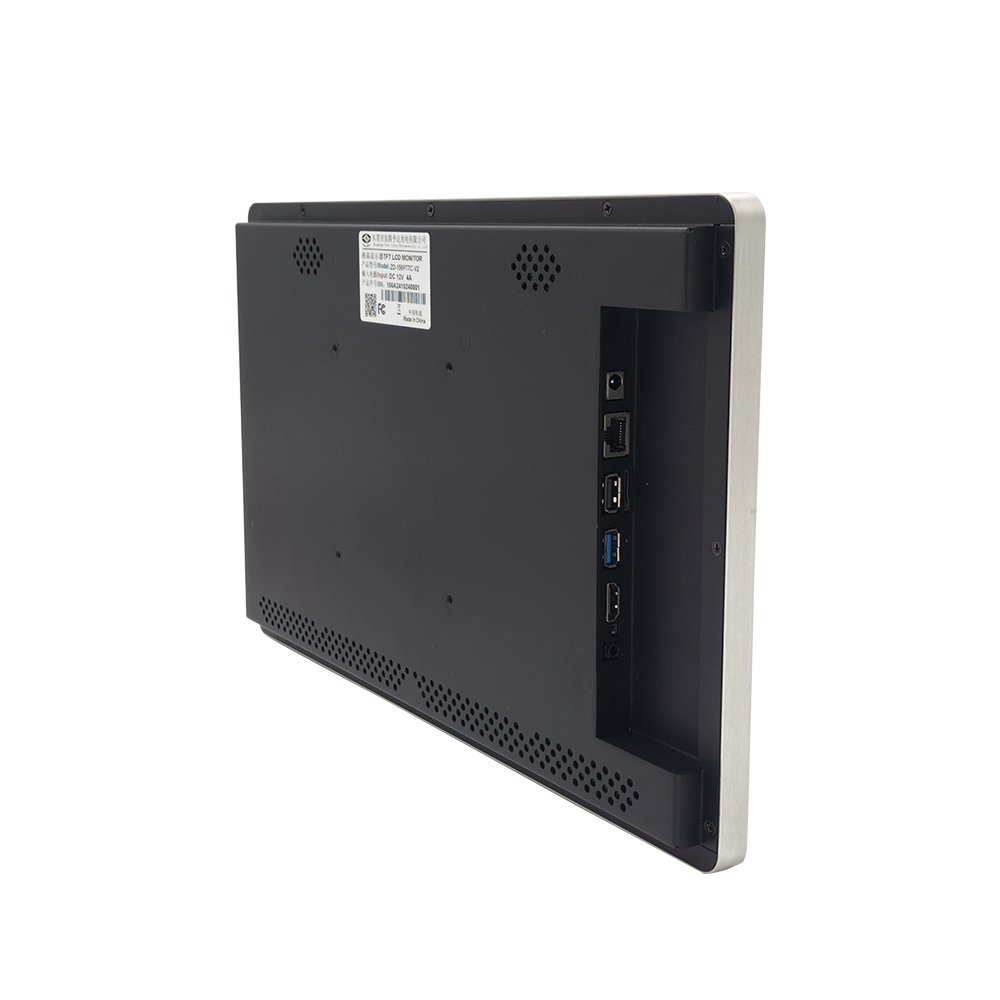

- HDMI + VGA signal input for controller boards and industrial PCs.

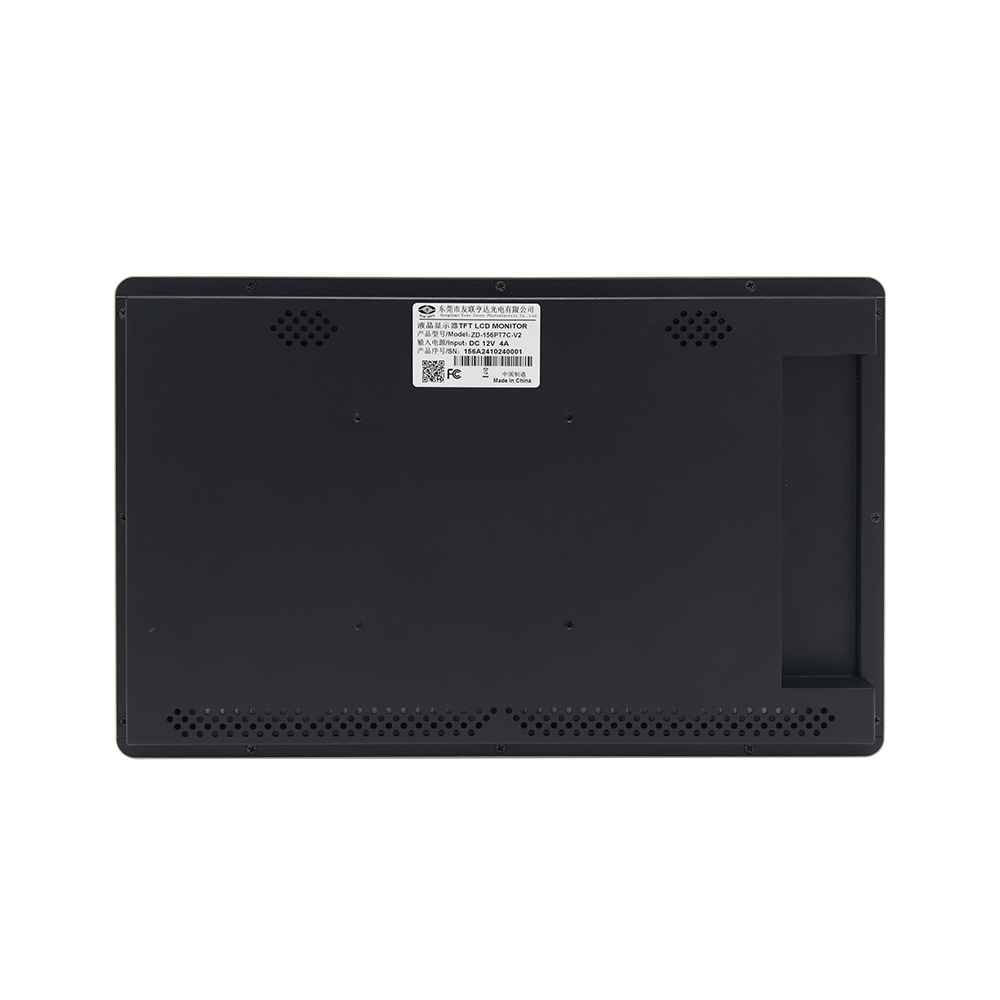

- Aluminum profile and metal casing with VESA 100 x 100 mm mounting.
Typical Applications
Recommended for compact HMI panels, equipment control terminals, wall-mounted stations and OEM machine interfaces.
Technical Specifications
| Model | YL-SZPS01Q156TC-V1 |
|---|---|
| Display size | 15.6 inch |
| Resolution | 1920 x 1080 |
| Brightness | 500 cd/m2 |
| Contrast ratio | 800:1 |
| Viewing angle | 85/85/85/85 |
| Touch type | Capacitive touch screen |
| Touch interface | USB, drive-free |
| Touch response | <=5 ms |
| Surface hardness | Mohs 7 |
| Signal input | HDMI + VGA |
| Power connector | DC 5521 |
| Max power | Pmax < 20 W |
| Operating temperature | -10 C to 50 C |
| Storage temperature | -20 C to 60 C |
| Dimension | 372.2 x 237 x 25 mm |
| Mounting | VESA 100 x 100 mm |
Integration Notes
Share the installation space, target brightness, interface requirement, operating environment and drawing constraints before quotation. EverGlory can help evaluate glass, touch tuning, mounting details, cable layout and structure customization for OEM projects.
Related Product Options
- industrial touch screen monitor options
- wall mount touch screen monitor options
- touch screen monitor category
FAQ
When should buyers choose the slim ZPS01 structure?
Choose it when the equipment has limited installation depth or when the product design needs a thinner monitor body than a conventional industrial housing.
Does the slim structure still support standard industrial interfaces?
Yes. The source specification lists HDMI, VGA, USB touch and DC 5521 power input for standard controller integration.
Need a Custom Industrial Touch Screen Monitor?
Send your size, mounting, brightness, interface, touch and environment requirements. EverGlory can review the right structure and provide project-based quotation support.
15.6 Inch Slim Industrial Touch Screen Monitor for OEM HMI Engineering Information
15.6 Inch Slim Industrial Touch Screen Monitor for OEM HMI is a 15.6 inch industrial touch screen monitor for industrial HMI, kiosk, POS, medical, control and commercial equipment projects. It should be reviewed with display input, touch interface, mounting, enclosure, power and operating environment so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Screen Monitor
- Product Role
- industrial touch screen monitor
- Size / Format
- 15.6 inch
- Best Fit
- industrial HMI, kiosk, POS, medical, control and commercial equipment projects
- Review Focus
- display input, touch interface, mounting, enclosure, power and operating environment
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and 15.6 inch display or housing requirement.
- display input, touch interface, mounting, enclosure, power and operating environment.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications
OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects that need stronger enclosure design, stable touch performance and long-term field reliability.
This page is positioned under Touch Screen Monitor, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this industrial touch screen monitor ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send display input, touch interface, mounting, enclosure, power and operating environment, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
