Key Advantages
- 21.5 inch Full HD monitor for embedded HMI integration.
- 500 cd/m2 brightness for clear indoor industrial interfaces.
- PCAP touch with USB drive-free controller and hard glass surface.

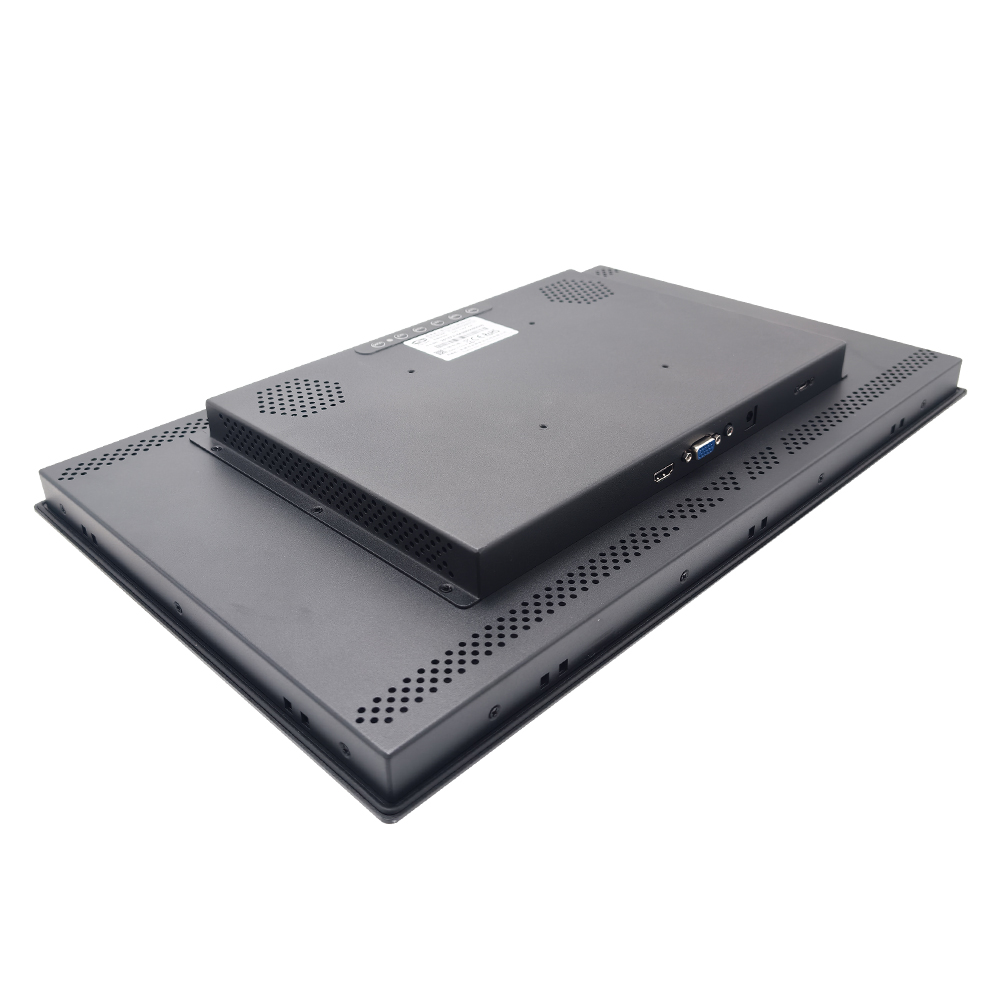

- HDMI + VGA input for common industrial controllers.

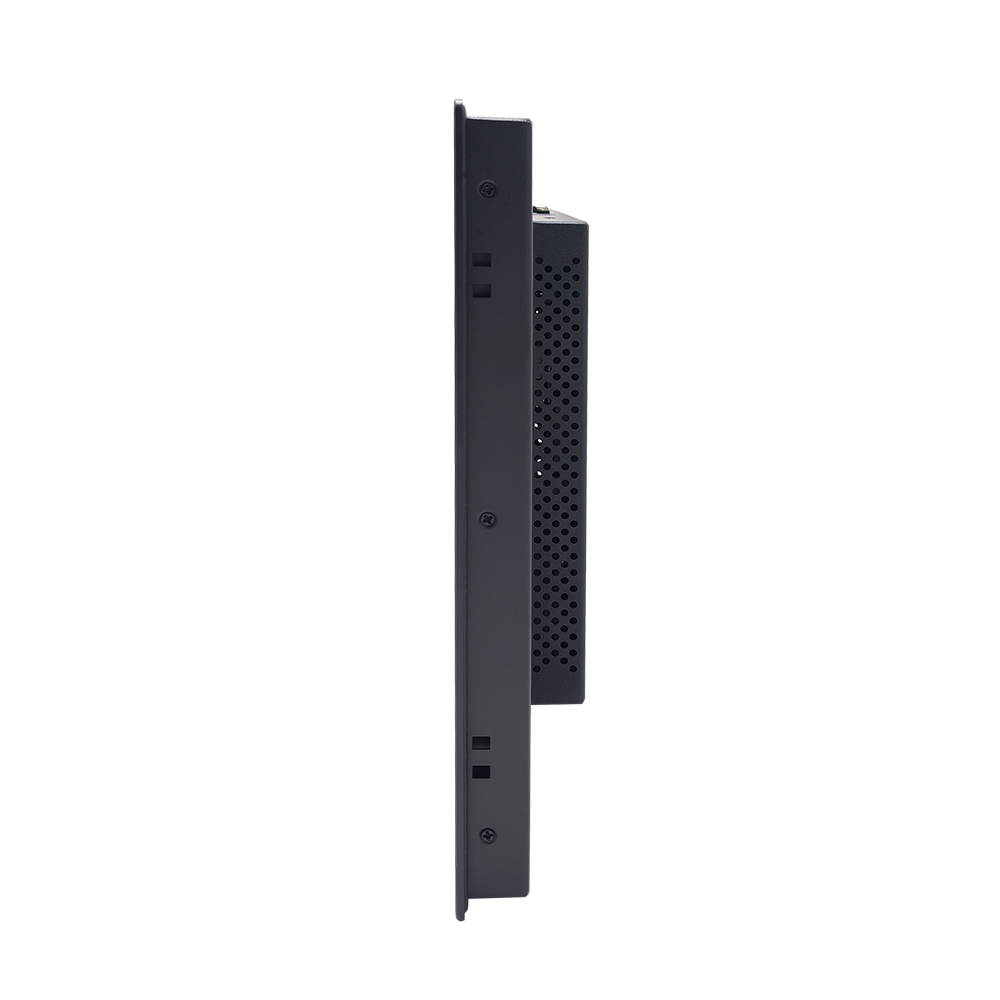

- Aluminum profile and sheet-metal casing with VESA 100 x 100 mm mounting.
Typical Applications
Recommended for panel mount HMI, machine control cabinets, automation equipment, embedded kiosks and OEM terminals.
Technical Specifications
| Model | YL-TZYB01Q215TC-V1 |
|---|---|
| Display size | 21.5 inch |
| Resolution | 1920 x 1080 |
| Brightness | 500 cd/m2 |
| Contrast ratio | 1000:1 |
| Viewing angle | 89/89/89/89 |
| Touch type | Capacitive touch screen |
| Touch interface | USB, drive-free |
| Touch response | <=5 ms |
| Surface hardness | Mohs 7 |
| Signal input | HDMI + VGA |
| Power connector | DC 5521 |
| Max power | Pmax < 30 W |
| Operating temperature | 0 C to 50 C |
| Storage temperature | -20 C to 60 C |
| Dimension | Confirm final drawing before publishing exact outer dimension |

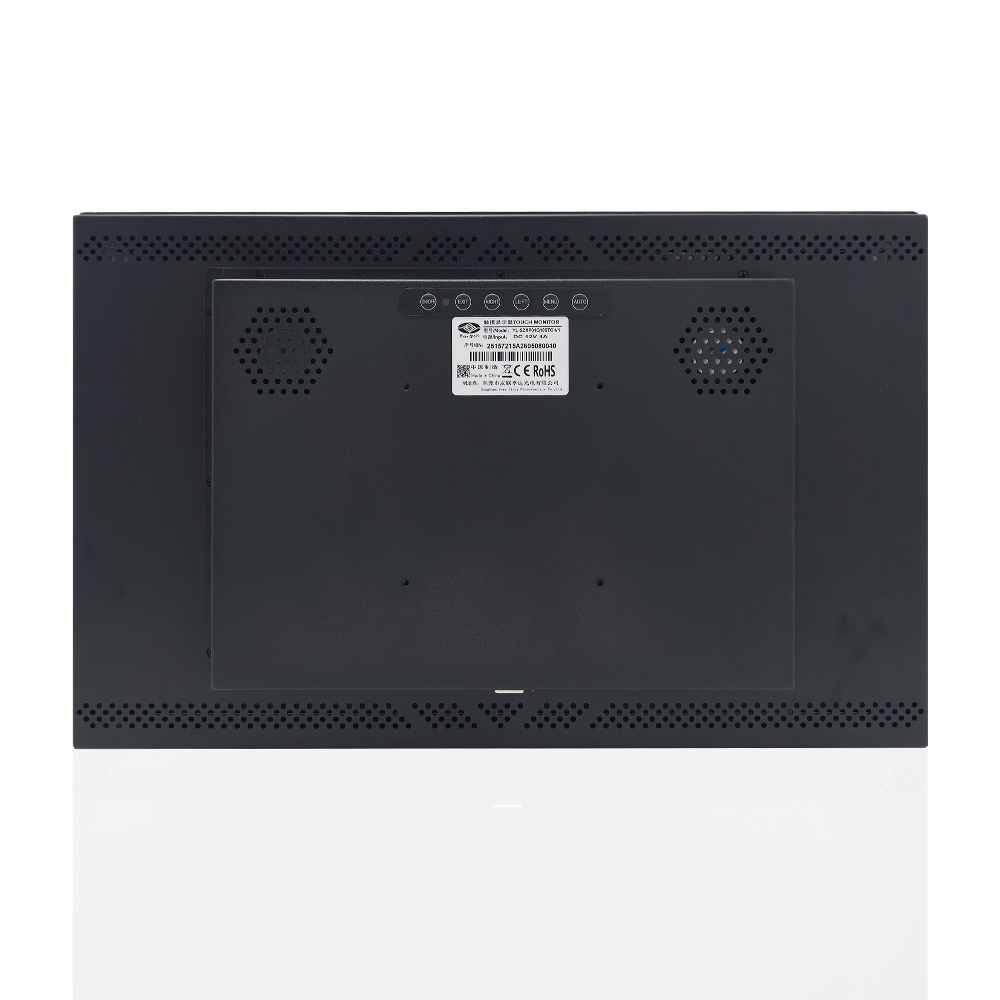

| Mounting | VESA 100 x 100 mm |
Integration Notes
Share the installation space, target brightness, interface requirement, operating environment and drawing constraints before quotation. EverGlory can help evaluate glass, touch tuning, mounting details, cable layout and structure customization for OEM projects.
Related Product Options
- panel mount touch screen monitor options
- open frame touch screen monitor options
- touch screen monitor category
FAQ
Is this different from a standard 21.5 inch monitor page?
Yes. This page should focus on embedded and panel integration, while the Week 2 21.5 inch page covers the standard indoor monitor model.
Should the exact outside dimension be published?
Not until the final drawing is confirmed. The local specification points buyers to the actual drawing for the outer dimension.
Need a Custom Industrial Touch Screen Monitor?
Send your size, mounting, brightness, interface, touch and environment requirements. EverGlory can review the right structure and provide project-based quotation support.
21.5 Inch Embedded Touch Screen Monitor for Panel Mount HMI Engineering Information
21.5 Inch Embedded Touch Screen Monitor for Panel Mount HMI is a 21.5 inch industrial touch screen monitor for industrial HMI, kiosk, POS, medical, control and commercial equipment projects. It should be reviewed with display input, touch interface, mounting, enclosure, power and operating environment so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Screen Monitor
- Product Role
- industrial touch screen monitor
- Size / Format
- 21.5 inch
- Best Fit
- industrial HMI, kiosk, POS, medical, control and commercial equipment projects
- Review Focus
- display input, touch interface, mounting, enclosure, power and operating environment
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and 21.5 inch display or housing requirement.
- display input, touch interface, mounting, enclosure, power and operating environment.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications
OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects where display integration, touch stability and mechanical fit need to be confirmed before production.
This page is positioned under Touch Screen Monitor, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this industrial touch screen monitor ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send display input, touch interface, mounting, enclosure, power and operating environment, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
