21.5 Inch Stainless Steel Touch Screen Monitor for Clean Industrial HMI
Key Advantages
- 304 metal casing and aluminum profile structure.
- 21.5 inch Full HD display with 300 cd/m2 brightness.

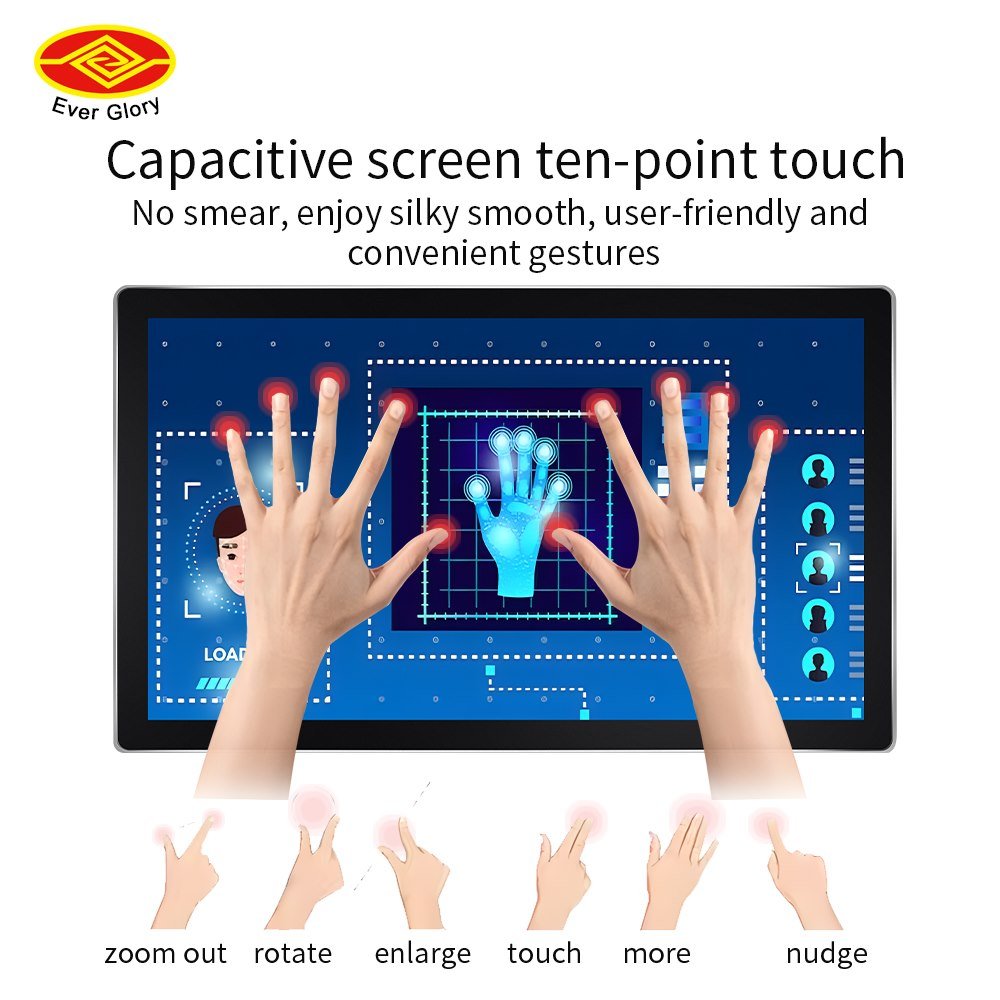

- PCAP capacitive touch with USB drive-free controller.

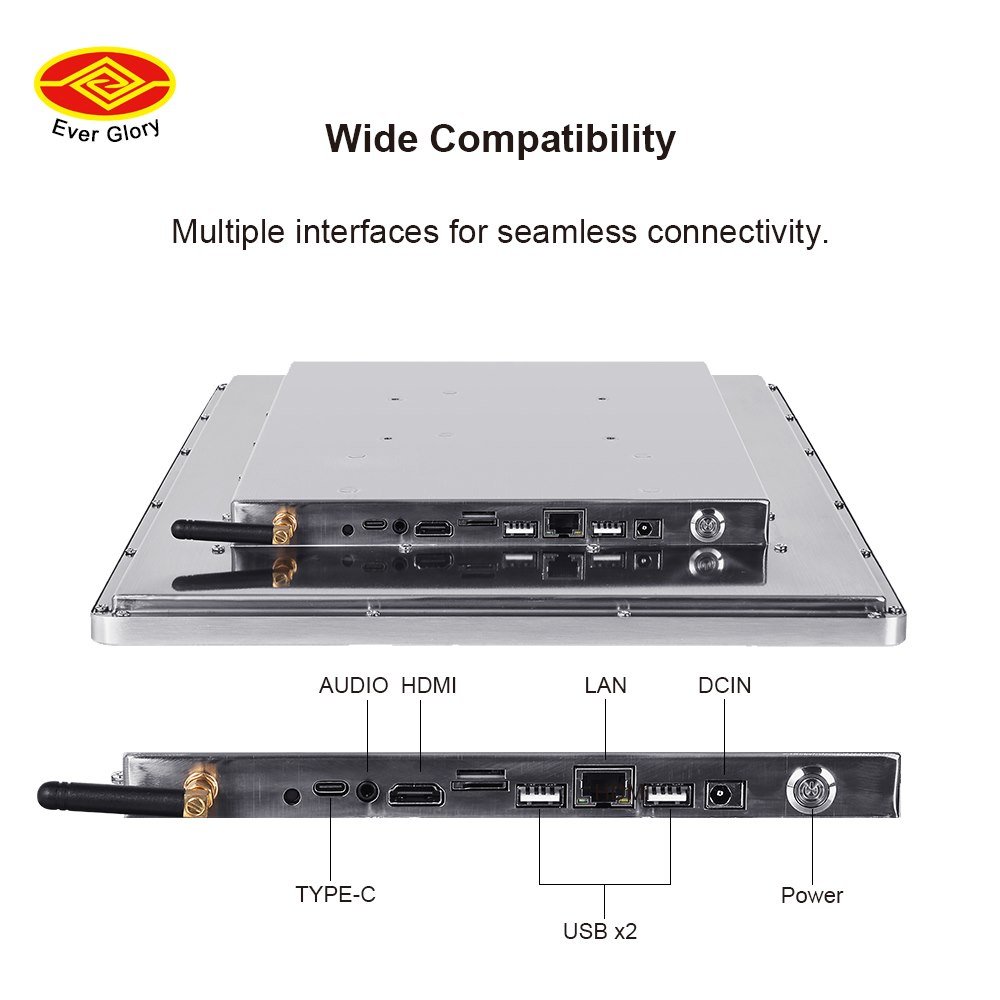

- HDMI + VGA input and DC 5521 power connector.
- VESA 100 x 100 mm mounting for wall or equipment installation.
Typical Applications
Recommended for industrial terminals, food-related equipment interfaces, public self-service terminals and factory HMI stations.
Technical Specifications
| Model | YL-SZPB01Q215TC-V1 |
|---|---|
| Display size | 21.5 inch |
| Resolution | 1920 x 1080 |
| Brightness | 300 cd/m2 |
| Contrast ratio | 1000:1 |
| Viewing angle | 89/89/89/89 |
| Touch type | Capacitive touch screen |
| Touch interface | USB, drive-free |
| Touch response | <=5 ms |
| Surface hardness | Mohs 7 |
| Signal input | HDMI + VGA |
| Power connector | DC 5521 |
| Max power | Pmax = 30 W |
| Operating temperature | 0 C to 50 C |
| Storage temperature | -20 C to 60 C |
| Dimension | 312.21 x 520.74 x 37.5 mm; confirm drawing orientation |
| Mounting | VESA 100 x 100 mm |
Integration Notes
Share the installation space, target brightness, interface requirement, operating environment and drawing constraints before quotation. EverGlory can help evaluate glass, touch tuning, mounting details, cable layout and structure customization for OEM projects.
Related Product Options
- IP65 waterproof touch screen monitor alternatives
- industrial touch screen monitor options
- touch screen monitor category
FAQ
Can this page claim IP65 or IP67 waterproof protection?
Not until the final product page has confirmed waterproof test data. Keep the public wording focused on stainless steel structure and OEM integration.
Why use stainless steel instead of a standard metal housing?
Stainless steel is useful when the project needs a cleaner appearance, stronger casing option or easier surface maintenance compared with a conventional painted housing.
Need a Custom Industrial Touch Screen Monitor?
Send your size, mounting, brightness, interface, touch and environment requirements. EverGlory can review the right structure and provide project-based quotation support.
21.5 Inch Stainless Steel Touch Screen Monitor for Clean Industrial HMI Engineering Information
21.5 Inch Stainless Steel Touch Screen Monitor for Clean Industrial HMI is a 21.5 inch industrial touch screen monitor for industrial HMI, kiosk, POS, medical, control and commercial equipment projects. It should be reviewed with display input, touch interface, mounting, enclosure, power and operating environment so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Screen Monitor
- Product Role
- industrial touch screen monitor
- Size / Format
- 21.5 inch
- Best Fit
- industrial HMI, kiosk, POS, medical, control and commercial equipment projects
- Review Focus
- display input, touch interface, mounting, enclosure, power and operating environment
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and 21.5 inch display or housing requirement.
- display input, touch interface, mounting, enclosure, power and operating environment.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications

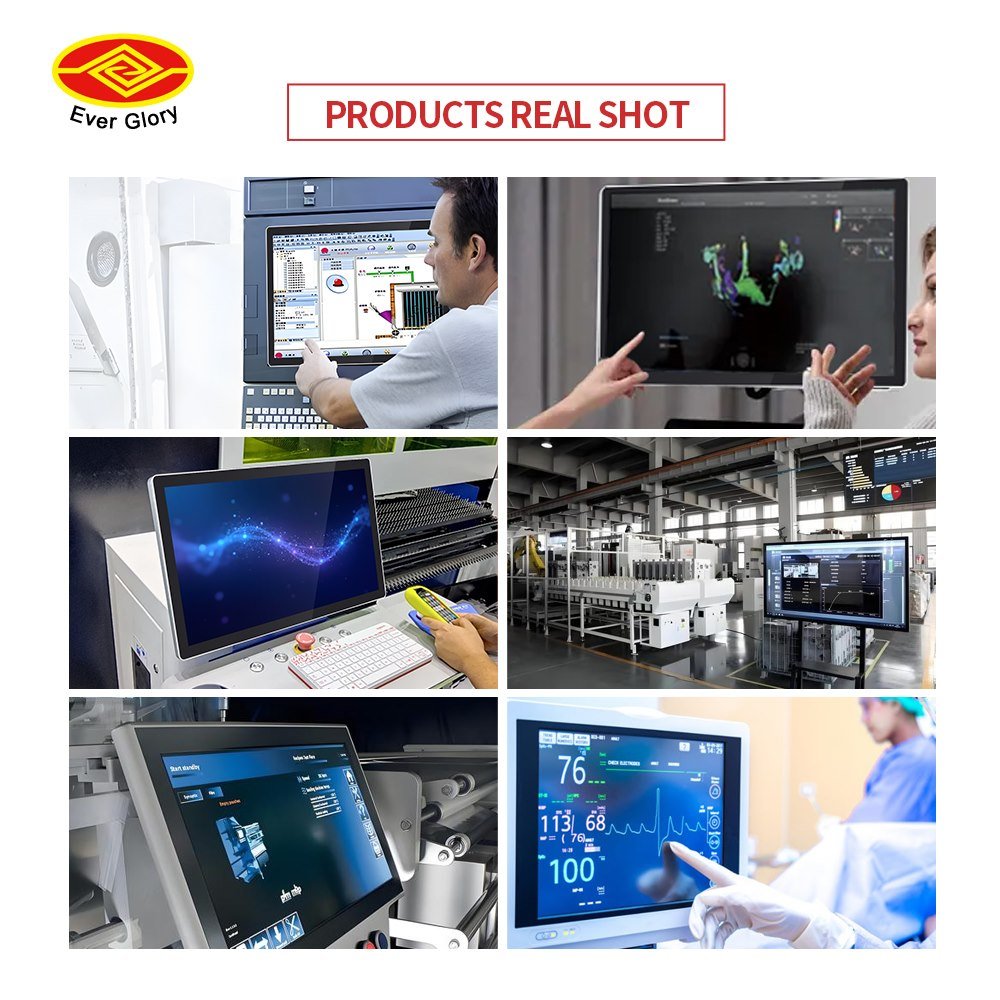

OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects that need stronger enclosure design, stable touch performance and long-term field reliability.
This page is positioned under Touch Screen Monitor, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this industrial touch screen monitor ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send display input, touch interface, mounting, enclosure, power and operating environment, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
