18.5 Inch Industrial Touch Screen Monitor for Control Panels
An 18.5 inch industrial touch screen monitor for factory automation, control panels, machine interfaces and commercial terminals. It combines Full HD display performance, PCAP touch and standard HDMI/VGA input in a rugged monitor structure.
This standard YW01 product page is intended for factory automation, control panels, machine interfaces and commercial terminals. It is positioned separately from outdoor high-brightness, IP-rated waterproof and panel PC product pages.
Key Features
- 18.5 inch Full HD industrial HMI monitor.
- 350 cd/m2 brightness and 89/89/89/89 viewing angle.
- PCAP capacitive touch with USB drive-free controller.
- Wide operating temperature listed in the spec: -20 C to 70 C.

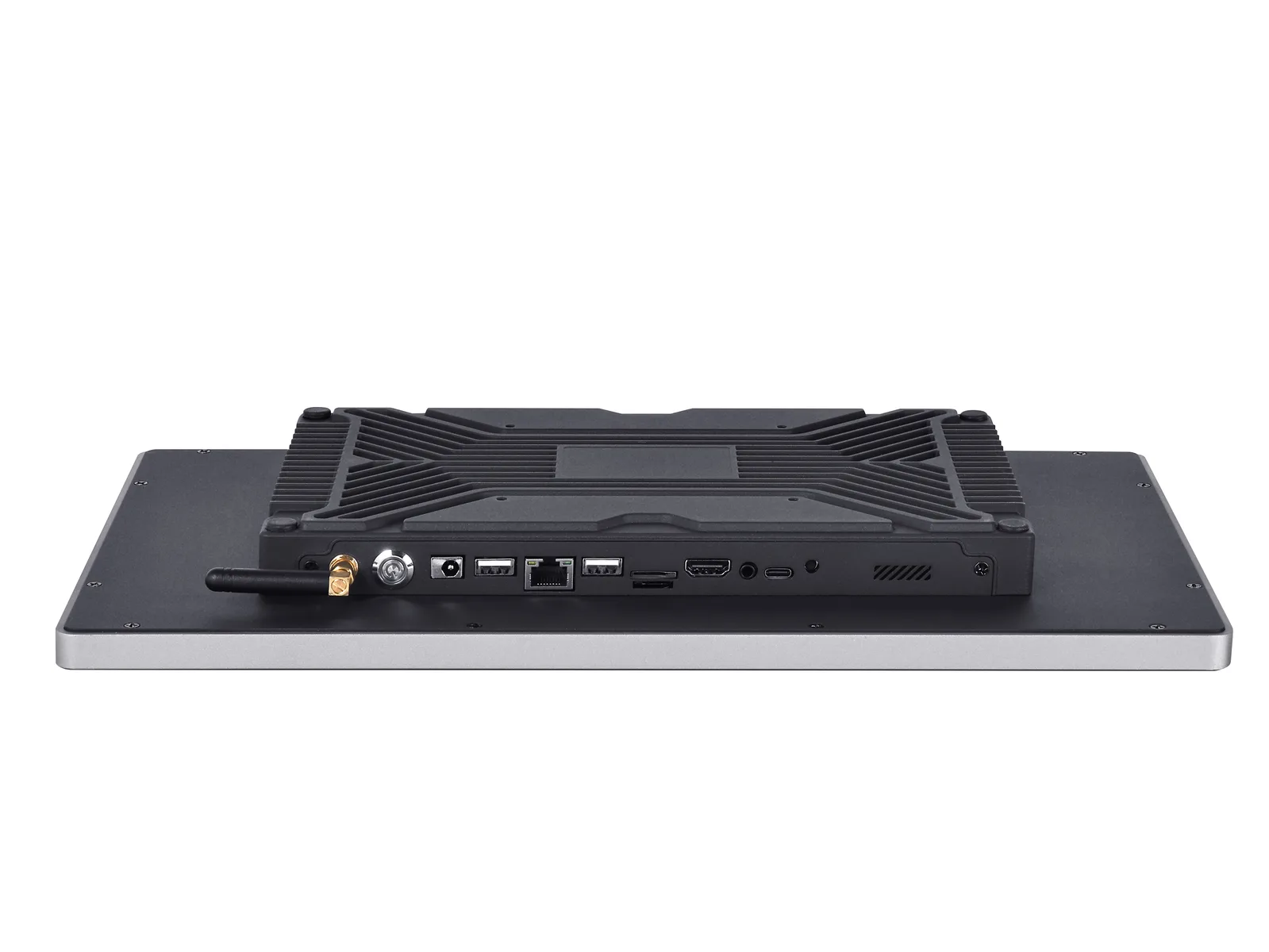

- HDMI + VGA input and DC 5521 power connector.
Technical Specifications
| Model | YL-GZYW01Q185TC-V1 |
|---|---|
| Display size | 18.5 inch |
| Resolution | 1920 x 1080 |
| Brightness | 350 cd/m2 |
| Contrast ratio | 1000:1 |
| Viewing angle | 89/89/89/89 |
| Touch type | Capacitive touch screen |
| Touch interface | USB, drive-free |
| Touch response | <=5 ms |
| Surface hardness | Mohs 7 |
| Signal input | HDMI + VGA |
| Power connector | DC 5521 |
| Max power | <=30 W |
| Operating temperature | -20 C to 70 C |
| Storage temperature | -20 C to 70 C |
| Dimension | Confirm before publishing exact outer dimension |
| Mounting | VESA 100 x 100 mm |
Typical Applications
Typical use cases include industrial HMI, kiosk systems, control cabinets, automation equipment, inspection and testing equipment, commercial terminals and OEM machine interfaces.
Customization Options
EverGlory can support project-based customization for cover glass, surface treatment, touch tuning, cable length, brightness, interface, mounting structure and product appearance. Share your installation space, controller interface, brightness requirement, operating environment and estimated quantity for evaluation.
Related Product Options
- Standard industrial touchscreen monitor series
- Touch screen monitor category
- Outdoor high brightness touchscreen monitor
- Embedded industrial touchscreen monitor selection guide
FAQ
Why choose 18.5 inch instead of 15.6 inch?
Choose 18.5 inch when operators need a larger touch area for process screens, alarms or parameter setting, but the machine still cannot accept a 21.5 inch display.
Why is the exact outer dimension not listed?
The local specification file shows a placeholder for the outer dimension, so EverGlory can confirm the final drawing before quotation or production.
Request a Quote
Send your size, mounting drawing, interface, brightness, touch requirements, operating environment and order quantity to EverGlory for a custom industrial touch monitor quote.
18.5 Inch Industrial Touch Screen Monitor for Control Panels Engineering Information
18.5 Inch Industrial Touch Screen Monitor for Control Panels is a 18.5 inch industrial touch screen monitor for industrial HMI, kiosk, POS, medical, control and commercial equipment projects. It should be reviewed with display input, touch interface, mounting, enclosure, power and operating environment so Ever Glory can confirm integration risk before sampling or quotation.
- Product Category
- Touch Screen Monitor
- Product Role
- industrial touch screen monitor
- Size / Format
- 18.5 inch
- Best Fit
- industrial HMI, kiosk, POS, medical, control and commercial equipment projects
- Review Focus
- display input, touch interface, mounting, enclosure, power and operating environment
- Customization
- Cover glass, touch tuning, mounting structure, interface configuration, branding, bonding and enclosure fit
Information Needed for Review
- Mechanical drawing, target installation space and 18.5 inch display or housing requirement.
- display input, touch interface, mounting, enclosure, power and operating environment.
- Operating environment, brightness, temperature, IP rating, vibration, cleaning or glove-touch expectations.
- Target quantity, certification needs, cable direction, connector position and production schedule.
Typical Applications
OEM equipment, kiosks, self-service terminals, medical devices, POS systems and industrial control interfaces.
Suitable for projects that need stronger enclosure design, stable touch performance and long-term field reliability.
This page is positioned under Touch Screen Monitor, helping buyers compare related Ever Glory products with clearer engineering context.
Common Engineering Questions
Is this industrial touch screen monitor ready for direct installation?
It depends on the final enclosure, interface, power, mounting and software environment. Ever Glory reviews the drawings and application before confirming a production-ready solution.
What information helps confirm feasibility faster?
Send display input, touch interface, mounting, enclosure, power and operating environment, mechanical drawings, operating environment, target quantity and any branding or certification requirements.
Can Ever Glory customize this product?
Yes. Common customization includes cover glass, touch controller tuning, bonding, brightness, interface, housing, cable direction, logo printing and mounting structure.
For an accurate quotation, send drawings and application details instead of only screen size.
